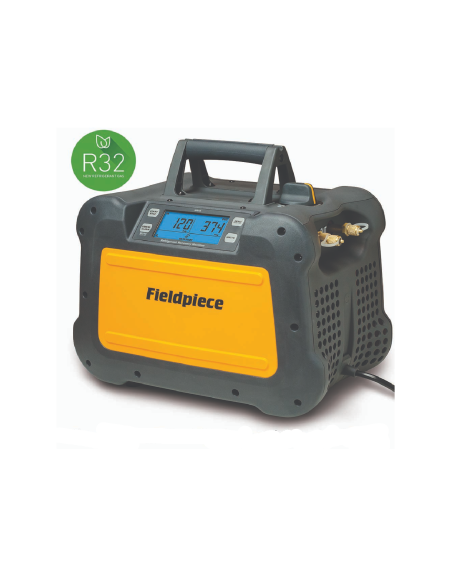

High performance recuperator with digital display; 1 HP (0.75 kW) "intelligent" variable speed DC motor.
The Fieldpiece MR45 high-performance recuperator features a built-in monitoring system that adjusts motor performance to handle liquid and run twice as fast on steam.
With a powerful 1 HP motor and large capacitor, this machine excels at longer, hotter jobs.
The easy-to-read display, light weight (10 kg), straight inlet/outlet connections, facing outwards and higher than the ground, and single display make this recoverer easy to use and resistant to daily use, even in the rain.

Characteristics:
Lightweight (10kg)
The DC motor is compact and lightweight
Regular fluid recovery
Variable speed motor in "smart" mode maximizes performance
Rubber feet and motor mounts reduce noise and vibration
The 1 HP (0.75 kW) engine ensures speed and power
The microchannel condenser cools faster, especially on hot days
Active electronic monitoring protection system
Rubber casing protects components
Ceramic cylinders guarantee high resistance to abrasion
Long-lasting piston rings
Electronics protected in case of rain
Operating voltage between 200 and 250 V AC

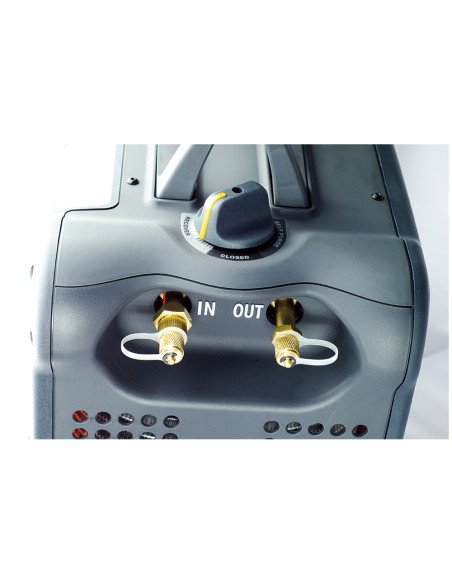

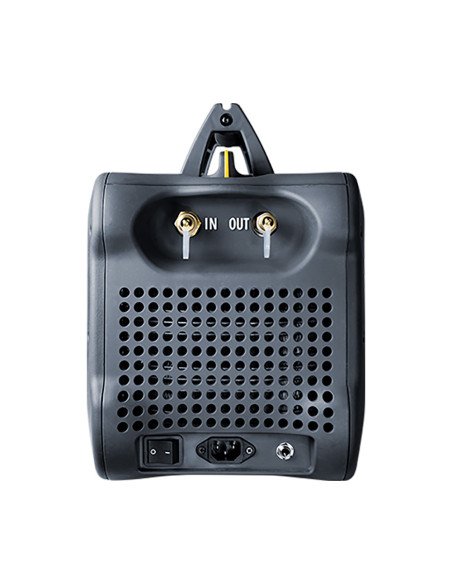

Improved inlet/outlet ports; ports face outwards for easy access and direct flow
The attacks are at higher ground level
Rubber bumpers protect valve attachments
The mesh filter remains in place when the hoses are removed
Large rubber-coated attachment selection knob
Digital display: large easy-to-read digits, status messages clarify operation, blue backlight is useful in low-light environments
Designed to withstand heavy workloads, in humid and sunny environments
The power cord can be stored on the handle, for easy handling and transport.
Space to attach the handle to lift the machine onto roofs
The automatic purge function protects both the recuperator and the environment

Technical specifications:
Display: Liquid crystal display (LCD) with 2 lines x 10000 counts and status messages
Backlight: Blue color
Measurement frequency 3.3 times per second
Operating range of the pressure sensor at the suction port: -76 cmHg to 4100 kPa
Operating range of the pressure sensor at the delivery connection: from -76 cmHg to 4100 kPa
High pressure cut-off: 3850 kPa, nominal
Resolution and unit of measurement: 5 kPa, 1 psig, 0.05 bar, 0.01 MPa
Pressure Sensor Accuracy: 1.3 cmHg, ± 0.5 “ Hg ± (0.6% of reading +14 kPa) Final Recovery Vacuum Rating 38 cmHg, 14.9” Hg Reciprocating Compressor Twin Cylinder (Oil Free)
Electric motor cc 1 HP - 0.75 kW (variable speed in "smart" mode)
Power supply: 190 to 255 VAC at 50/60 Hz single phase
Rated current draw: 7.0 A approx.
Filtering at the intake connection: 9 mm stainless steel mesh filter
Dimensions: 376mm x 250mm x 344mm
Weight: 10 kg
Operating environment: 0°C to 43°C
Storage environment: -20°C to 60°C

Approved refrigerants:
R32*
R134A
R1234yf*
R1234ze*
R404A, R407A, R407B, R407C, R407F, R407H
R410A
R417A, R422D, R422B, R422A, R438A etc.
R448A, R449A, R452A, R450A
R452B*, R454A*, R455A*, R454B*, R454C*, R507, R513A, R515B

*Class A2L refrigerant (mildly flammable)
