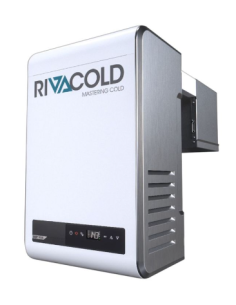

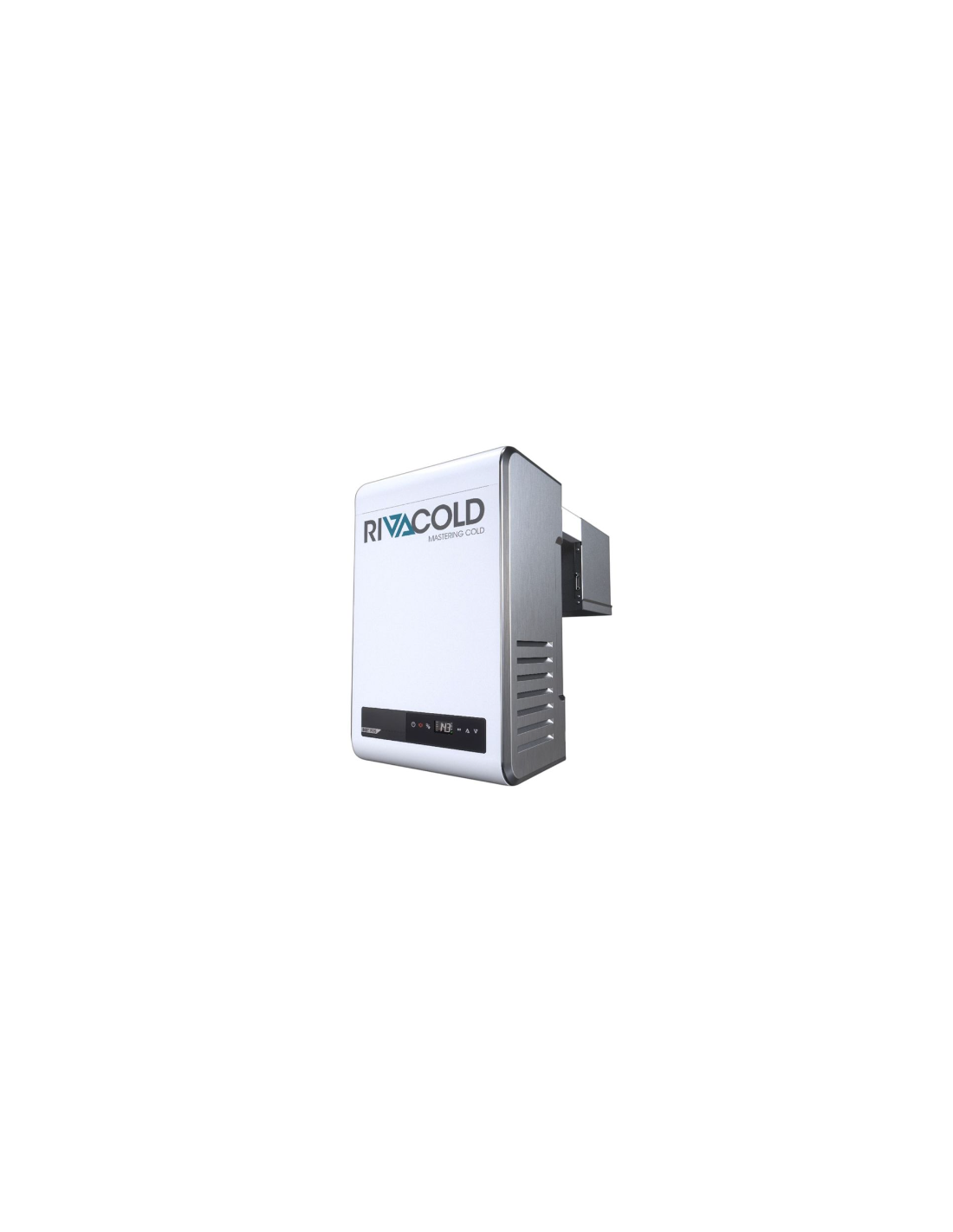

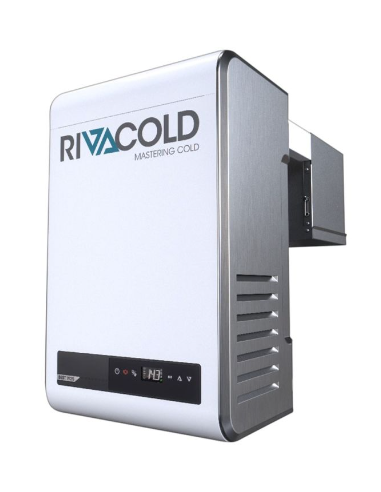

The BEWS302LA50P12-31.9m³  is a compact refrigeration unit designed for low-temperature cold rooms (LBP), ideal for storing frozen products. It uses the natural refrigerant R290, ensuring a low environmental impact and high energy efficiency.

The wall-mounted, stacked configuration allows for quick and easy installation. The unit is equipped with two three-phase Embraco hermetic compressors, ensuring continuous operation and reliable performance even in harsh environmental conditions.

The system features hot gas defrosting, electronic fan motors on the condenser and evaporator, and a mechanical thermostatic valve as standard, ensuring temperature stability and reduced energy consumption. The Riv-olution electronic control system allows for precise management of the unit, integrating advanced safety and diagnostic functions.

Robust, quiet and easy to maintain, the BEWS302LA50P12 is the ideal solution for professional applications requiring low temperature, reliability and high performance.

Technical features

General characteristics

• Code BEWS302LA50P12-31.9m³

• BEWS Series

• LBP Application

• R290 refrigerant gas

• Compact Type

• Overlapping Version

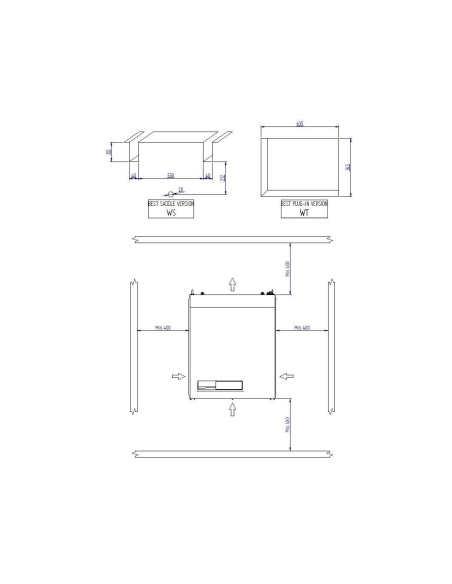

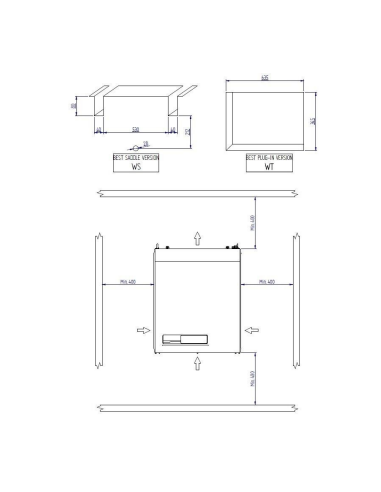

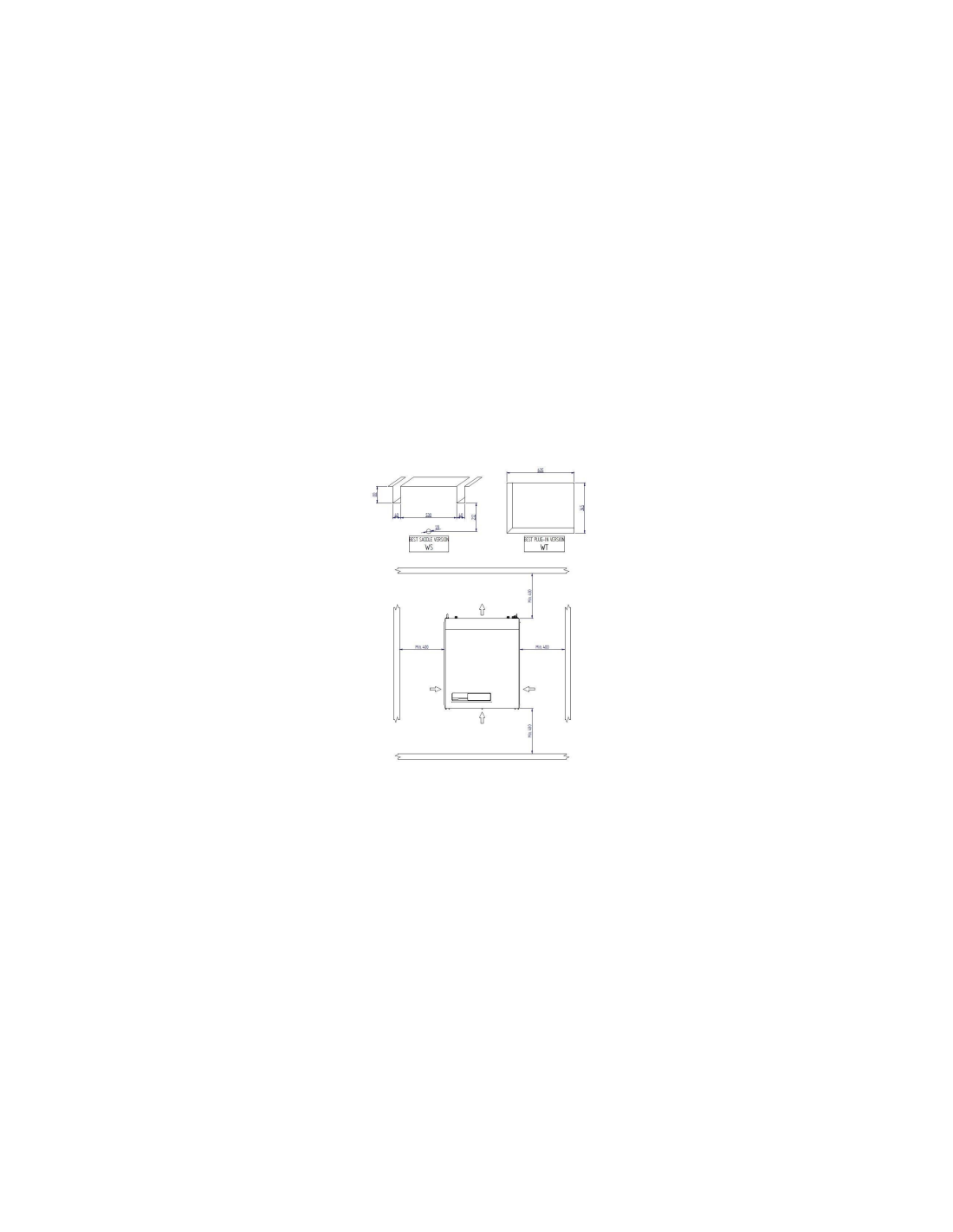

• Wall Mounting

• Expansion Valve

• Air Exchange

• Hot gas defrosting

• PED 0

• Noise level 34.50 dBA at 10 m

Compressor

• Number of compressors 2

• Compressor type: Hermetic

• Embraco compressor brand

• Compressor voltage 400/3/50

• Compressor displacement 2 × 21 cm³

Capacitor

• Number of fans 1

• Fan diameter 300 mm

• Condenser air flow rate 1200 m³/h

Evaporator

• Number of fans: 2

• Fan diameter 200 mm

• Air arrow 6.50 m

• Evaporator air flow rate 1000 m³/h

Absorptions

• Power consumption 1295 W

• Current consumption 2.30 A

• Maximum current 4.40 A

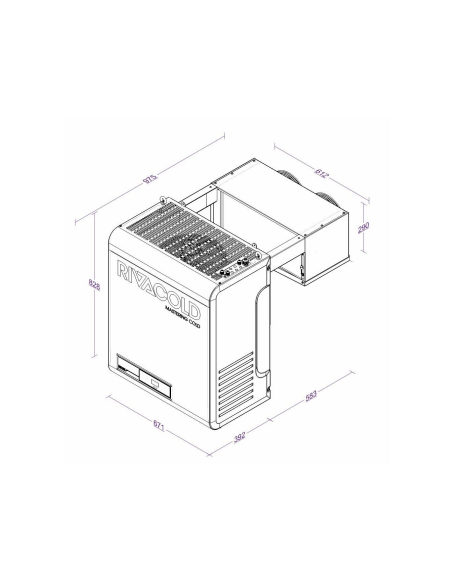

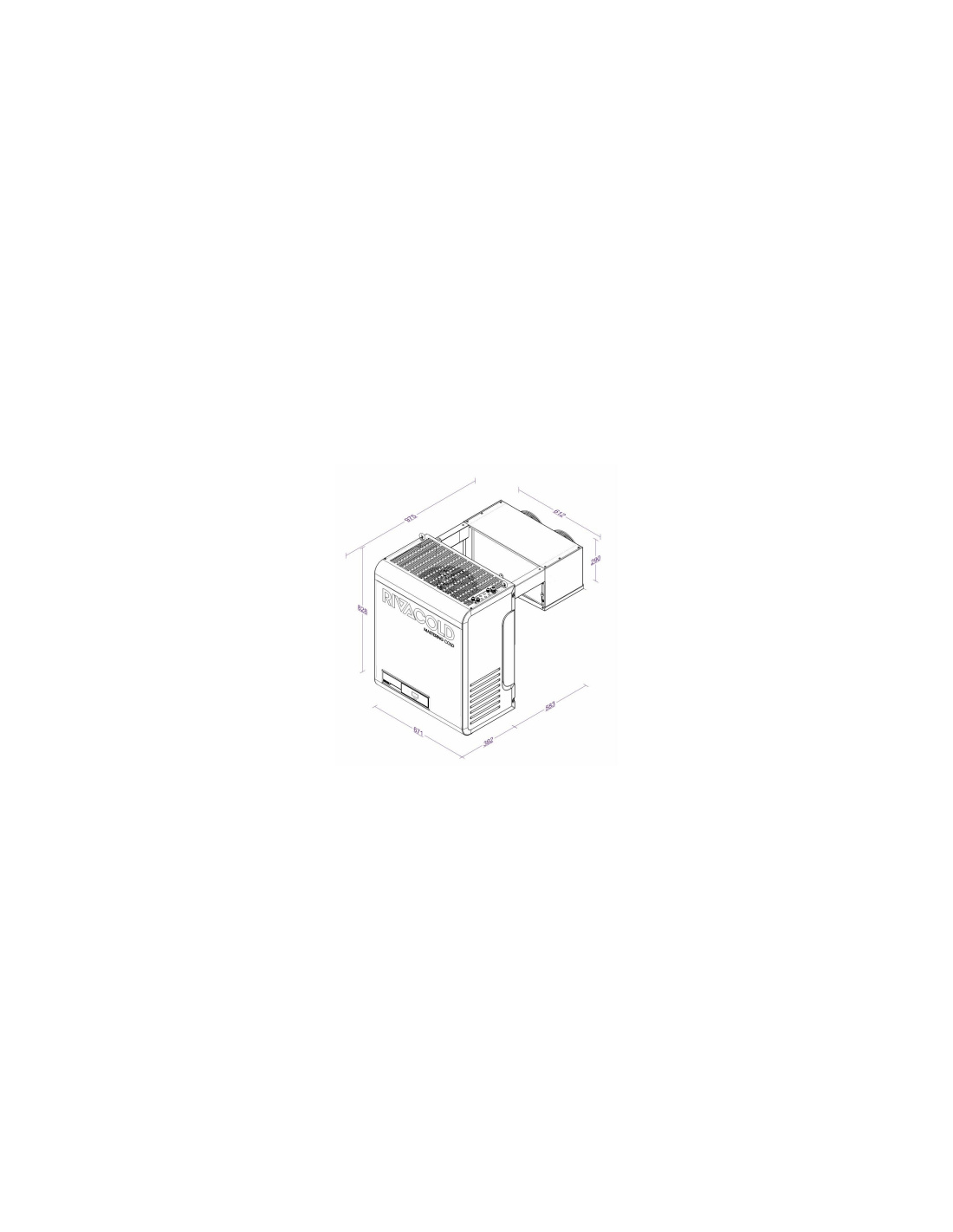

Dimensions

• Width 671 mm

• Depth 975 mm

• Height 828 mm

Packaging dimensions

• Packaging width 765 mm

• Packaging depth 1070 mm

• Packaging height 895 mm

Weight

• Net weight 81 kg

• Gross weight 103 kg

REFRIGERATION PERFORMANCE

Field of use

• Ambient temperature 25°C to 43°C

Cell temperature

• From -25 °C to -10 °C

Indicative cell volume

• From 6.10 m³ to 69.20 m³

Refrigeration capacity

• From 1158 W to 2320 W

Terms of reference

• Data valid with forced air

• Suction gas +20 °C

• Subcooling 0 K

• Overheating 100%
