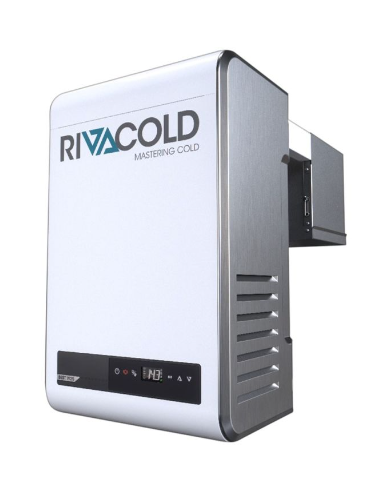

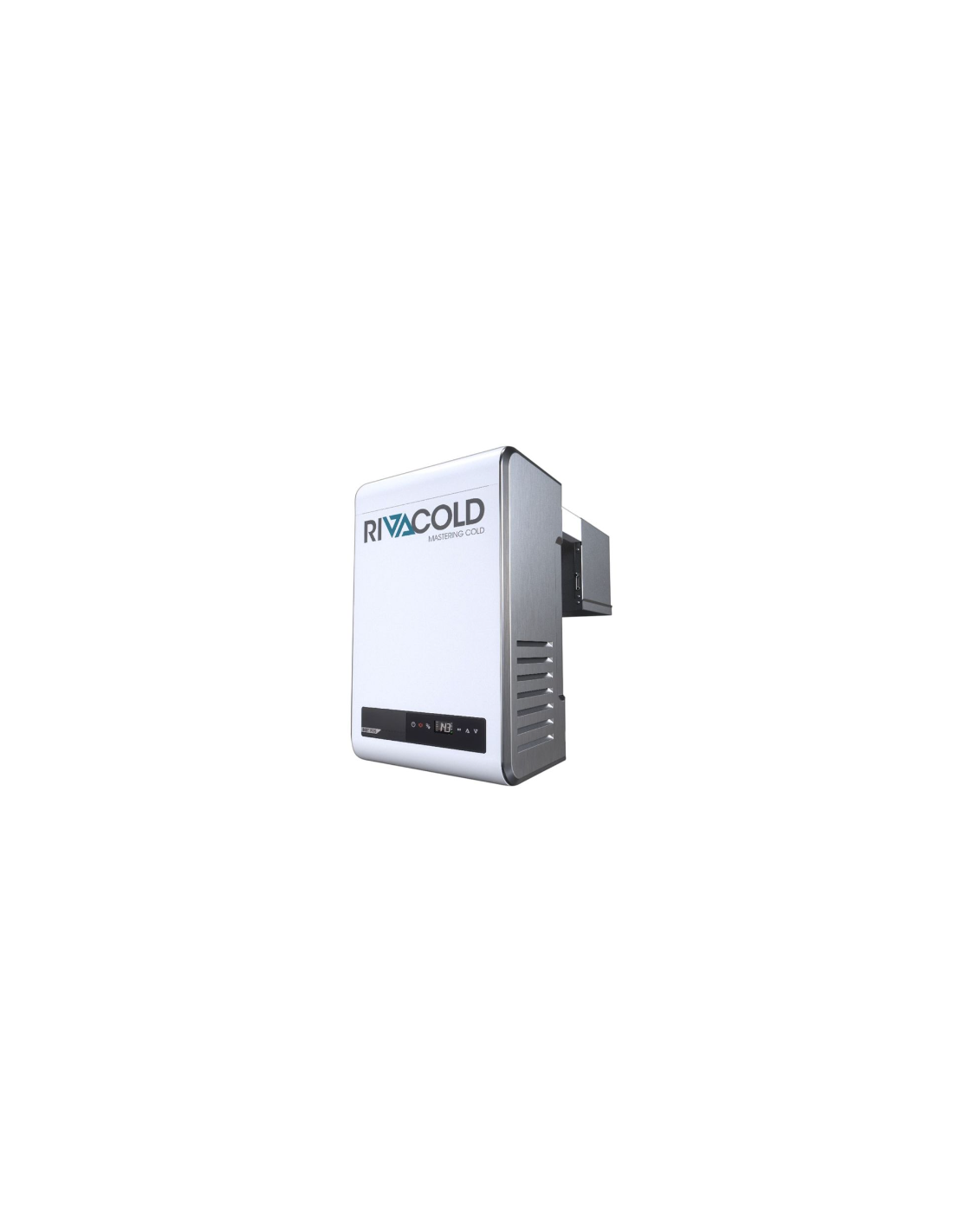

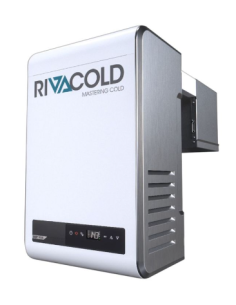

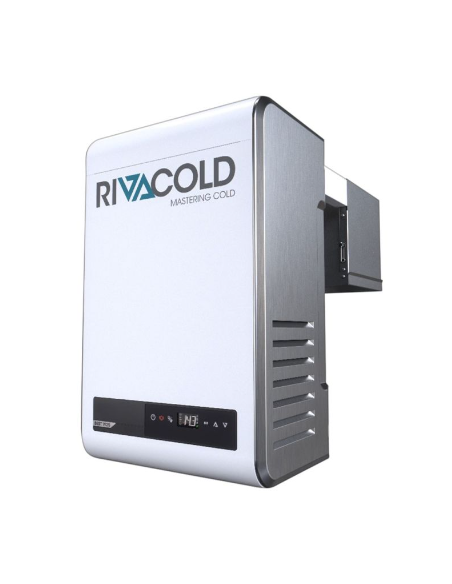

The BEWS352MA60P12 - 41.5m³ monoblock is designed for MBP applications and uses the environmentally friendly refrigerant R290, ensuring high performance and respect for the environment. Ideal for high temperatures (–5°C / +15°C), it can handle rooms up to 203 m³, with a maximum ambient temperature of up to 38°C for rooms with temperatures above 10°C.

The model features EMBRACO hermetic compressors with thermal protection and a mechanical thermostatic valve, a condenser and evaporator with internal helical tubes for optimal heat exchange, and electronic fans on the condenser and evaporator. Hot gas defrosting ensures continuous operation without loss of performance.

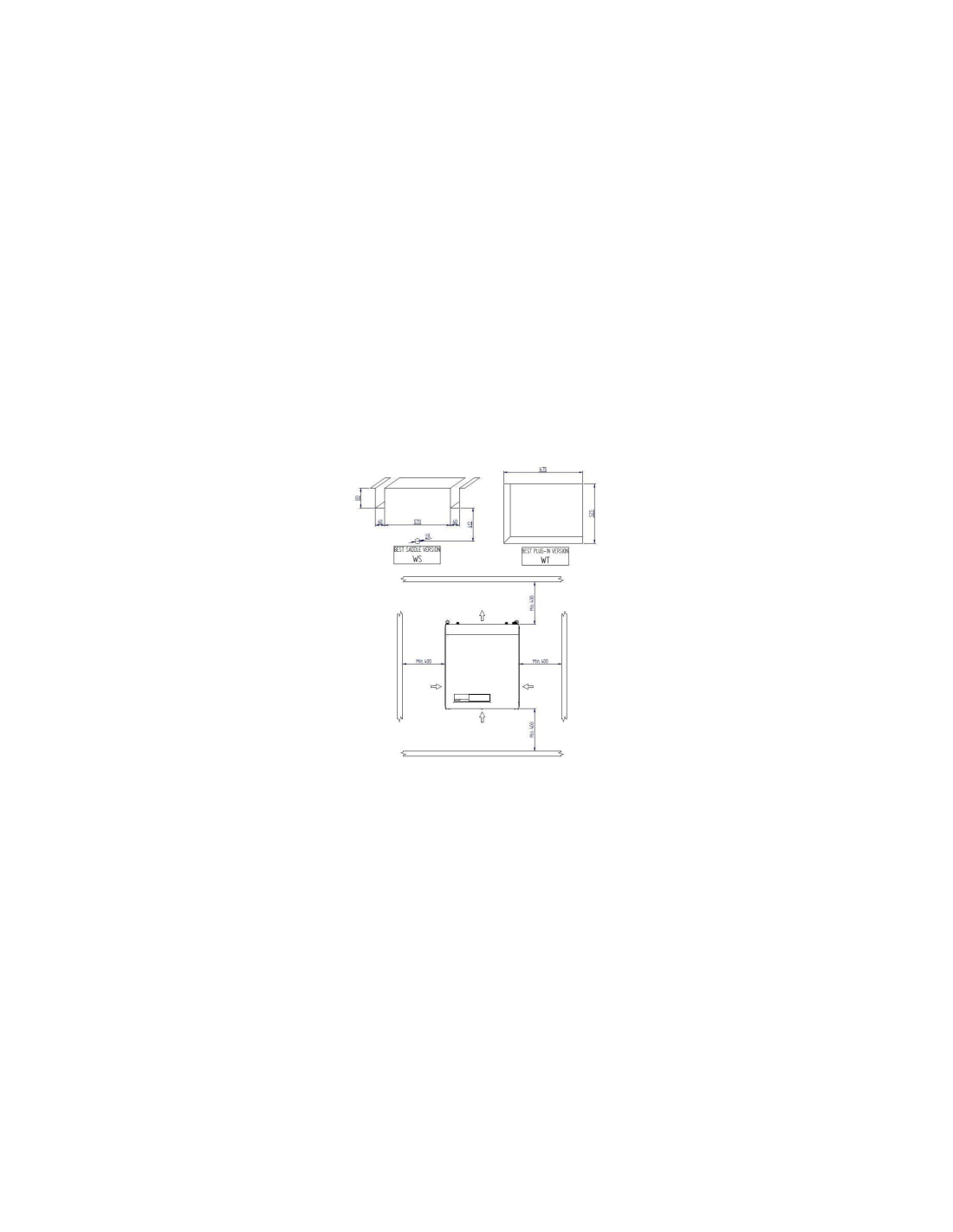

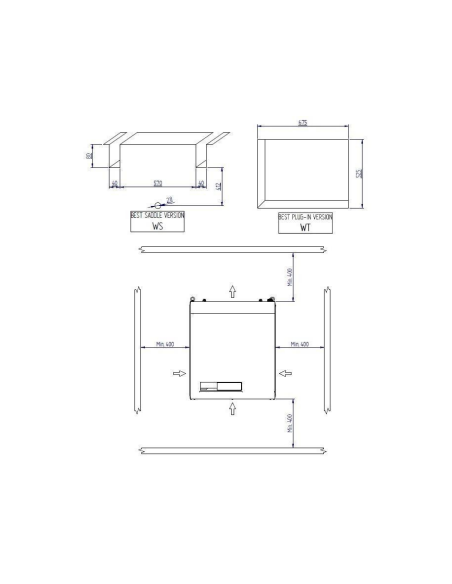

The monoblock is wall-mounted, compact overlapped version, with a self-supporting frame in galvanized sheet metal and easily removable fairing for quick inspection and maintenance.

The Riv-olution electronic control includes a backlit LED display, capacitive keypad, Smart Defrost and Leak Detection functions, and the option to connect to a BMS via Modbus RTU. Numerous optional features are available, such as a buffer kit, cable extension, remote control panel, Master & Slave setup, and IoT service for remote monitoring.

The BEWS352MA60P12 monoblock combines high performance, ease of installation and maintenance, making it the ideal solution for high-temperature rooms in commercial and industrial environments.

Technical features:

Code: BEWS352MA60P12
Series: BEWS
Application: MBP
Refrigerant gas: R290
Type: Compact
Version: Overlapping
Mounting: Wall
Expansion: Valve
Exchange: Air
Defrosting: Hot gas
PED: 0
Noise level: 39.20 dBA at 10 m

Compressor

• Number of compressors: 2

• Compressor type: Hermetic

• Compressor brand: EMBRACO

• Compressor voltage: 400/3/50

• Compressor displacement: 2 × 18.7 cm³

Capacitor

• Number of fans: 1

• Fan diameter: 350 mm

• Condenser air flow rate: 2540 m³/h

Evaporator

• Number of fans: 1

• Fan diameter: 350 mm

• Air arrow: 8.00 m

• Evaporator air flow rate: 2740 m³/h

Absorptions

• Power consumption: 1680 W

• Current draw: 3.00 A

• Maximum current: 5.20 A

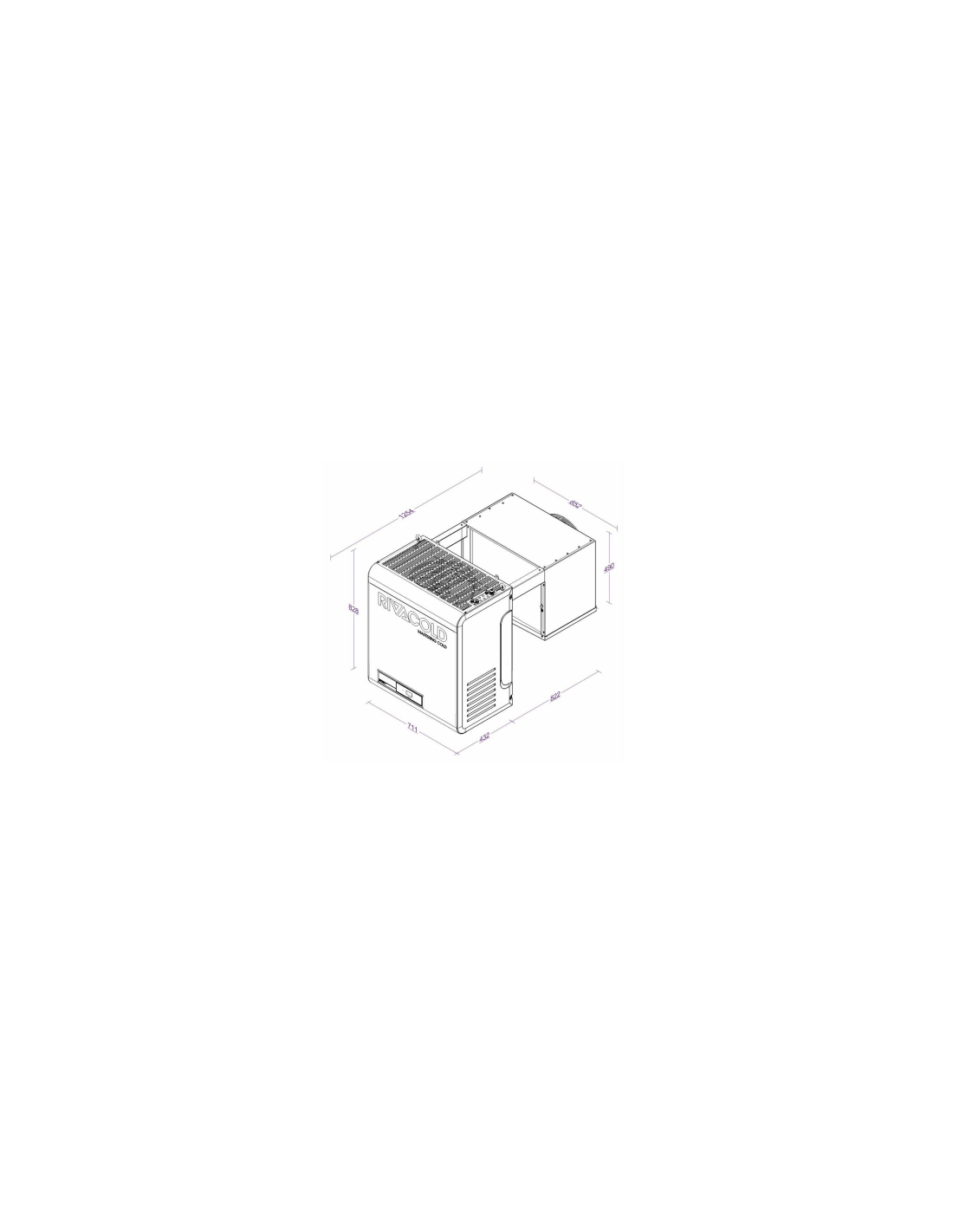

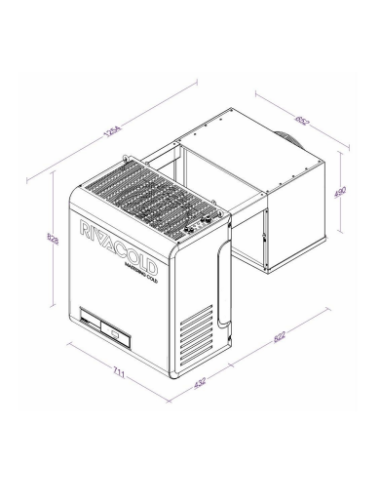

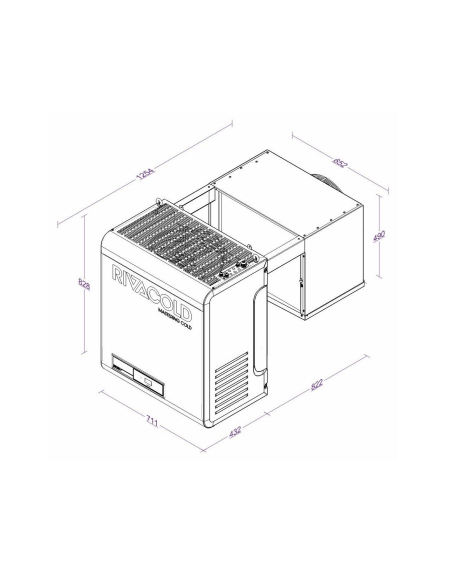

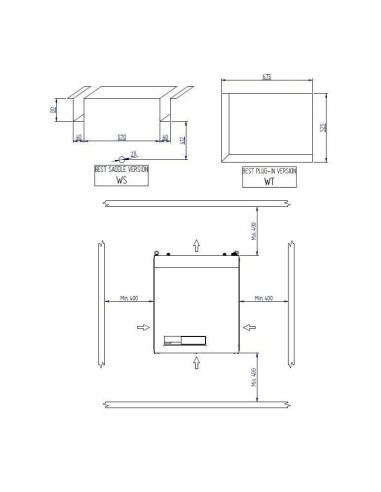

Dimensions

• Width: 711 mm

• Depth: 1254 mm

• Height: 828 mm

Packaging dimensions

• Packaging width: 845 mm

• Packaging depth: 1370 mm

• Packaging height: 980 mm

Weight

• Net weight: 92 kg

• Gross weight: 121 kg

Temperature class: High temperature (AT)

Refrigeration performance:

• Cell temperature: –5 °C / +15 °C

• Ambient temperature: up to 38°C (for cells >10°C)

• Indicative cell volume: from 36.30 m³ to 203.00 m³

• Cooling capacity: from 2,850 W to 4,814 W

• Reference conditions: data valid with forced air
