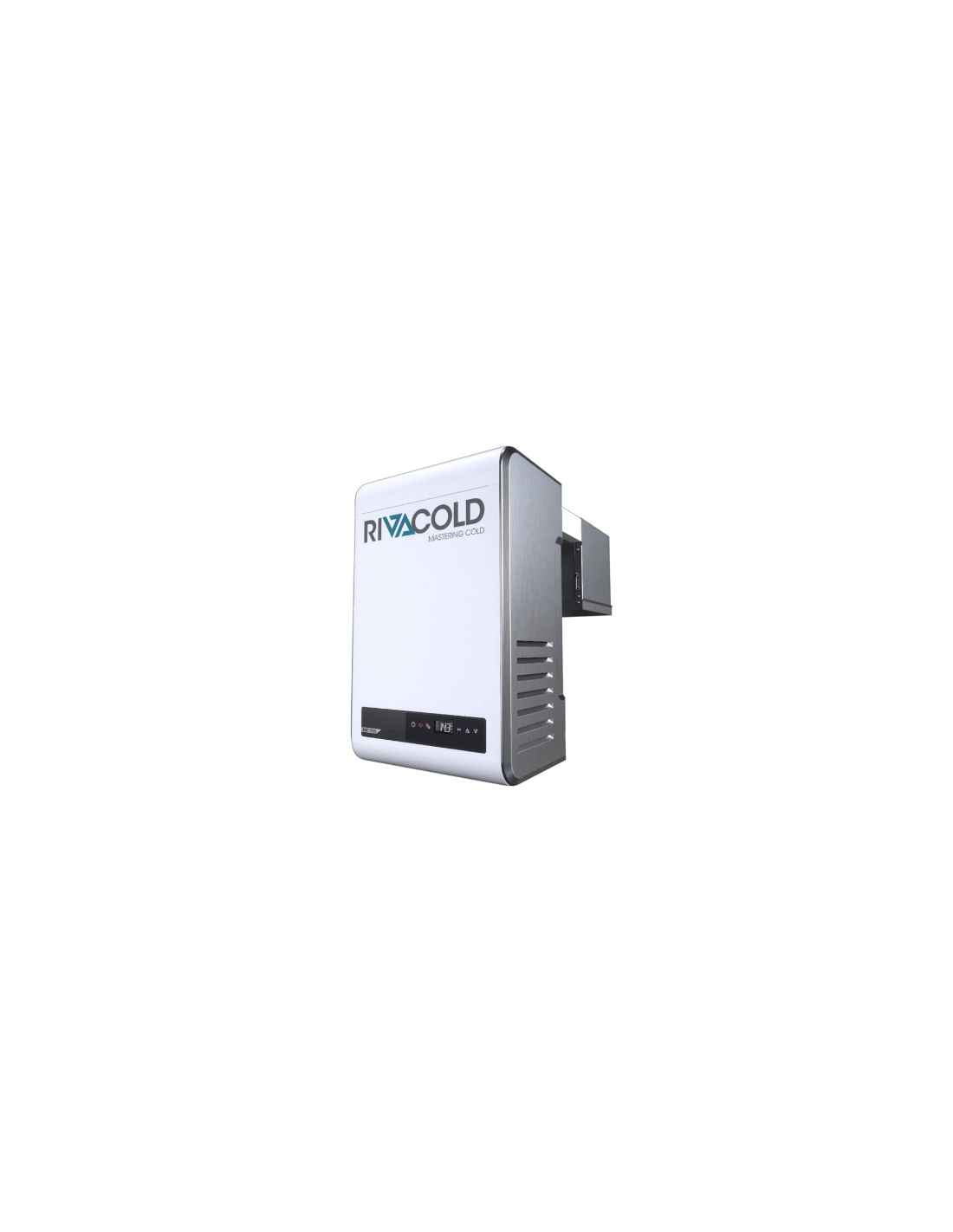

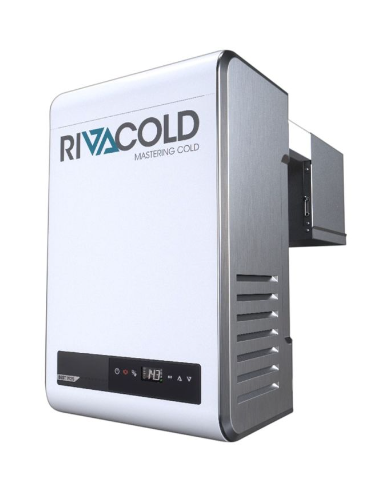

The BEWS302MA50P11-31.9m³     is a compact refrigeration monoblock designed for medium temperature cold rooms (MBP), with natural refrigerant R290 for energy efficiency and environmental respect.

Equipped with two Embraco hermetic compressors, a stacked configuration, and wall mounting, this model offers high cooling performance of up to 3842 W with low noise levels (34.30 dBA at 10 m). The system uses high-efficiency electronic fans on the condenser and evaporator, supported by hot gas defrost and a mechanical thermostatic valve.

Management is entrusted to the Riv-olution electronic control, which guarantees precision operation and safety features such as Smart Defrost and Leak Detection. The robust structure with easily removable casing allows quick access to components for inspection and maintenance.

The BEWS302MA50P11 is ideal for commercial and professional applications requiring large volumes of medium-temperature storage, with reliable performance and an excellent power-to-consumption ratio.

Technical features:

General characteristics

• Code BEWS302MA50P11

• BEWS Series

• MBP Application

• R290 refrigerant gas

• Compact Type

• Overlapping Version

• Wall Mounting

• Expansion Valve

• Air Exchange

• Hot gas defrosting

• PED 0

• Noise level 34.30 dBA at 10 m

Compressor

• Number of compressors 2

• Compressor type: Hermetic

• Embraco compressor brand

• Compressor voltage 230/1/50

• Compressor displacement 2 × 16.8 cm³

Capacitor

• Number of fans 1

• Fan diameter 300 mm

• Condenser air flow rate 1200 m³/h

Evaporator

• Number of fans: 2

• Fan diameter 200 mm

• Air arrow 6.50 m

• Evaporator air flow rate 1000 m³/h

Absorptions

• Power consumption 1490 W

• Current draw 8.10 A

• Maximum current 10.60 A

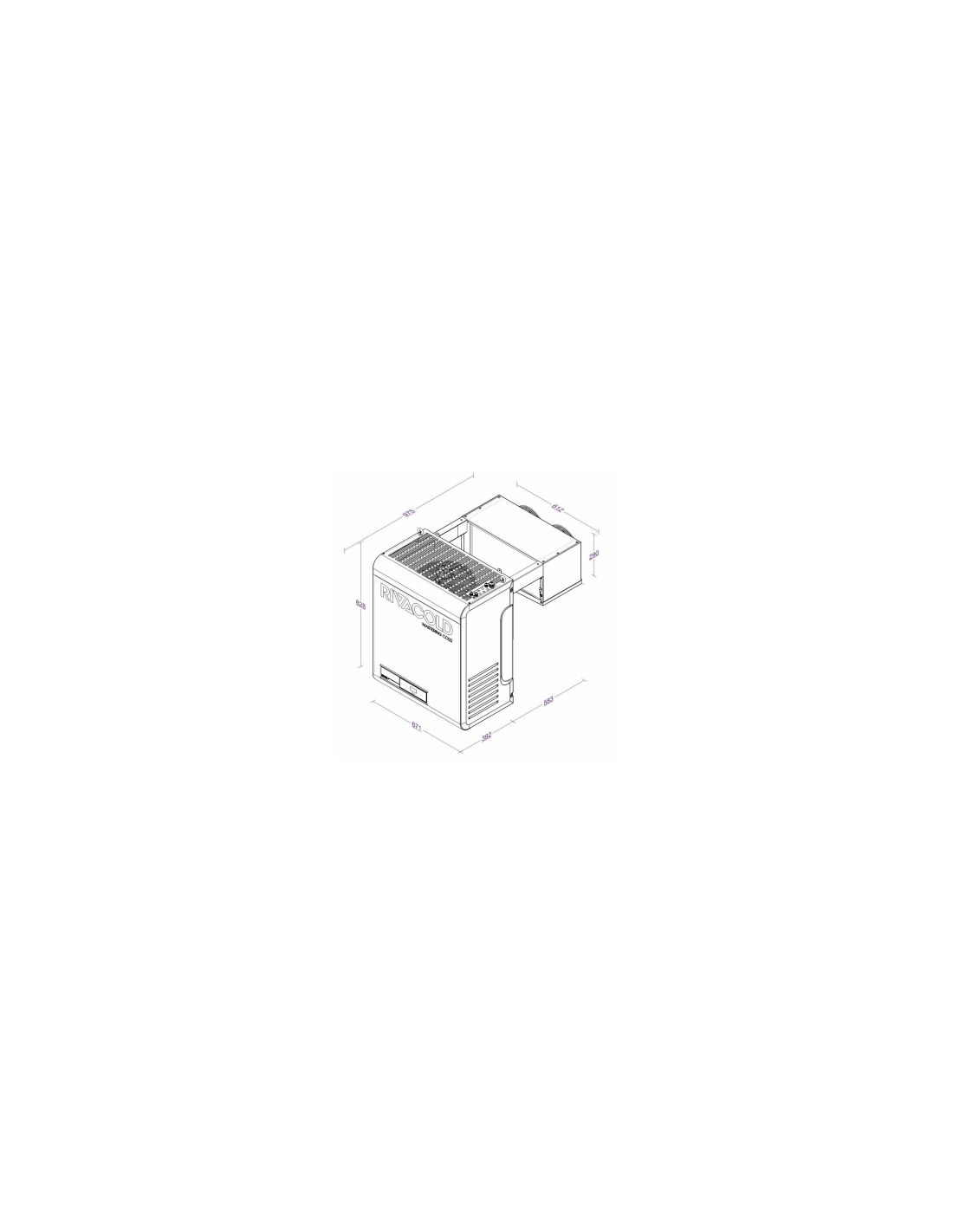

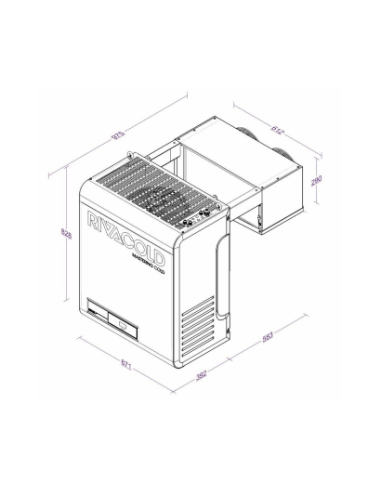

Dimensions

• Width 671 mm

• Depth 975 mm

• Height 828 mm

Packaging dimensions

• Packaging width 765 mm

• Packaging depth 1070 mm

• Packaging height 980 mm

Weight

• Net weight 81 kg

• Gross weight 103 kg

REFRIGERATION PERFORMANCE

Field of use

• Ambient temperature 25°C to 43°C

• For cell temperature >10°C, maximum ambient temperature +38°C

Cell temperature

• From –5 °C to +15 °C

Indicative cell volume

• From 11.4 m³ to 159.0 m³

Refrigeration capacity

• From 1939 W to 3842 W

Terms of reference

• Data valid with forced air

• Suction gas: +20 °C

• Subcooling: 0 K

• Overheating: 100%
