The BEWS301MA40P11-23.9m³  is a compact, high-performance refrigeration monoblock designed for medium-temperature cold rooms (MBP). It uses the natural refrigerant R290, ensuring low environmental impact and high energy efficiency.

The wall-mounted, stacked configuration allows for quick and easy installation, while the 27.8 cm³ Embraco hermetic compressor ensures high cooling capacity even in challenging ambient conditions. The hot gas defrost system, electronic fan motors on the condenser and evaporator, and the standard mechanical thermostatic valve ensure reliability and continuity of operation.

The Riv-olution electronic control offers precise operation management, with advanced safety and diagnostic functions. The robust structure, with an easily removable fairing, facilitates inspection and maintenance operations.

The BEWS301MA40P11 represents the ideal solution for professional applications that require power, silence and reliability, while maintaining high standards of safety and ease of use.

Technical features

General characteristics

• Code BEWS301MA40P11-23.9m³

• BEWS Series

• MBP Application

• R290 refrigerant gas

• Compact Type

• Overlapping Version

• Wall Mounting

• Expansion Valve

• Air Exchange

• Hot gas defrosting

• PED 0

• Noise level 36.50 dBA at 10 m

Compressor

• Number of compressors 1

• Compressor type: Hermetic

• Embraco compressor brand

• Compressor voltage 230/1/50

• Compressor displacement 27.80 cm³

Capacitor

• Number of fans 1

• Fan diameter 300 mm

• Condenser air flow rate 1200 m³/h

Evaporator

• Number of fans: 2

• Fan diameter 200 mm

• Air arrow 6.50 m

• Evaporator air flow rate 1000 m³/h

Absorptions

• Power consumption 1200 W

• Current consumption 6.50 A

• Maximum current 8.80 A

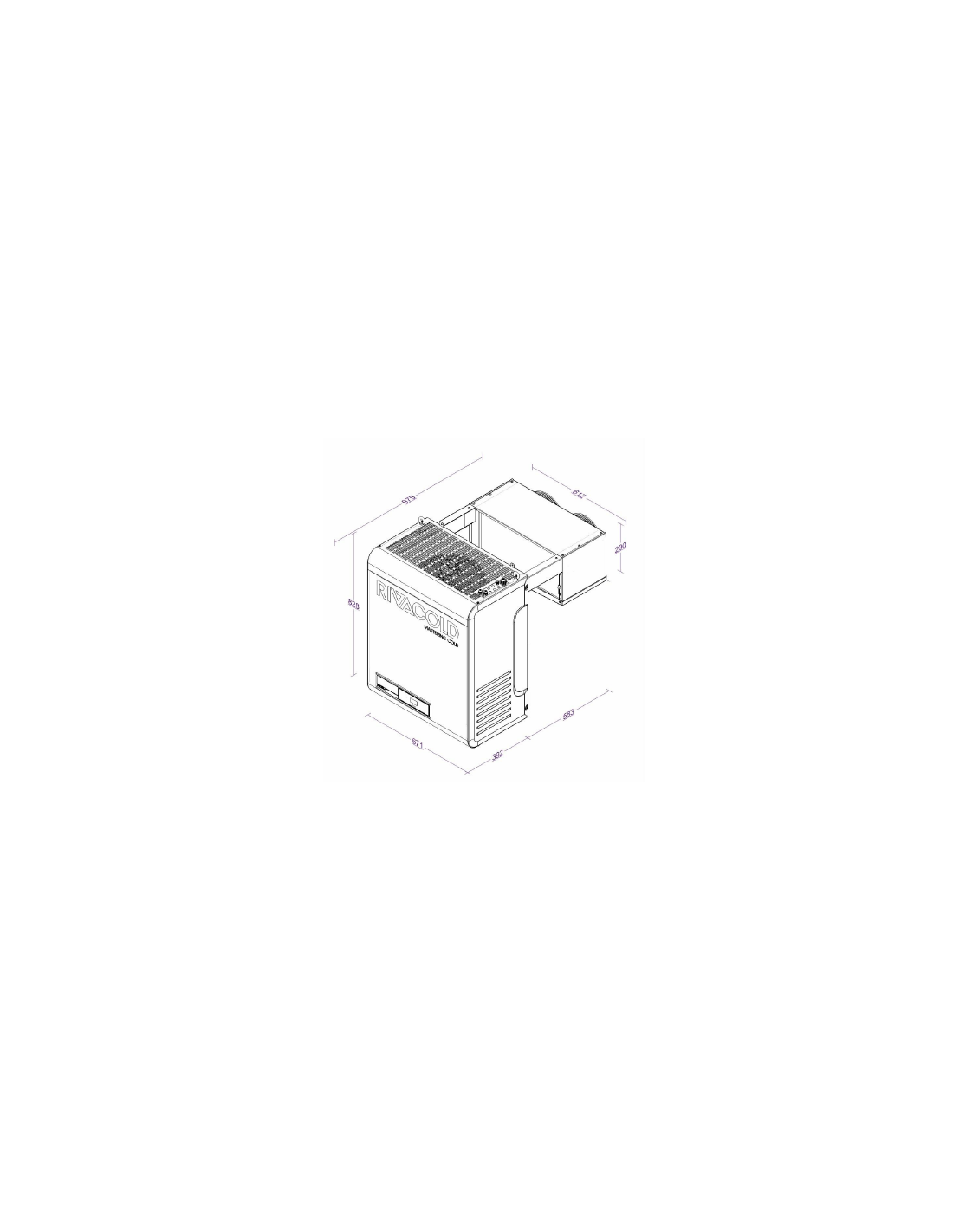

Dimensions

• Width 671 mm

• Depth 975 mm

• Height 828 mm

Packaging dimensions

• Packaging width 765 mm

• Packaging depth 1070 mm

• Packaging height 980 mm

Weight

• Net weight 65 kg

• Gross weight 86 kg

REFRIGERATION PERFORMANCE

Field of use

• Ambient temperature 25°C to 43°C

• For cell temperature >10°C, maximum ambient temperature +38°C

Cell temperature

• From -5 °C to +15 °C

Indicative cell volume

• From 8.40 m³ to 124.00 m³

Refrigeration capacity

• From 1541 W to 3069 W

Terms of reference

• Forced air

• Suction gas +20 °C

• Subcooling 0 K

• Overheating 100%
