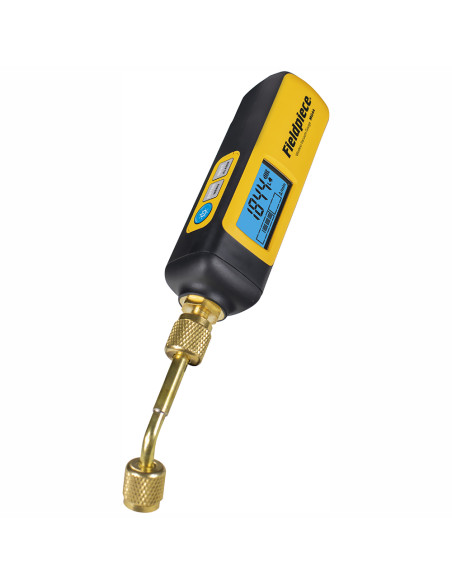

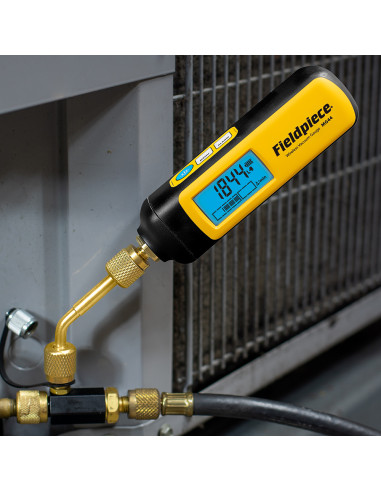

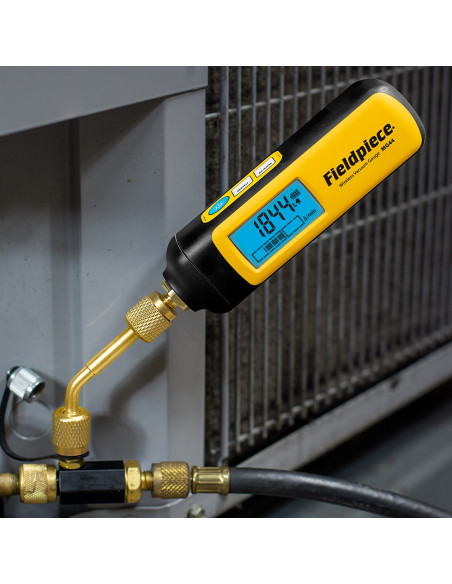

VACUUM GAUGE (VACUUM GAUGE) MG44INT - ROBUST, ACCURATE AND WIRELESS

Allows you to perform safe vacuuming with a reliable, leak-proof seal.
Thanks to the reversible angled coupler and the new cylindrical shape it easily fits into tight spaces.
Three modes of use, display:
- up to 300 meters away via the Job Link® mobile app
- on a Fieldpiece SMAN™ refrigerant manifold
- directly on the MG44 display.

Technical specifications:
Minimum device requirements: BLE 4.0 devices with iOS® 7.0 or Android™ 5.0 (latest compatibility at www.fieldpiece.com)
Connector type: 1/4" SAE male fitting
Accuracy: ±(5% of reading + 5 microns) at 25°C, 50 to 1000 microns
Range and units: 50 to 25000 microns of mercury (English), 6 to 3333 Pascal (metric), 0.06 to 33.33 mBar (metric), 50 to 25000 mTorr (metric), 0.05 to 25 Torr (metric, equivalent to mmHg)
Optimal resolution: 1 micron of mercury (less than 2000 microns), 1 Pascal (less than 250 Pascal), 0.001 mBar (less than 2.5 mBar), 1 mTorr (less than 2000 mTorr), 0.001 Torr (less than 2.5 Torr, equivalent to mmHg)
Battery type: 2 x AA alkaline, NEDA 15A, JIS UM3, IEC LR6
Battery life: 40 hours typical on an alkaline battery
Auto Power Off: 15 minutes default (APO adjustable)
Wireless range: 305 meters in straight line. Obstructions will affect distance
Radio frequency: 2.4GHz
Water resistance: IP55
Operating temperature: -10°C to 50°C at <75% RH
Storage Temperature: -20°C to 60°C at <80% RH (with batteries removed)
Weight: 300 grams
