- New
Pressure & Temperature Test Kit with 4 Probes
Fieldpiece USA - JL3KR4 - Pressure & Temperature Test Kit with 4 Probes (Job Link Wireless System)
Description
Easy to use, long range, powerful; Job Link probes allow you to get a complete snapshot of your system quickly and easily.
Each model is designed to offer agility and speed.
The pressure probe can be used in tight spaces. The pipe clamp uses a new Rapid Rail thermocouple that ensures accuracy, speed and agility even with the most complex pipe configurations. The psychrometer’s thin, flexible probe and configurable magnet make it easy to measure on supply plenums, pipes or high-level dampers.

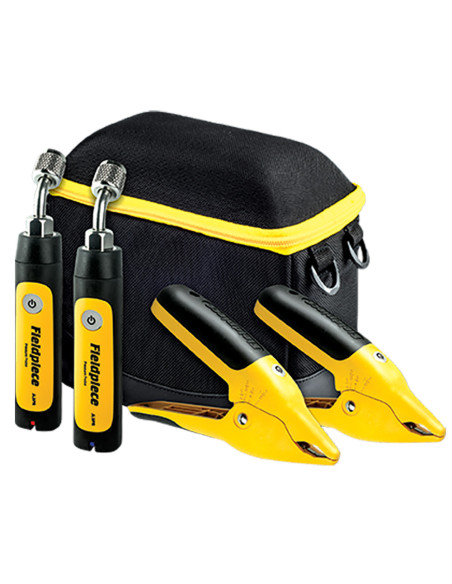

Job Link Charge Test Kit - JL3KR4 consisting of:
2pcs JL3PC Temperature Measurement Tube Clamps
2 JL3PR pressure probes
1 padded protective case

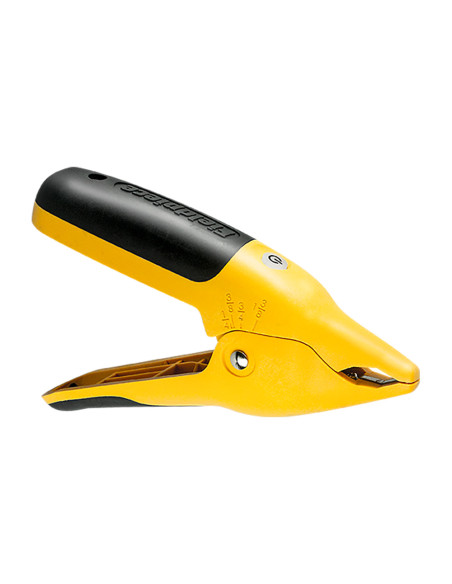

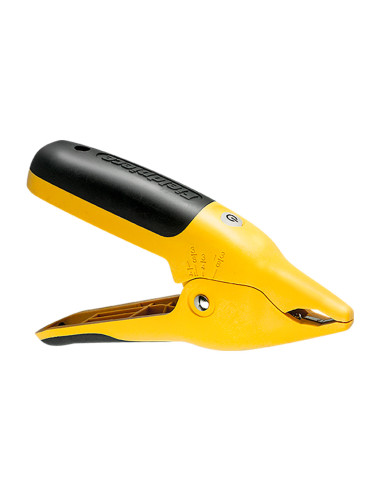

JL3PC - Temperature Probe Specifications:
Battery type: 2 AAA
Battery life: 150 hours with typical alkaline battery
The LED flashes red when the battery needs to be replaced.
Water resistant: Designed for IP55
Wireless range: 106 meters field of view (distance decreases with obstacles in between)
Operating environment: 0°C to 50°C with relative humidity <75%
Pipe surface compatibility: electrically conductive
Pipe Size Compatibility: 1/4" to 3/8" (6.4mm to 34.9mm) OD
Sensor Type: Rapid Rail™ Thermocouple Sensor (Nickel Chrome/Nickel Aluminum)
Measuring range: -46°C to 125°C
Stabilization time: 3 seconds typical
Accuracy ±0.6°C

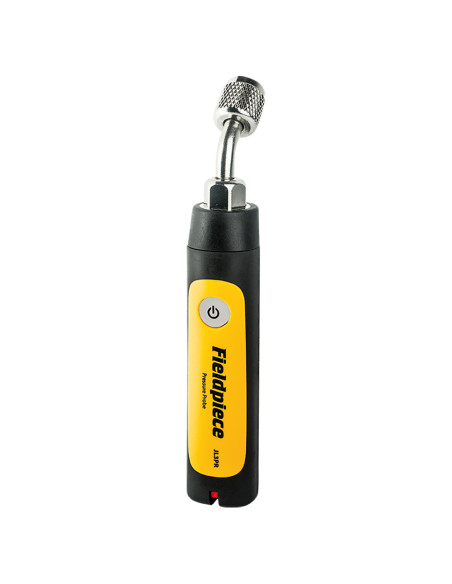

JL3PR - Pressure Probe Technical Specifications:
Battery type: 2 AAA
Battery life: 150 hours with typical alkaline battery
The LED flashes red when the battery needs to be replaced.
Water resistant: Designed for IP55
Wireless range: 106 meters field of view (distance decreases with obstacles in between)
Characteristics:
106 meters of wireless range
Compatible with Apple iOS® and Android™ systems
Water resistant
Email Reports
Quickly accessible case
Direct connection to the mobile device
