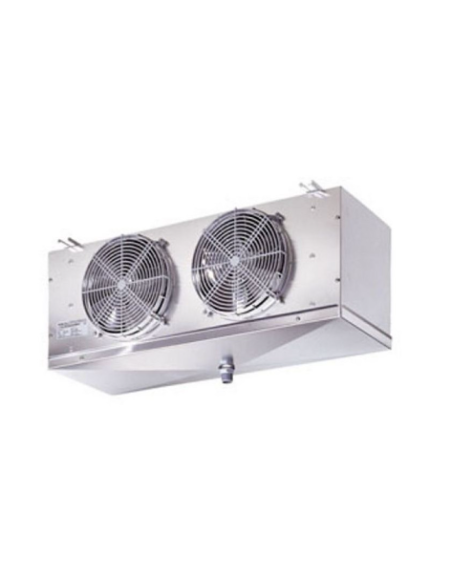

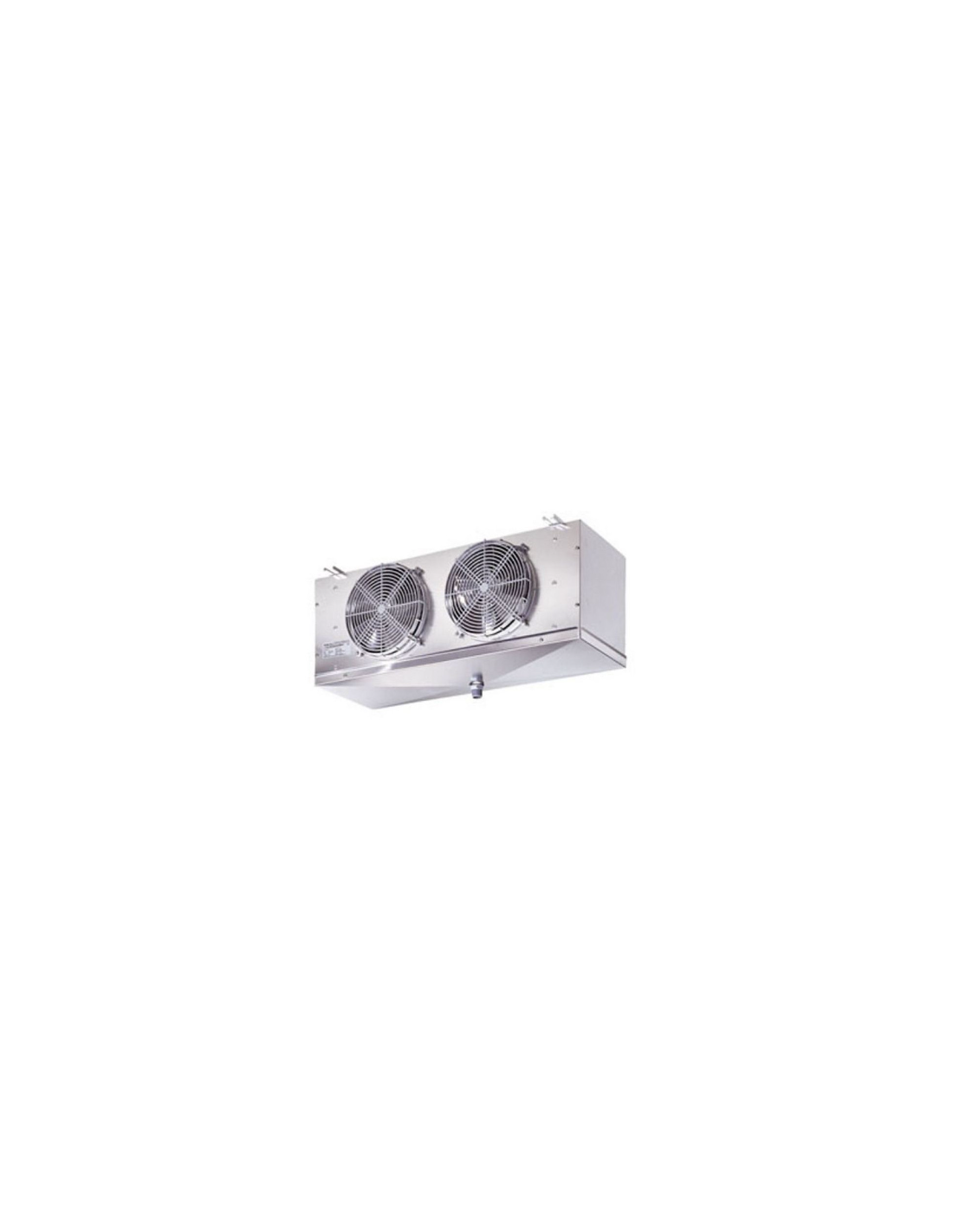

RIVACOLD RCS2250606ED CUBIC EVAPORATOR
RIVACOLD RCS2250606ED CUBIC EVAPORATOR
  • New
RIVACOLD RCS2250606ED CUBIC EVAPORATOR
RIVACOLD RCS2250606ED CUBIC EVAPORATOR

RIVACOLD RCS2250606ED CUBIC EVAPORATOR

€731.64

Rivacold RCS2250606ED cubic evaporator for medium temperature cold rooms (MBP), with 6 mm fin pitch coil, double ventilation and integrated electric defrost.

Reliable solution for uniform storage of fresh products.

Description

The Rivacold RCS2250606ED cubic evaporator is designed for installation in medium-temperature cold rooms (MBP) intended for the storage of fresh products in commercial and professional environments.

The coil with copper tubes and aluminum fins, characterized by a 6 mm fin pitch, guarantees an excellent balance between cooling capacity and heat exchange efficiency.

The double ventilation with shielded pole motor fans ensures uniform distribution of air inside the cell, limiting temperature differences.

The integrated electric defrost allows for reliable and continuous operation, while the compact structure makes the unit easy to install even in small spaces.

ADAPTABILITY
Medium Temperature Cold Storage (MBP)
Preservation of fresh produce
Ceiling installation
Commercial and professional systems
Applications requiring good yield and uniform ventilation

TECHNICAL CHARACTERISTICS

GENERAL DATA
Code: RCS2250606ED
Series: RCS
Model: Cubic
Application: MBP
PED: 0
Number of ranks: 6
Total area: 14.4 m²
Fin pitch: 6 mm

BATTERY STRUCTURE
Pipes: Copper
Fins: Aluminum
Circuit volume: 4.75 dm³

VENTILATION
Number of fans: 2
Type: Shielded Poles
Fan diameter: 254 mm
Air flow: 1576 m³/h
Air throw: 9 m
Speed: 1300 rpm

ELECTRICAL DATA
Power supply: 230 V / 1 / 50–60 Hz
Power consumption: 160 W
Current consumption: 0.7 A

DEFROSTING
Type: Electric
Power: 1350 W

CONNECTIONS
Inlet: 12 mm – 1/2" SAE
Exit: 16 mm
Exhaust: 1" GAS (33 mm)

WEIGHT
Net weight: 20.3 kg

COOLING OUTPUT (Gas R452A – ΔT 10 K)
−20 °C: 2816 W
−15 °C: 3000 W
−10 °C: 3278 W
−5 °C: 3065 W
0°C: 3298 W
2°C: 3361 W
4°C: 3382 W
6°C: 3426 W
8°C: 3619 W
10°C: 3729 W
12°C: 3817 W
15°C: 3949 W

Online sales of all RIVACOLD evaporators, including models not listed on the website. Contact us for availability and personalized quotes:

Email: info@polargross.com Tel. +39 070 543 5282 WhatsApp +39 344 506 7526
