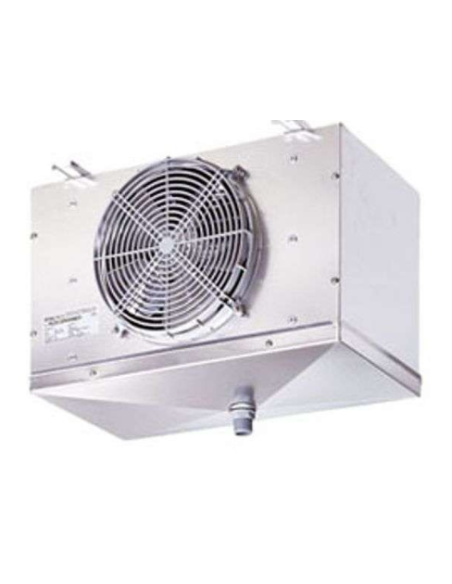

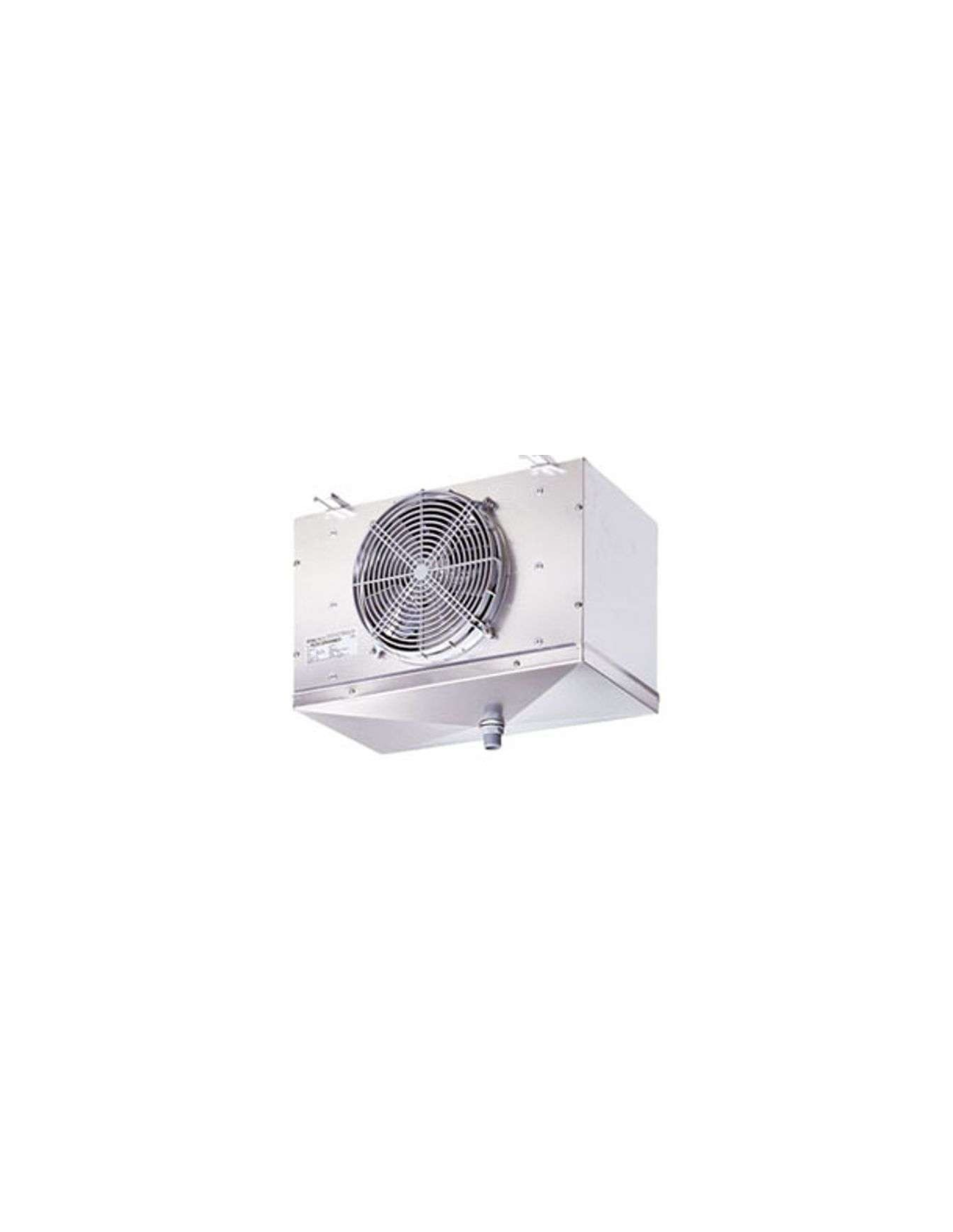

The Rivacold RCS1250404ED cubic evaporator belongs to the RCS series and is designed for negative temperature HBP applications.

Thanks to its compact and robust structure, it ensures high heat exchange efficiency and uniform air distribution inside the cold room.

It is equipped with 1 high-speed fan motor with a diameter of 254 mm, capable of ensuring an air flow of 787 m³/h, improving temperature stability and reducing thermal differences.

The 4mm fin pitch coil is optimised for use in low-temperature environments, while the 750W electric defrost ensures reliable operation even in high humidity conditions.

The evaporator uses R452A gas and has a total exchange surface of 7.03 m², with a circuit volume of 1.72 dm³, making it suitable for professional installations in the commercial and industrial refrigeration sector.

Adaptability:

• Cold storage rooms for fresh products

• Cold storage rooms for frozen and deep-frozen products

• Positive, medium and negative temperature cells

• Cells with reduced spaces thanks to the compact structure

• Direct expansion refrigeration systems

• Applications from +15°C to -40°C (depending on configuration)

• Low temperature use with ED version equipped with defrosting resistors

• Commercial and industrial installations

Technical Features:

General Data

• Code: RCS1250404ED

• Series: RCS

• Model: Cubic

• Application: HBP – Negative Temperature

• PED: 0

Battery Structure

• Number of ranks: 4

• Total area: 7.03 m²

• Fin pitch: 4 mm

• Circuit volume: 1.72 dm³

Ventilation

• Number of fans: 1

• Fan diameter: 254 mm

• Air flow: 787 m³/h

• Air flow type: Axial

Fan Electrical Data

• Power consumption: 80 W

• Current consumption: 0.35 A

Defrosting

• Type: Electric

• Defrosting power: 750 W

Connections

• Inlet connection: 12 mm – 1/2" SAE

• Output connection: 12 mm

• Exhaust connection: 1" GAS (33 mm)

Weight

• Net weight: 14.5 kg

Cooling Capacity – R452A Gas (High Speed)

(Values expressed in Watts)

• ΔT 5 K :

  • 726 W at -5°C

  • 891 W at +15°C

• ΔT 6 K:

  • 913 W at -5°C

  • 1089 W at +15°C

• ΔT 7 K:

  • 1100 W at -5°C

  • 1276 W at +15°C

• ΔT 8 K:

  • 1287 W at -5°C

  • 1513 W at +15°C

• ΔT 9 K:

  • 1474 W at -5°C

  • 1722 W at +15°C

• ΔT 10 K:

  • 1639 W at -5°C

  • 1936 W at +15°C
