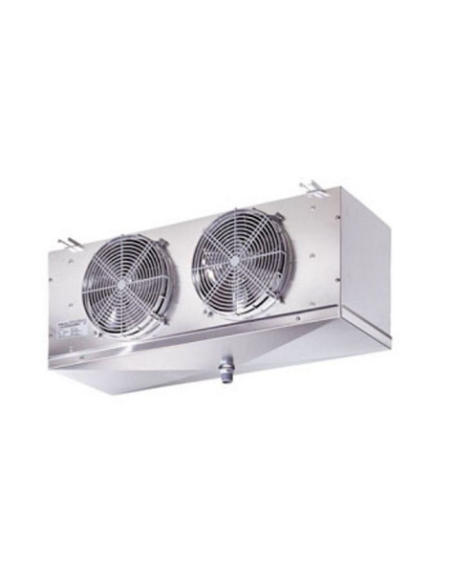

RIVACOLD RCS2250406ED CUBIC EVAPORATOR
€678.24
Rivacold RCS2250406ED cubic evaporator for medium temperature cold rooms (MBP), designed to ensure high heat exchange efficiency, reliability and uniform air distribution.
Ideal for professional applications with double ventilation and integrated electric defrosting.
Description
The Rivacold RCS2250406ED cubic evaporator is a reliable solution for medium-temperature cold rooms (MBP) dedicated to the storage of fresh products in commercial and professional environments.
The coil with copper tubes and aluminum fins, with 6 rows and 6 mm fin pitch, guarantees excellent cooling performance and stable operation over time.
The double ventilation with shielded pole motor fans ensures uniform air circulation, reducing temperature differences inside the cell.
The integrated electric defrost maintains high performance even under continuous use.
The compact structure allows for easy installation even in environments with limited space, making the RCS2250406ED a versatile choice for MBP refrigeration systems.
ADAPTABILITY
Medium Temperature Cold Storage (MBP)
Preservation of fresh produce
Ceiling installation
Commercial and professional applications
Systems requiring good cooling performance and uniform ventilation
TECHNICAL CHARACTERISTICS
GENERAL DATA
Code: RCS2250406ED
Series: RCS
Model: Cubic
Application: MBP
PED: 0
Number of ranks: 4
Total area: 9.6 m²
Fin pitch: 6 mm
BATTERY STRUCTURE
Pipes: Copper
Fins: Aluminum
Circuit volume: 3.16 dm³
VENTILATION
Number of fans: 2
Fan type: Shielded poles
Fan diameter: 254 mm
Air flow: approximately 1500 m³/h
Air throw: 10 m
Speed: 1300 rpm
FAN ELECTRICAL DATA
Power supply: 230 V / 1 / 50–60 Hz
Power consumption: 160 W
Current consumption: 0.7 A
DEFROSTING
Type: Electric
Defrosting power: 1350 W
CONNECTIONS
Inlet connection: 12 mm – 1/2" SAE
Output connection: 16 mm
Exhaust connection: 1" GAS (33 mm)
WEIGHT
Net weight: 19.5 kg
COOLING OUTPUT (Gas R452A – ΔT 10 K)
−20 °C: 2618 W
−15 °C: 2772 W
−10 °C: 2926 W
−5 °C: 3069 W
0°C: 3245 W
2°C: 3267 W
4°C: 3289 W
6°C: 3311 W
8°C: 3333 W
10°C: 3355 W
12°C: 3443 W
15°C: 3575 W
Online sales of all RIVACOLD evaporators, including models not listed on the website. Contact us for availability and personalized quotes:
Email: info@polargross.com Tel. +39 070 543 5282 WhatsApp +39 344 506 7526
