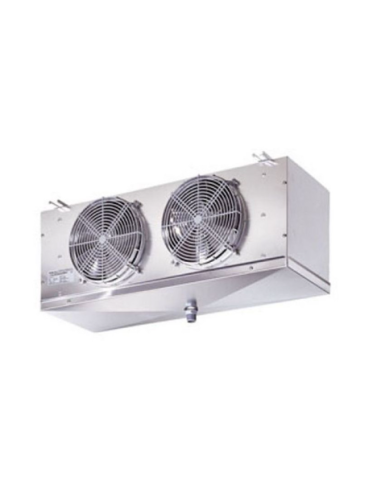

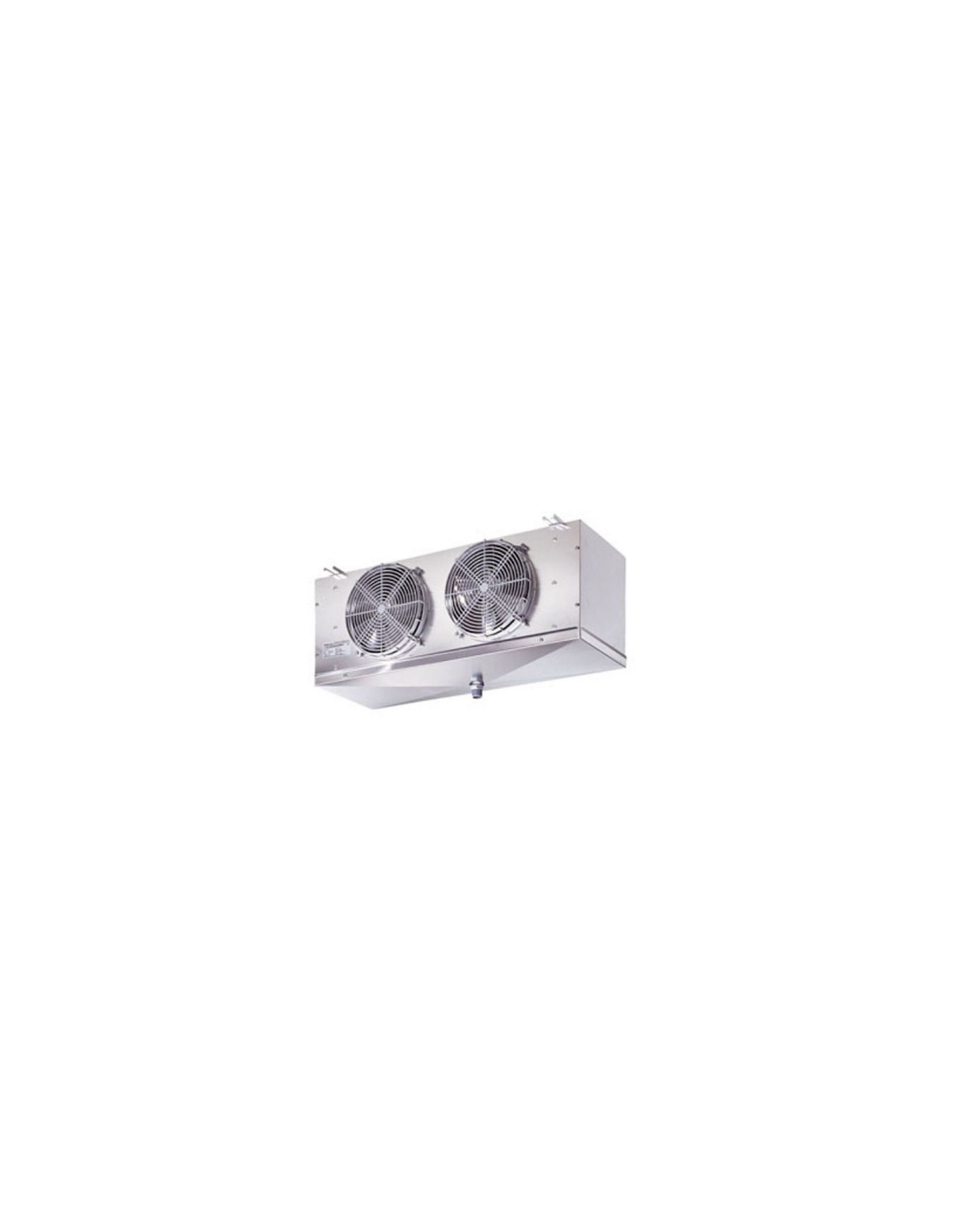

RIVACOLD RCS2250604ED CUBIC EVAPORATOR
€756.15
Rivacold RCS2250604ED cubic evaporator for medium/high temperature cold rooms (HBP), designed to guarantee high cooling performance, reliability and uniform air distribution.
The large surface area battery, double ventilation and integrated electric defrosting ensure continuous operation in professional applications.
Description
The Rivacold RCS2250604ED cubic evaporator is suitable for installation in medium and high temperature cold rooms (HBP) dedicated to the preservation of fresh products in commercial and professional environments.
The coil, featuring copper tubes and aluminum fins, with 6 rows and a 4 mm fin pitch, guarantees a large heat exchange surface area and consistent performance. The compact structure allows for easy installation even in rooms with limited space.
The ventilation system with double shielded pole motor fans ensures uniform air circulation, improving temperature uniformity inside the cold room.
The integrated electric defrosting helps maintain high performance over time and reduce maintenance interventions.
The RCS2250604ED represents a robust and reliable solution for HBP refrigeration systems.
ADAPTABILITY
Medium/High Temperature Cold Storage (HBP)
Preservation of fresh produce
Ceiling installation
Commercial and professional applications
Systems requiring high cooling capacity
Configurations with 2 fans
TECHNICAL CHARACTERISTICS
GENERAL DATA
Code: RCS2250604ED
Series: RCS
Model: Cubic
Application: HBP
PED: 0
Number of ranks: 6
Total area: 20.8 m²
Fin pitch: 4 mm
BATTERY STRUCTURE
Pipes: Copper
Fins: Aluminum
Circuit volume: 4.75 dm³
VENTILATION
Number of fans: 2
Fan type: Shielded poles
Fan diameter: 254 mm
Air flow: 1358 m³/h
Air throw: 8 m
Speed: 1300 rpm
FAN ELECTRICAL DATA
Power supply: 230 V / 1 / 50–60 Hz
Power consumption: 160 W
Current consumption: 0.7 A
DEFROSTING
Type: Electric
Defrosting power: 1350 W
CONNECTIONS
Inlet connection: 12 mm – 1/2" SAE
Output connection: 16 mm
Exhaust connection: 1" GAS (33 mm)
WEIGHT
Net weight: 22.1 kg
COOLING OUTPUT – RCS2250604ED
ΔT 10 K conditions – Gas R452A
Values expressed in Watts
4°C: 4680 W
0°C: 4932 W
2°C: 4978 W
4°C: 5000 W
6°C: 5050 W
8°C: 5100 W
10°C: 5200 W
12°C: 5300 W
15°C: 5450 W
Online sales of all RIVACOLD evaporators, including models not listed on the website. Contact us for availability and personalized quotes:
