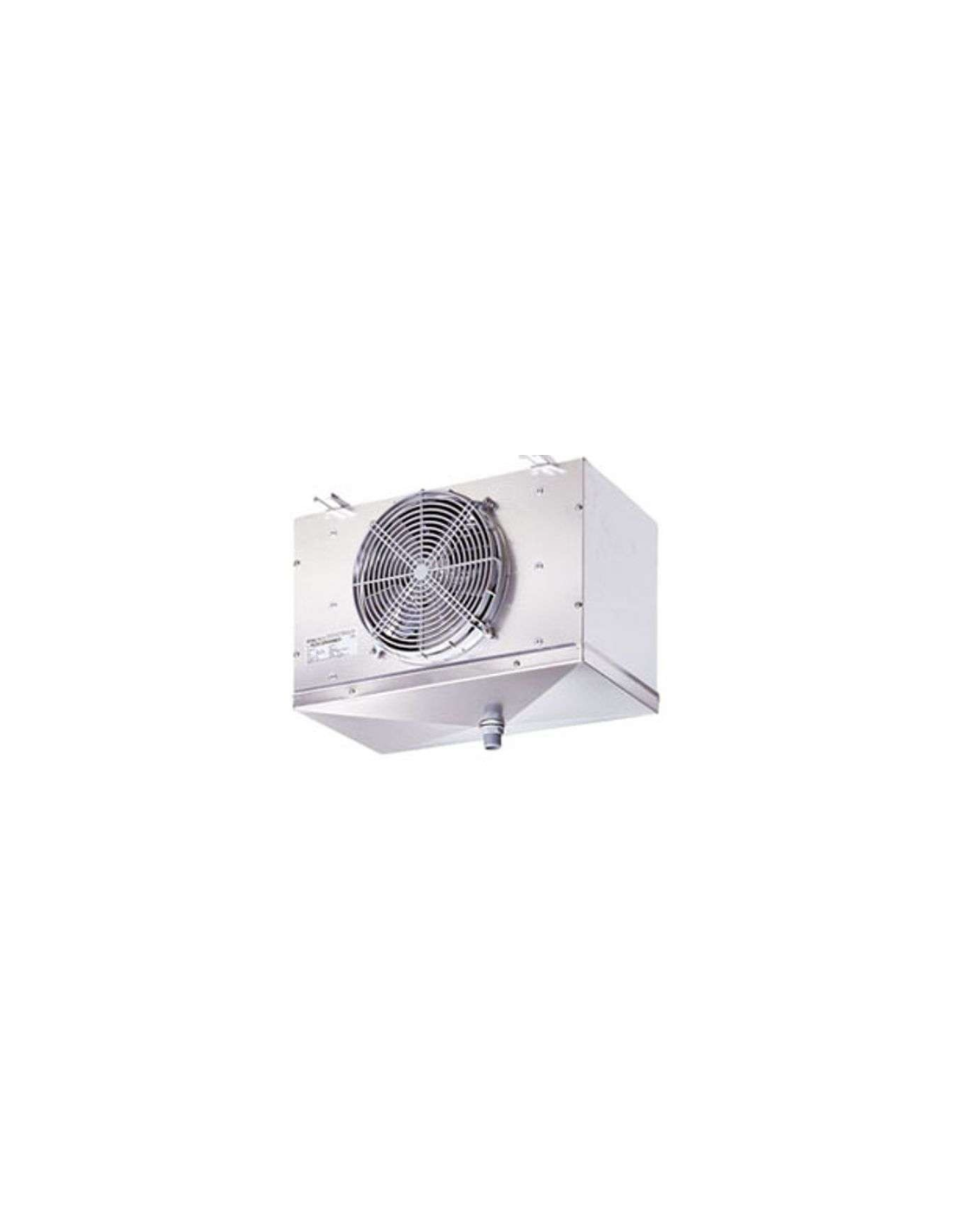

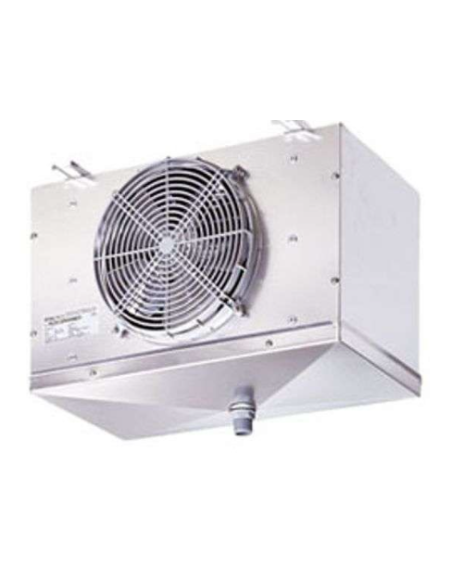

The Rivacold RCS1250604ED cubic evaporator, belonging to the RCS series, is designed for HBP applications at negative temperatures and guarantees reliability, efficiency and continuity of operation even in harsh conditions.

The 6-row coil with 4 mm fin pitch ensures a high heat exchange surface area of 10.5 m², optimising cooling performance with R452A gas.

The 254 mm fan motor, with an air flow of 701 m³/h, allows for even diffusion of air inside the cell, improving temperature stability.

The 750W electric defrost makes the unit reliable even in high humidity environments, while the compact structure facilitates installation in various commercial and industrial refrigeration contexts.

Adaptability:

• Cold storage rooms for storing fresh products

• Cold storage rooms for frozen and deep-frozen products

• Positive, medium and negative temperature cells

• Applications with cell temperatures from +15°C to -40°C

• Small and medium-sized cells thanks to the compact design

• Direct expansion refrigeration systems

• Use at low and very low temperatures with ED version with defrosting resistors

• Commercial and industrial installations

• Environments with operating temperatures down to -40°C

Technical Features:

General Data

• Code: RCS1250604ED

• Series: RCS

• Model: Cubic

• Application: HBP – Negative Temperature

• Number of ranks: 6

• PED: 0

Drums

• Total area: 10.5 m²

• Fin pitch: 4 mm

• Circuit volume: 2.38 dm³

Ventilation

• Number of fans: 1

• Fan diameter: 254 mm

• Air flow: 701 m³/h

• Air Arrow: 7 m

Fan Electrical Data

• Power consumption: 80 W

• Current consumption: 0.35 A

Defrosting

• Type: Electric

• Defrosting power: 750 W

Connections

• Inlet connection: 12 mm – 1/2" SAE

• Output connection: 12 mm

• Exhaust connection: 1" GAS (33 mm)

Weight

• Net weight: 15.4 kg

Cooling Capacity – R452A Gas (High Speed)

Indicative values expressed in Watts

• ΔT 5 K:

  • 893 W at -5°C

  • 1174 W at +15°C

• ΔT 6 K:

  • 1085 W at -5°C

  • 1361 W at +15°C

• ΔT 7 K:

  • 1287 W at -5°C

  • 1612 W at +15°C

• ΔT 8 K:

  • 1474 W at -5°C

  • 1859 W at +15°C

• ΔT 9 K:

  • 1639 W at -5°C

  • 2006 W at +15°C

• ΔT 10 K:

  • 1798 W at -5°C

  • 2227 W at +15°C
