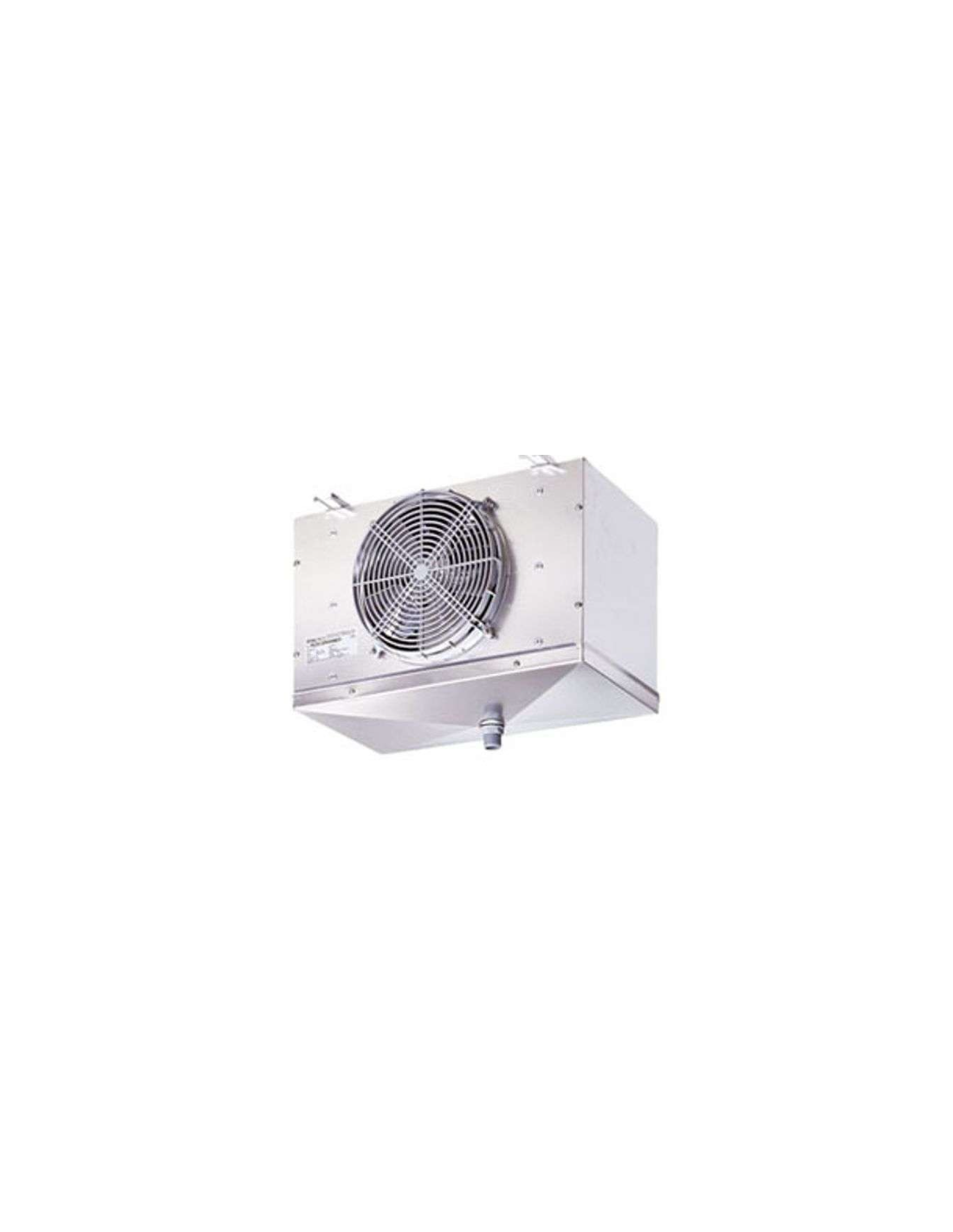

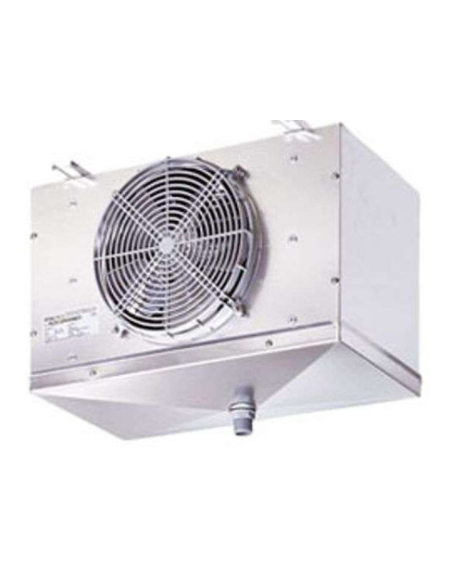

The Rivacold RCS1250408ED cubic evaporator is suitable for installation in low-temperature cold rooms (LBP) for the storage of frozen products in commercial and professional environments.

The coil, made of copper tubes and aluminum fins with an 8 mm fin pitch and 4 rows, ensures proper heat exchange and reduces frost formation, improving the overall efficiency of the system. The compact structure allows for installation even in small cold rooms.

The ventilation system with a shielded pole motor fan ensures uniform distribution of air inside the cold room, contributing to temperature stability.

The integrated electric defrost keeps the evaporator efficient over time and limits maintenance interventions.

Thanks to its construction features, the RCS1250408ED represents a reliable solution for low-temperature refrigeration systems.

ADAPTABILITY:

• Low Temperature Cold Storage (LBP)

• Storage of frozen and deep-frozen products

• Ceiling installations

• Commercial and professional applications

• Systems requiring increased fin spacing (8 mm)

• Configurations with 1 fan

GENERAL DATA
Code: RCS1250408ED
Series: RCS
Model: Cubic
Application: LBP
PED: 0
Number of ranks: 4
Total area: 3.8 m²
Fin pitch: 8 mm

BATTERY STRUCTURE
Pipes: Copper
Fins: Aluminum
Circuit volume: 1.72 dm³

VENTILATION
Number of fans: 1
Fan type: Shielded poles
Fan diameter: 254 mm
Air flow: 982 m³/h
Air throw: 8 m
Speed: 1300 rpm

FAN ELECTRICAL DATA
Power supply: 230 V / 1 / 50–60 Hz
Power consumption: 80 W
Current consumption: 0.35 A

DEFROSTING
Type: Electric
Defrosting power: 750 W

CONNECTIONS
Inlet connection: 12 mm – 1/2" SAE
Output connection: 12 mm
Exhaust connection: 1" GAS (33 mm)

WEIGHT
Net weight: 13.6 kg

COOLING OUTPUT (Gas R452A – ΔT 10 K)
−40 °C: 766 W
−35 °C: 872 W
−30 °C: 979 W
−25 °C: 1077 W
−20 °C: 1155 W
−15 °C: 1210 W
−10 °C: 1276 W
−5 °C: 1342 W
0°C: 1408 W
2°C: 1419 W
4°C: 1430 W
