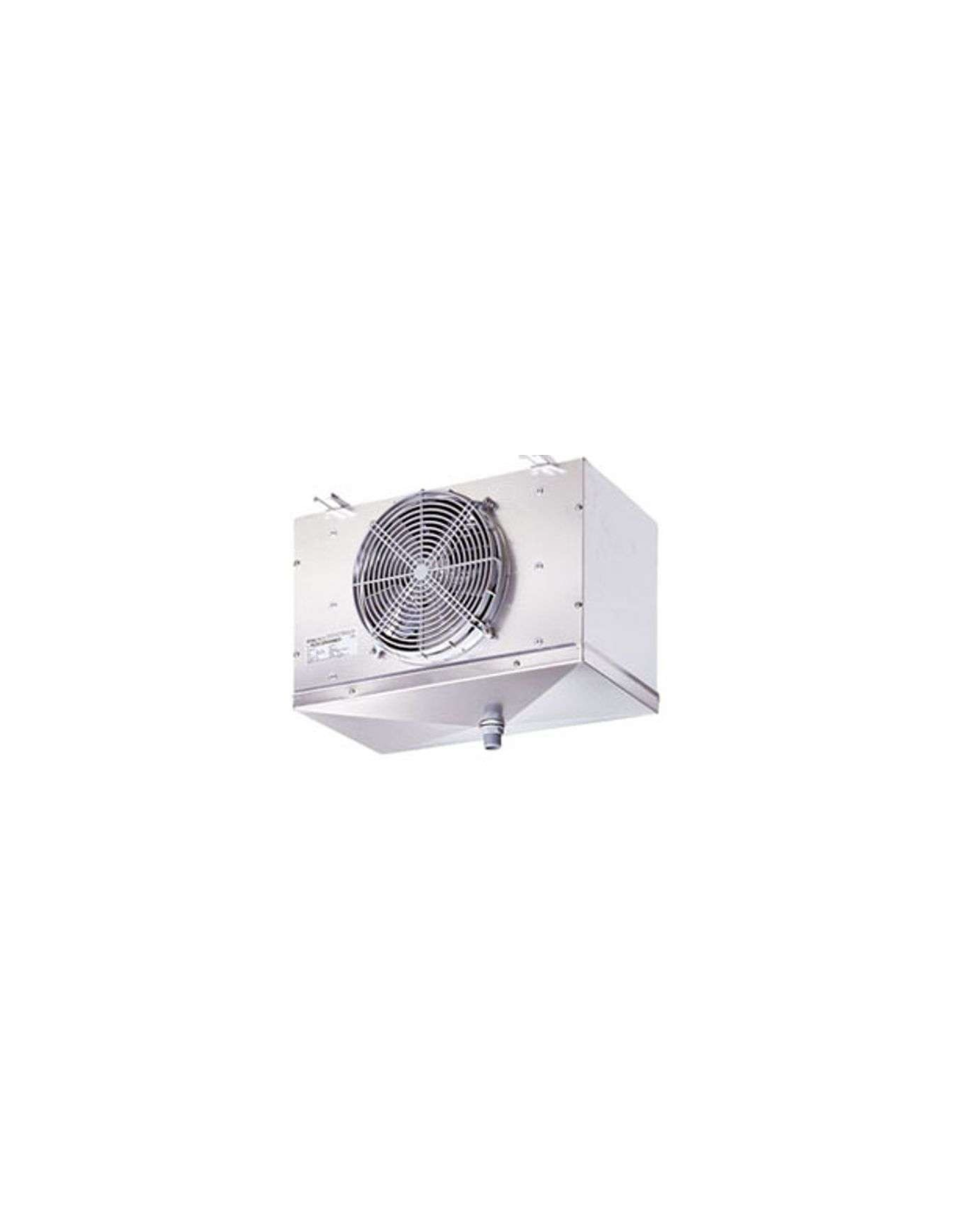

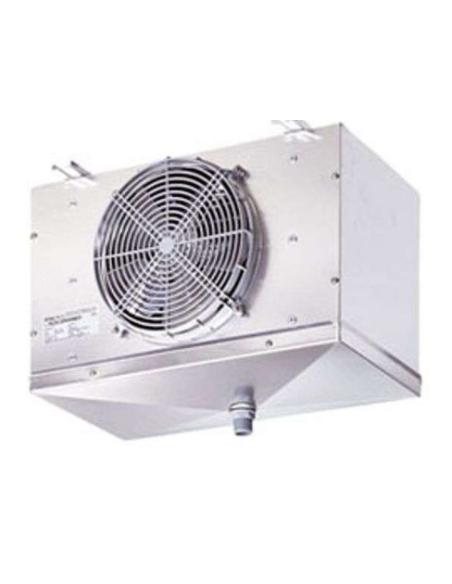

RIVACOLD RCS1250608ED CUBIC EVAPORER
€534.36
Rivacold RCS1250608ED cubic evaporator for low-temperature (LBP) cold rooms, designed to ensure uniform cooling, reliability and continuity of operation.
The 8mm fin pitch coil and integrated electric defrost make it ideal for low temperature applications.
Description
The Rivacold RCS1250608ED cubic evaporator is designed for installation in low-temperature cold rooms (LBP) dedicated to the storage of frozen and deep-frozen products in commercial and professional environments.
The coil with copper tubes and aluminum fins, equipped with 8 mm fin pitch and 6 rows, ensures effective heat exchange and reduced frost formation, maintaining high performance even in heavy-duty conditions.
The compact structure allows for easy installation even in cells with limited space.
The ventilation system with shielded pole motor fan ensures uniform distribution of air inside the cold room, contributing to temperature stability and better product conservation.
The integrated electric defrost keeps the evaporator efficient over time and reduces maintenance interventions.
The RCS1250608ED represents a reliable and versatile solution for low temperature refrigeration systems.
ADAPTABILITY
Low Temperature Cold Storage (LBP)
Storage of frozen and deep-frozen products
Ceiling installation
Commercial and professional applications
Systems requiring increased fin spacing (8 mm)
Configurations with 1 fan
TECHNICAL FEATURES:
GENERAL DATA
Code: RCS1250608ED
Series: RCS
Model: Cubic
Application: LBP
PED: 0
Number of ranks: 6
Total area: 5.7 m²
Fin pitch: 8 mm
BATTERY STRUCTURE
Pipes: Copper
Fins: Aluminum
Circuit volume: 2.58 dm³
VENTILATION
Number of fans: 1
Fan type: Shielded poles
Fan diameter: 254 mm
Air flow: 874 m³/h
Air throw: 8 m
Speed: 1300 rpm
FAN ELECTRICAL DATA
Power supply: 230 V / 1 / 50–60 Hz
Power consumption: 80 W
Current consumption: 0.35 A
DEFROSTING
Type: Electric
Defrosting power: 750 W
CONNECTIONS
Inlet connection: 12 mm – 1/2" SAE
Output connection: 12 mm
Exhaust connection: 1" GAS (33 mm)
WEIGHT
Net weight: 14.2 kg
COOLING CAPACITY – RCS1250608ED
ΔT 10 K conditions – Gas R452A
Values expressed in Watts
−40 °C: 769 W
−35 °C: 880 W
−30 °C: 991 W
−25 °C: 1133 W
−20 °C: 1276 W
−15 °C: 1397 W
−10 °C: 1496 W
−5 °C: 1606 W
0°C: 1727 W
2°C: 1750 W
4°C: 1782 W
Online sales of all RIVACOLD evaporators, including models not listed on the website. Contact us for availability and personalized quotes:
Email: info@polargross.com Tel. +39 070 543 5282 WhatsApp +39 344 506 7526
