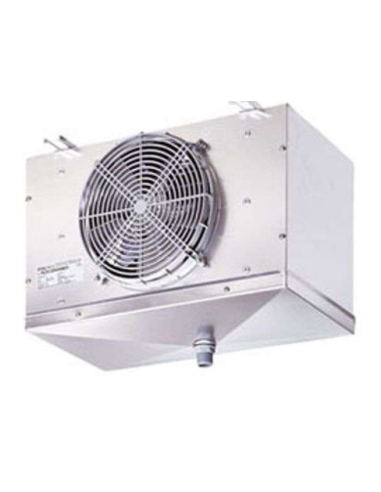

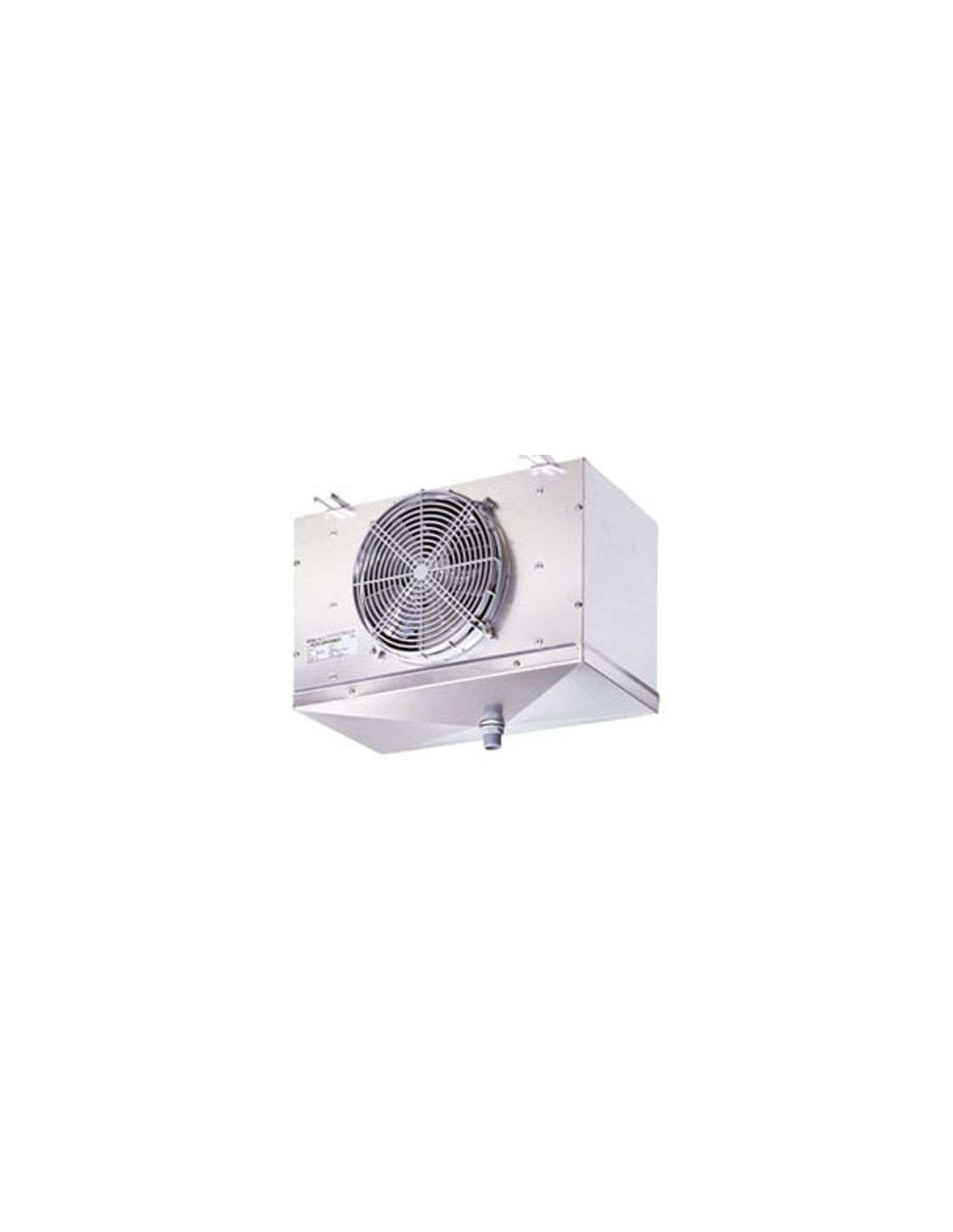

The Rivacold RCS1250606ED cubic evaporator is suitable for installation in medium-temperature cold rooms (MBP) intended for the storage of fresh products in commercial and professional environments.

The coil, made of copper tubes and aluminum fins, with a 6 mm fin pitch and 6 rows, allows for effective heat exchange and consistent performance over time. The compact structure allows for easy installation even in rooms with limited space.

The ventilation system with shielded pole motor fan ensures correct distribution of air inside the cold room, contributing to a uniform temperature and better conservation of the products.

Integrated electric defrost keeps the evaporator efficient and reduces the need for maintenance.

Thanks to its construction features, the RCS1250606ED represents a reliable and versatile solution for medium temperature refrigeration systems.

ADAPTABILITY:

• Medium Temperature Cold Storage (MBP)
• Preservation of fresh produce
• Ceiling installations
• Commercial and professional applications
• Systems with medium spaces and a requirement for greater exchange surface area
• Configurations with 1 fan

TECHNICAL FEATURES:

GENERAL DATA

Code: RCS1250606ED

Series: RCS

Model: Cubic

Application: MBP

PED: 0

Number of ranks: 6

Total area: 7.3 m²

Fin pitch: 6 mm

BATTERY STRUCTURE

Pipes: Copper

Fins: Aluminum

Circuit volume: 2.58 dm³

VENTILATION

Number of fans: 1

Fan type: Shielded poles

Fan diameter: 254 mm

Air flow: 800 m³/h

Air throw: 8 m

Speed: 1300 rpm

FAN ELECTRICAL DATA

Power supply: 230 V / 1 / 50–60 Hz

Power consumption: 80 W

Current consumption: 0.35 A

DEFROSTING

Type: Electric

Defrosting power: 750 W

CONNECTIONS

Inlet connection: 12 mm – 1/2" SAE

Output connection: 12 mm

Exhaust connection: 1" GAS (33 mm)

WEIGHT

Net weight: 14.6 kg

REFRIGERATION PERFORMANCE – RCS1250606ED

ΔT 10 K conditions – Gas R452A

(Values expressed in Watts)

−20 °C: 1342 W

−15 °C: 1474 W

−10 °C: 1606 W

−5 °C: 1738 W

0°C: 1881 W

2°C: 1914 W

4°C: 1947 W

6°C: 1980 W

8°C: 2002 W

10°C: 2057 W

12°C: 2123 W

15°C: 2222 W
