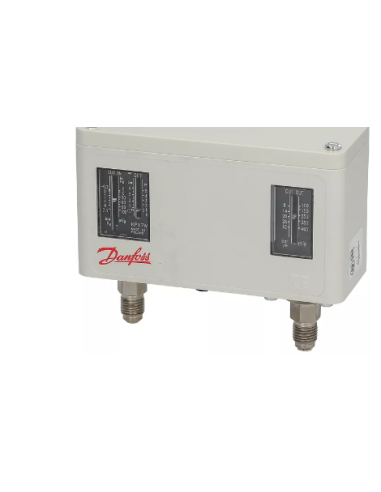

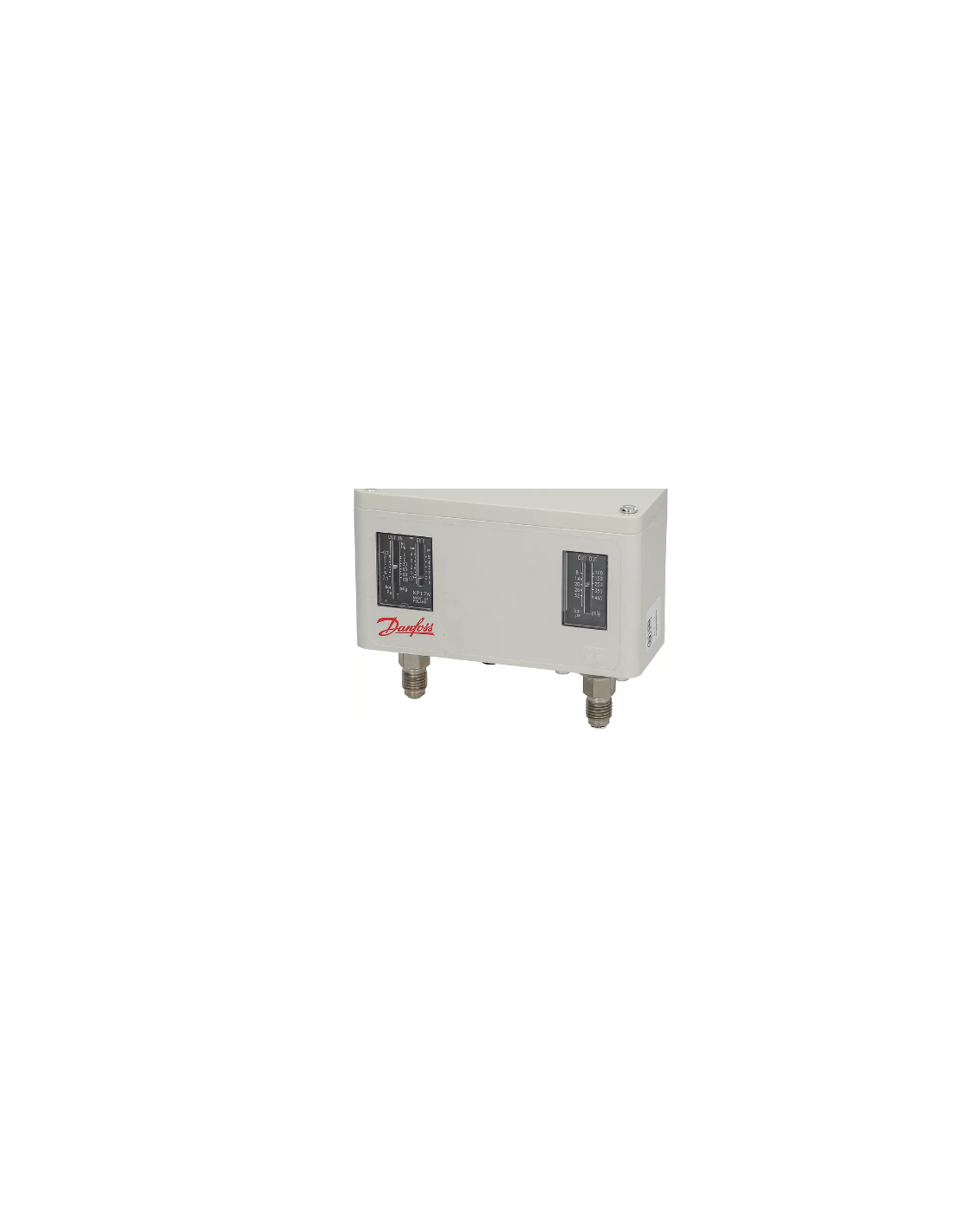

The Danfoss KP17W is a combined high and low pressure switch, designed for the protection and control of refrigeration and air conditioning systems.

Thanks to automatic operation on both circuits (HP and LP), it guarantees safety and efficiency in compressor control, preventing overpressure or depression conditions.

Robust and reliable, it is DIN 32733 certified and is suitable for HVAC applications, cold rooms, chillers and heat pumps.

TECHNICAL FEATURES:

- Model: Danfoss KP17W

- Function: automatic high/low pressure switch

- HP regulation range: 8 … 32 bar

- HP Differential: 4 bar fixed

- LP regulation range: -0.2 … 7.5 bar

- LP differential: 0.7 … 4 bar (adjustable)

- Connections: 1/4” SAE

- Electrical contacts: SPDT

- Reset: automatic

- Certification: DIN 32733

- Applications: refrigeration, HVAC, compressors, chillers

- Producer:

060-518666

DANFOSS

060-5186

DANFOSS

KP17W-0601275

DANFOSS

Adaptability: Code

ADVANTAGES:

- Automatic double pressure control (HP/LP)

- Effective compressor protection

- Wide adjustment range for different applications

- Easy installation with 1/4” SAE connection

- High reliability certified DIN 32733

- Suitable for HVAC and professional refrigeration systems

Reliability, safety, and precise control for professional refrigeration and air conditioning systems.
