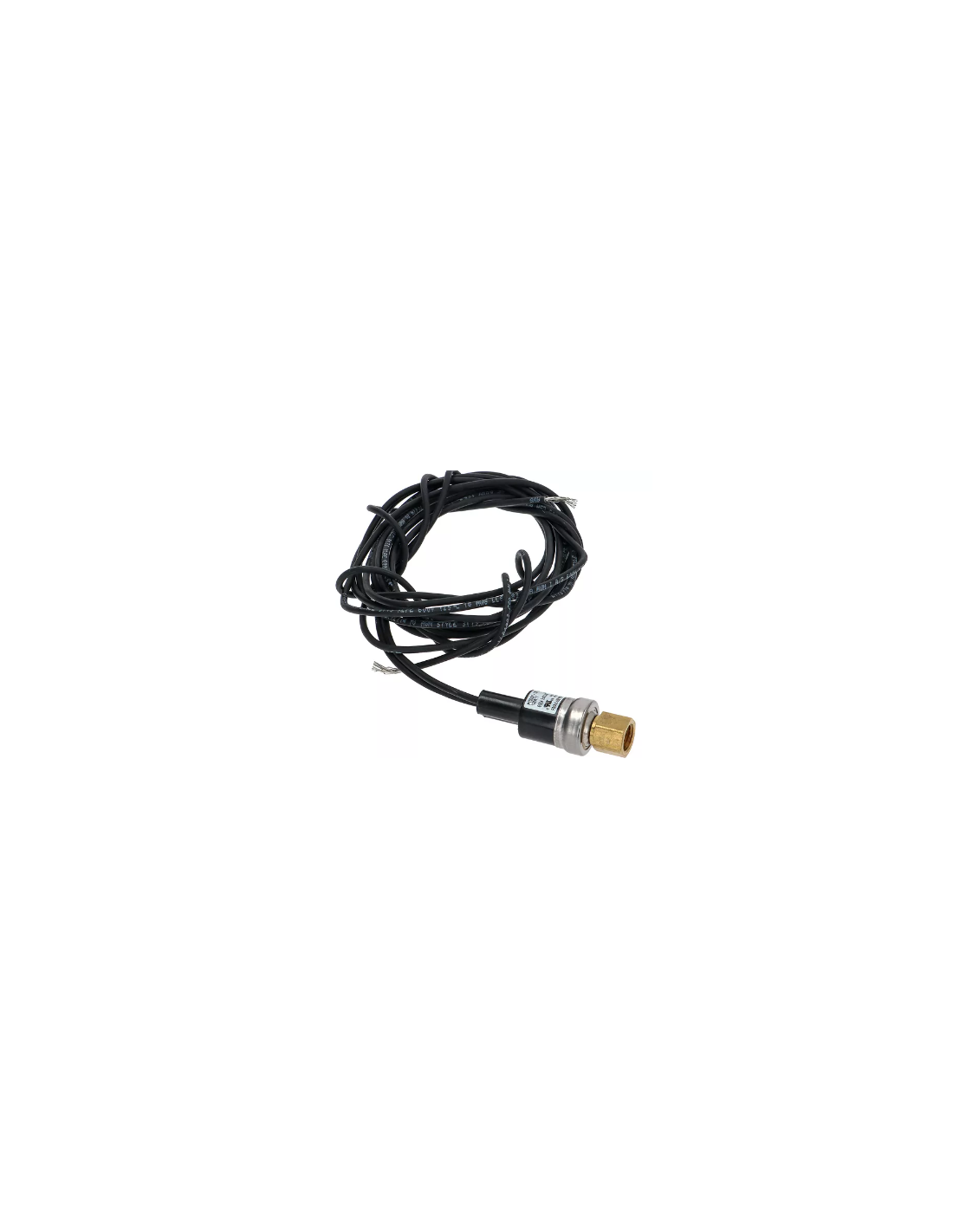

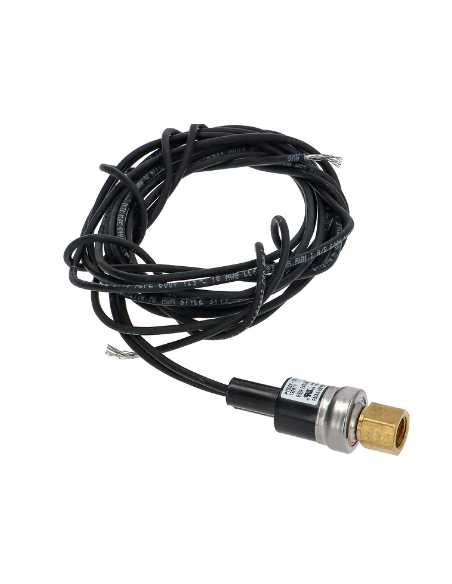

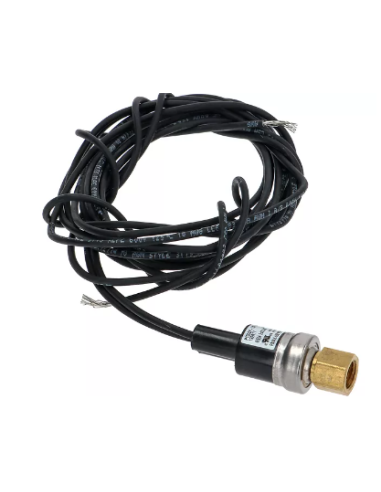

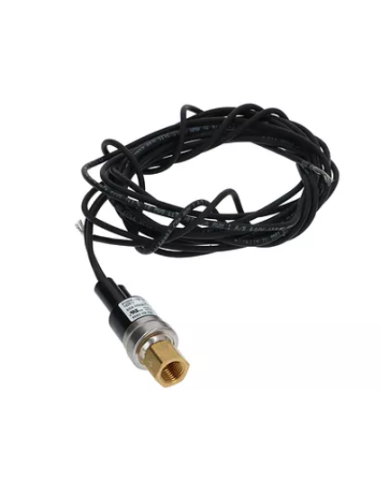

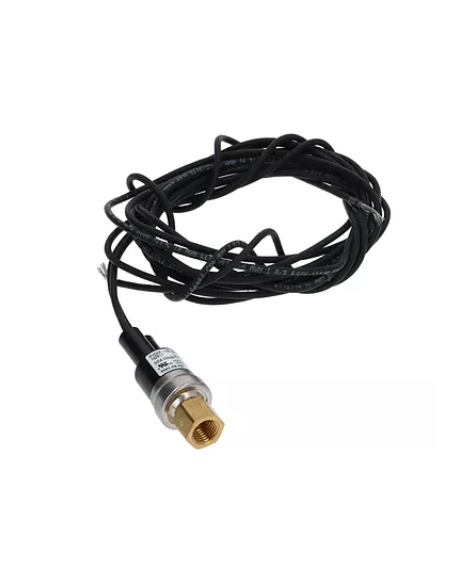

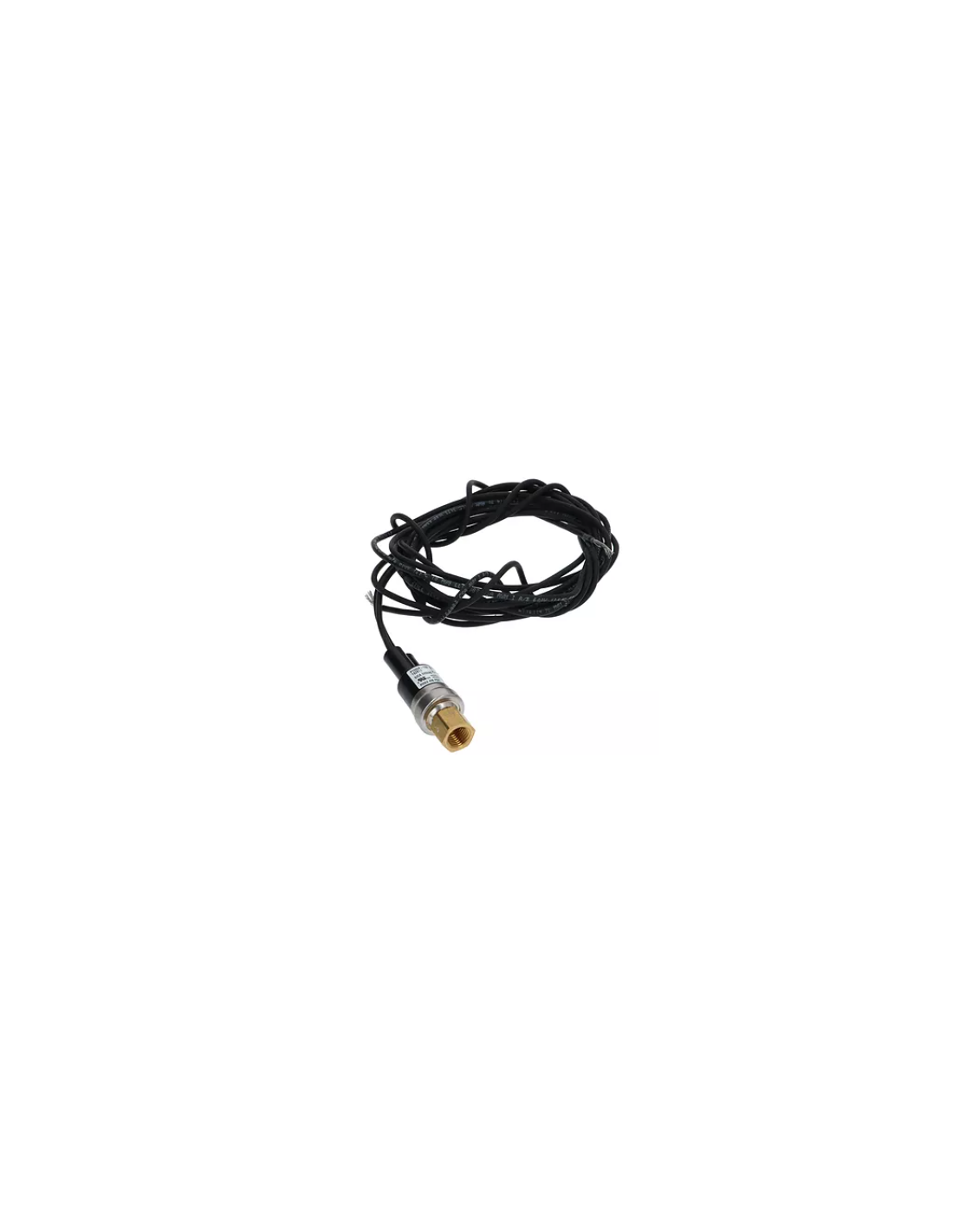

The HP high pressure mini-pressure switch is designed to protect refrigeration systems, intervening in the event of high pressure values to prevent damage to the compressor and the circuit.

The device features automatic reset, allowing for resumption of operation without manual intervention, improving system continuity. The 1/4" SAE connection with depressor allows for quick and safe connection without refrigerant loss, while the 2000 mm cable facilitates installation even in electrical panels or difficult spaces.

Thanks to its compact and reliable structure, it is ideal for commercial refrigeration systems, cold rooms and condensing units.

Compatible with solutions based on Johnson Controls components, subject to verification of application specifications.

Technical features:

Manufacturer Part Number: P100CP-102D - Johnson Controls

Type: High pressure switch (HP)

Adjustment range: 11 ÷ 16 bar

Reset: automatic

Pressure connection: 1/4" SAE F with depressor

Height: 60 mm

Electric cable: 2000 mm

Applications: commercial refrigeration, cold rooms, refrigeration systems

Advantages:

• Protects the compressor from dangerous overpressures

• Automatic reset to reduce plant downtime

• Quick installation and no gas leaks

• Depressor attachment for greater safety

• Long cable for flexible mounting

• Compact design suitable for small spaces

Ideal choice for those seeking maximum compressor protection, long-lasting reliability, and quick and easy installation.
