Bending/curving copper tubing for the refrigeration and air conditioning (HVACR) industry can be difficult, especially for large diameter tubing, and requires a lot of time and attention to detail to achieve a professional job.
Furthermore, removing the tube from a traditional mandrel is often a delicate operation.

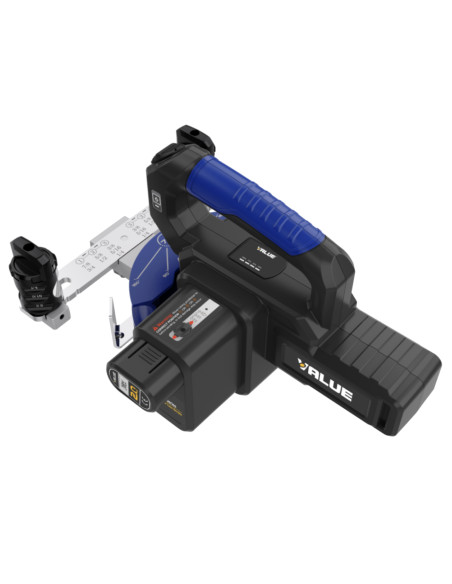

The VALUE TF-VTB22L cordless bending/folding machine saves you time and labor, making your work much easier and more precise.
Suitable for copper pipes 1/4" (6 mm), 5/16" (8 mm), 3/8" (10 mm), 1/2" (12 mm), 5/8" (16 mm), 3/4" (19 mm), 7/8" (22 mm). With a simple push of the control on the bender, you can bend the pipe to any desired angle. After bending, the deflector automatically ejects the pipe as the tool resets, helping you remove the pipe effortlessly.

The high-capacity lithium battery allows for approximately 90 folds per charge and can be fully charged in 35 minutes.

Dimensions: 325 x 250 x 180 mm
Weight: 5.9 kg
Operating temperature: 5 - 40 °C
Lithium battery 7.2 V - 2Ah - 14.4 Wh
Charging time: 35 minutes

The battery and charger are compatible with the VET19Li cordless tube flaring tool and the VTE-29D and VTE-42D cordless tube expanders.

The 230 V AC (50-60 Hz) - 50 W charger is supplied.
Supplied in a plastic case.

NOTE: The VTBRK reverse bending kit is available separately; with the kit you can bend copper pipe in the opposite direction to that of the cordless bender (i.e. outwards).
