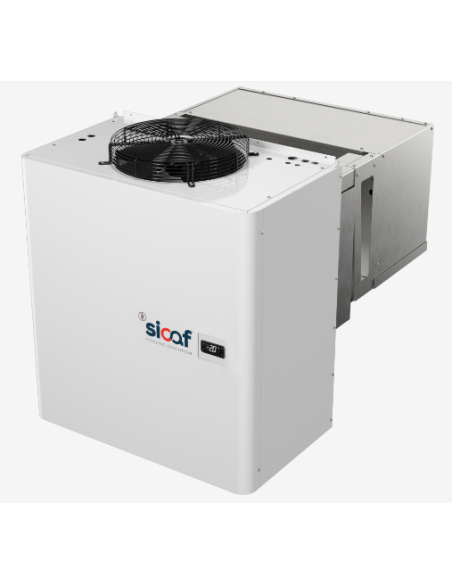

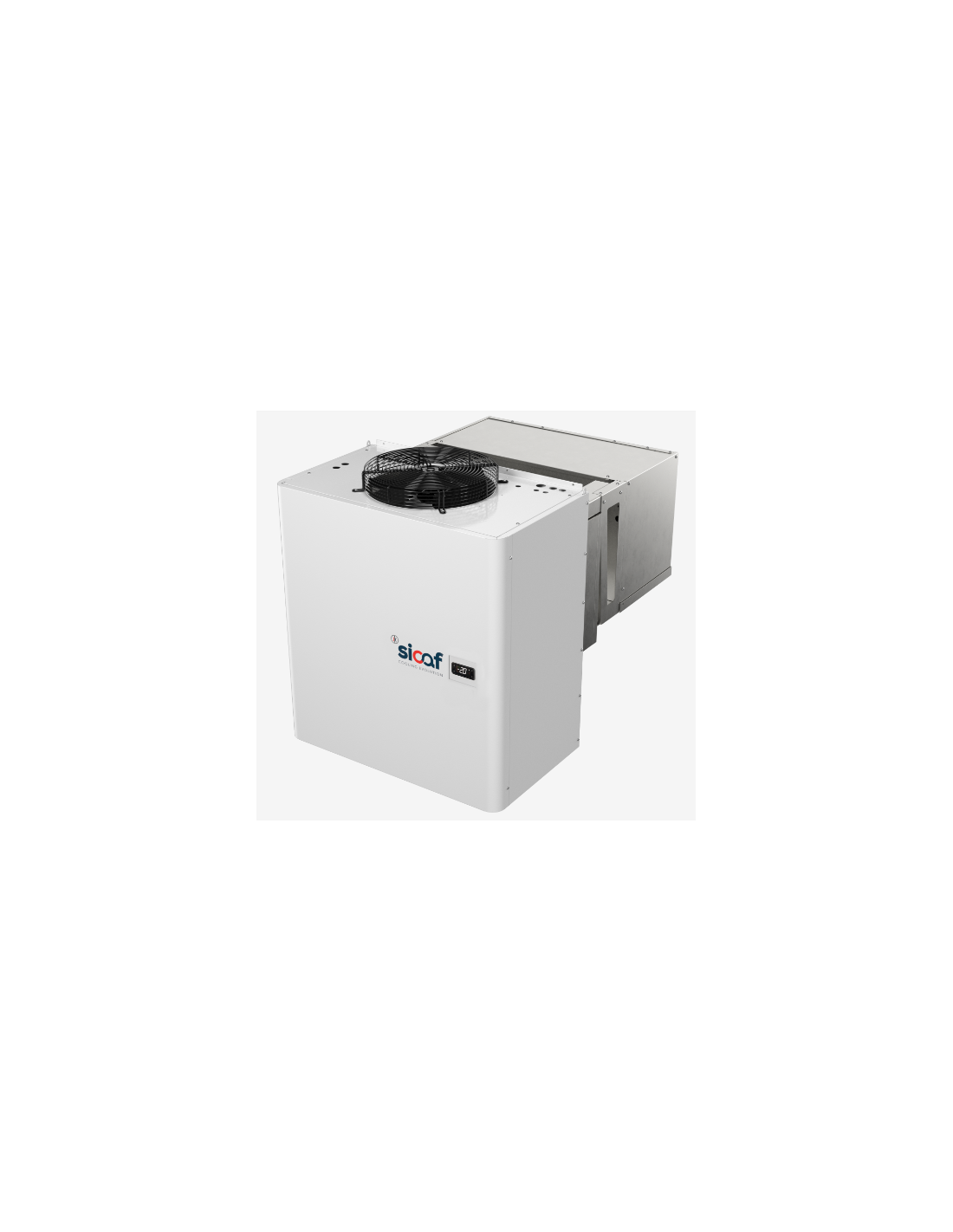

The ACB430 Monoblocco Parete is a professional refrigeration unit designed for low temperature (LT) rooms with an operating range from -18°C to -25°C and an indicative volume of up to 30.5 m³.

Thanks to the high-performance hermetic compressor and the use of R455A refrigerant with low environmental impact, it guarantees reliability, energy efficiency and operational continuity even in harsh conditions.

The hot gas defrosting system ensures rapid and effective cycles, preventing ice buildup on the evaporator and maintaining constant cooling performance over time.

With a power output of 2830 W (TA 32°C – TC -18°C), optimised ventilation and an air arrow of up to 11 metres, it guarantees uniform distribution of cold inside the cell.

The compact monoblock structure allows for quick and easy wall installation, making it ideal for restaurants, butchers, pastry shops, food laboratories and the large-scale retail sector.

TECHNICAL FEATURES:

• Model: ACB430 Wall-mounted Monobloc

• Indicative cell volume: 30.5 m³

• Weight: 111 kg

• Power supply: 380-420 V / 3 / 50 Hz

• Refrigerant: R455A

• Application: BT -18°C / -25°C

• Compressor type: Hermetic

• Defrosting: Hot gas

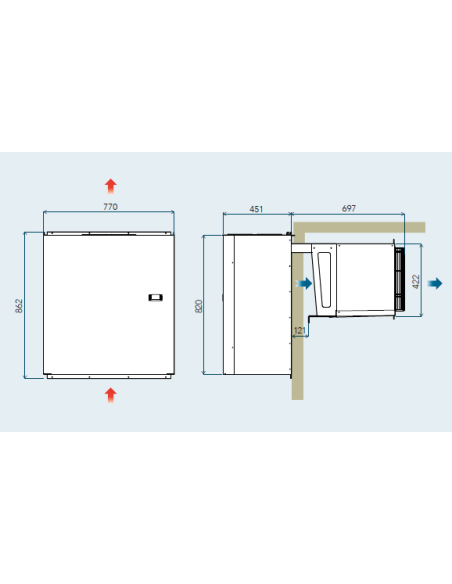

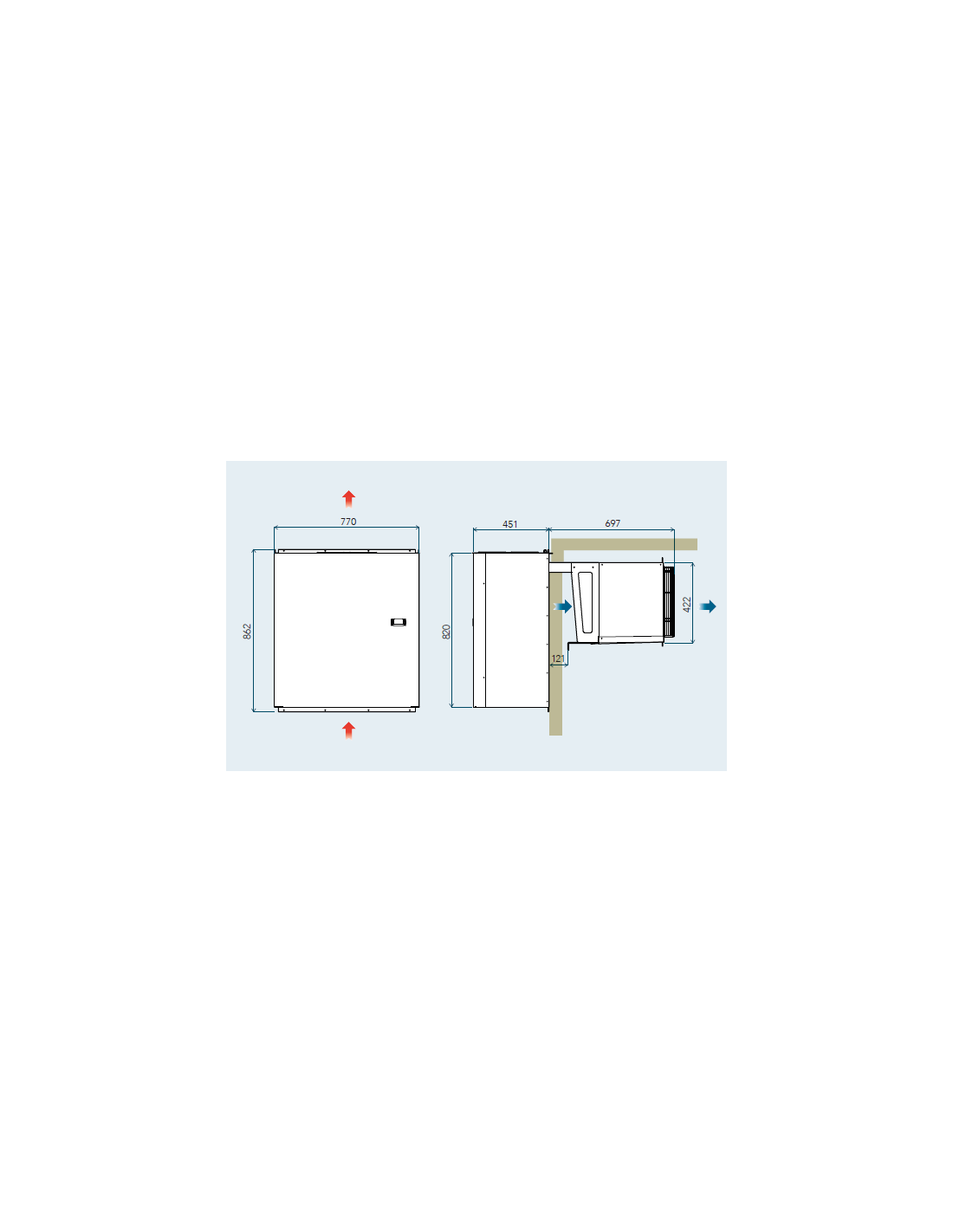

Dimensions

• Width: 770 mm

• Depth: 451 mm

• Height: 862 mm

Performance

• Yield (TA 32°C – TC -18°C): 2830 W

• Current draw: 8.09 A

Ventilation

• Condenser fans: 1

• Condenser air flow rate: 2300 m³/h

• Evaporator fans: 1

• Evaporator air flow rate: 2200 m³/h

• Evaporator air arrow: 11 m

ADVANTAGES:

• Ideal for LV cells up to 30.5 m³

• Stable and reliable temperature -18°C / -25°C

• High performance 380-420V three-phase power supply

• Low environmental impact R455A refrigerant

• Fast and efficient hot gas defrosting

• Robust and long-lasting hermetic compressor

• Uniform air distribution (11 m) throughout the cell

• Compact monoblock structure easy to install

Online sales of all monoblocks, including models not listed on the website. Contact us for availability and personalized quotes:

Email: info@polargross.com
Tel.: +39 070 543 5282
WhatsApp: +39 344 506 7526
