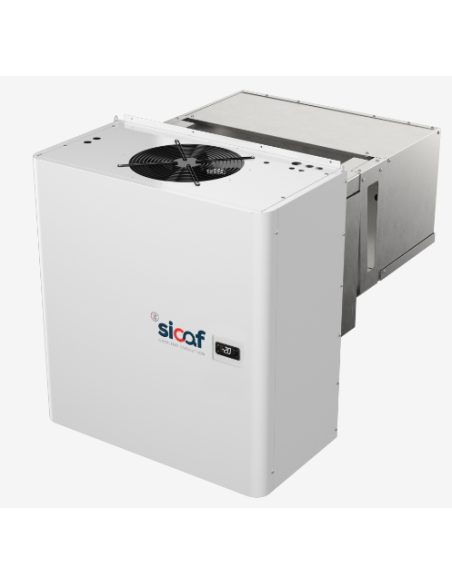

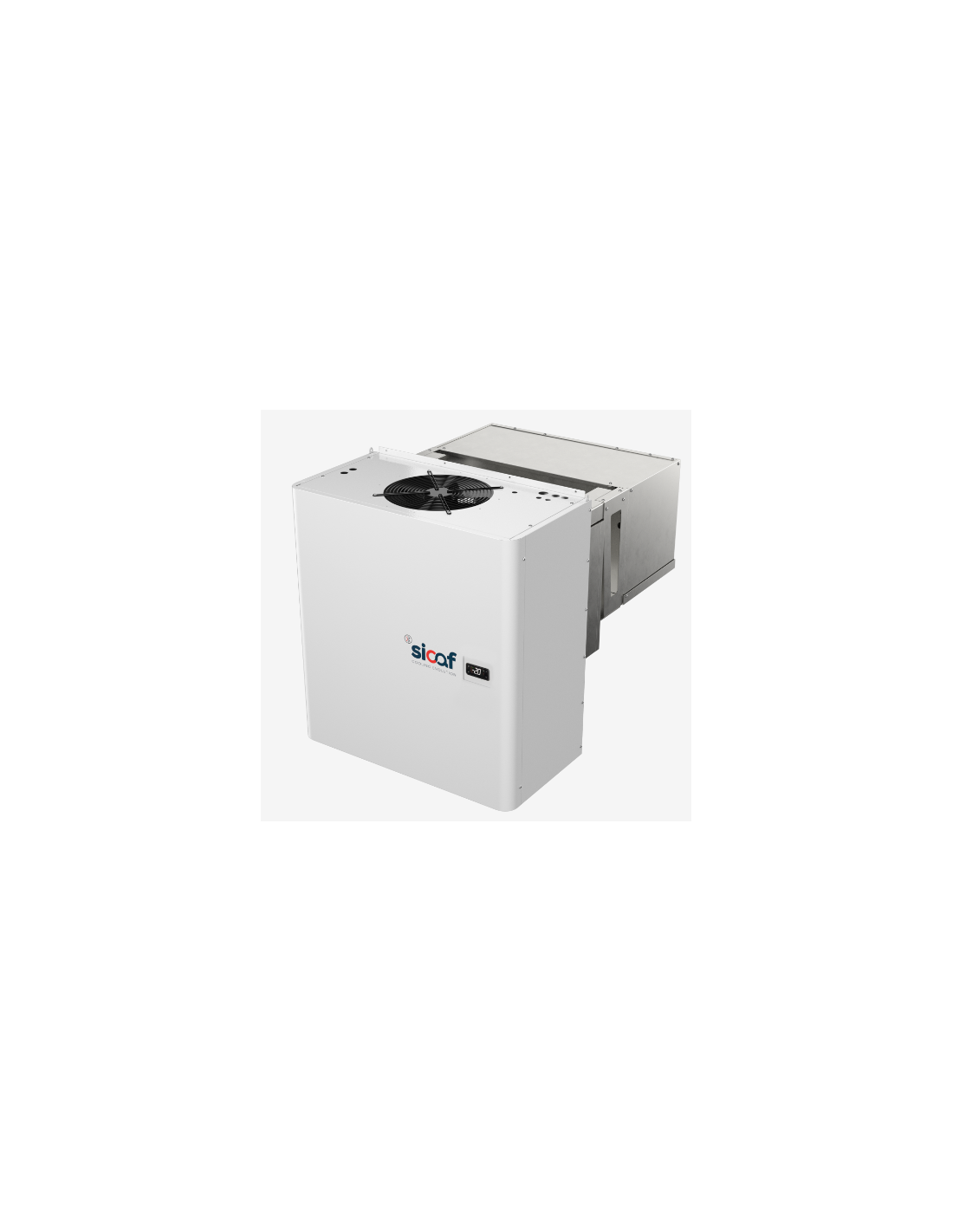

The ACN200 Monoblocco Parete is designed for cold rooms of 6 m³ at normal temperature (TN +5°C / -5°C).

Equipped with a hermetic compressor, it guarantees reliability and silence. Hot gas defrosting allows for rapid and efficient cycles, reducing downtime.

It works with environmentally friendly R455A refrigerant, ensuring low environmental emissions, and is ideal for compact professional installations.

With optimal cooling performance and ventilation designed to ensure uniform cold, it is perfect for applications in the food, catering and small commercial cold rooms sectors.

TECHNICAL DATA SHEET:

Model: ACN200 Monobloc Wall
Cell volume: 6 m³
Application: TN +5°C / -5°C
Weight: 83 kg

Diet

• 380-420 V

• 3 Ph

• 50 Hz

Refrigeration data

• Refrigerant: R455A

• Compressor type: Hermetic

• Defrosting: Hot gas

• Cooling capacity (TA 32°C / TC 5°C): 2970 W

• Current draw: 4.47 A

Ventilation

• Condenser fans: 1

• Condenser air flow rate: 1700 m³/h

• Evaporator fans: 1

• Evaporator air flow rate: 1600 m³/h

• Evaporator air arrow: 7.5 m

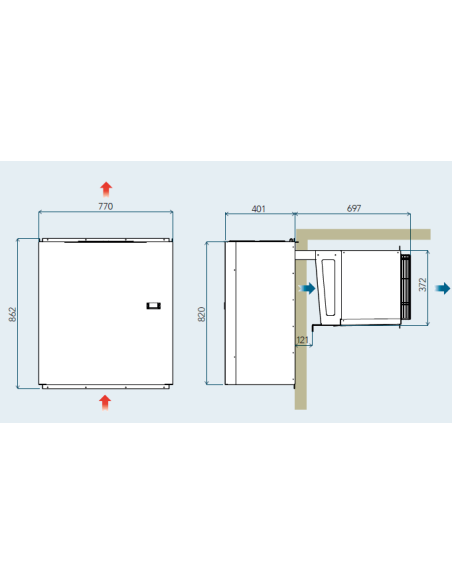

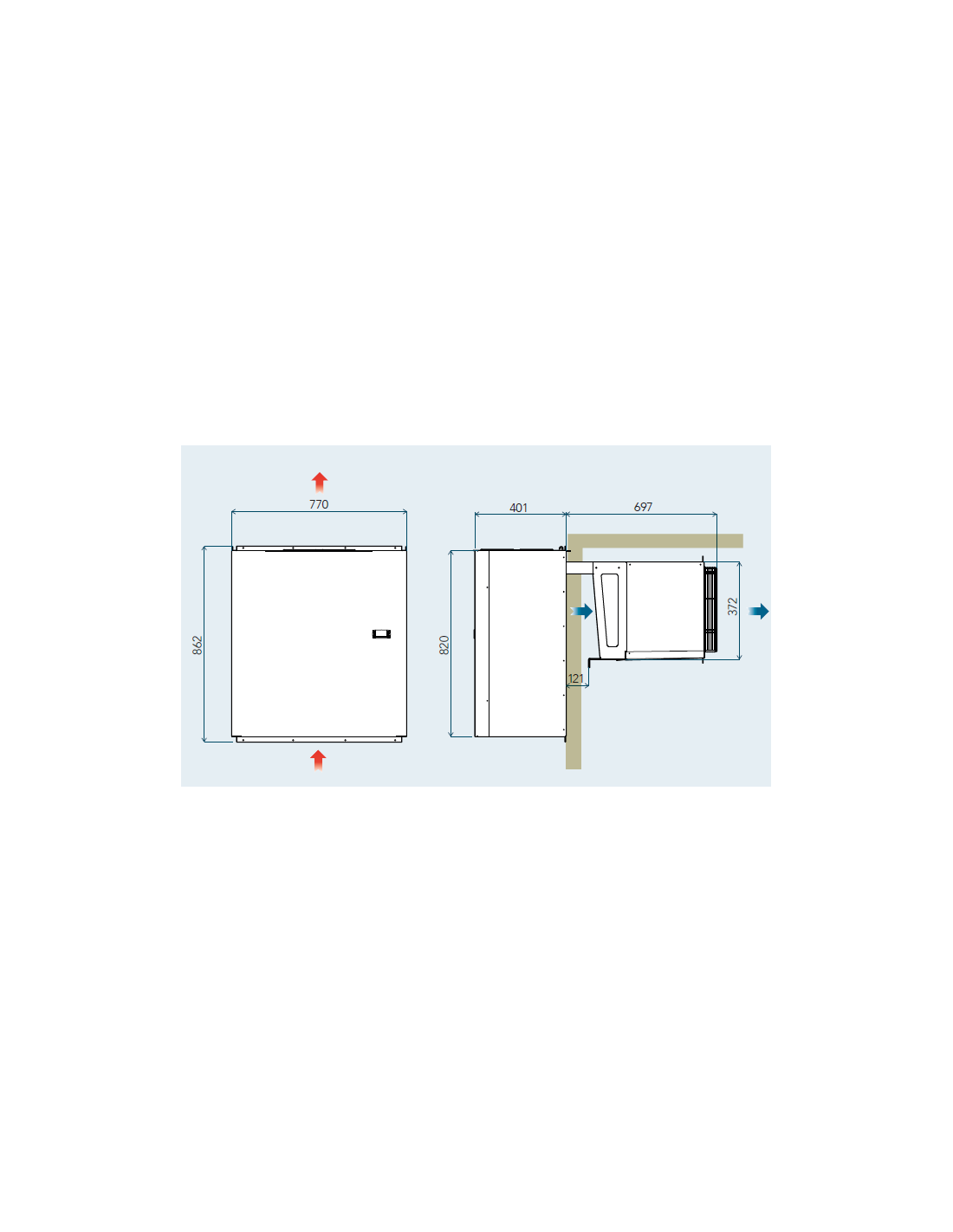

Dimensions

• Width: 770 mm

• Depth: 401 mm

• Height: 862 mm

Advantages

• Compact and easy to install

• Silent and efficient

• Rapid hot gas defrosting

• Uniform cold throughout the cell

• Eco-friendly with R455A refrigerant
