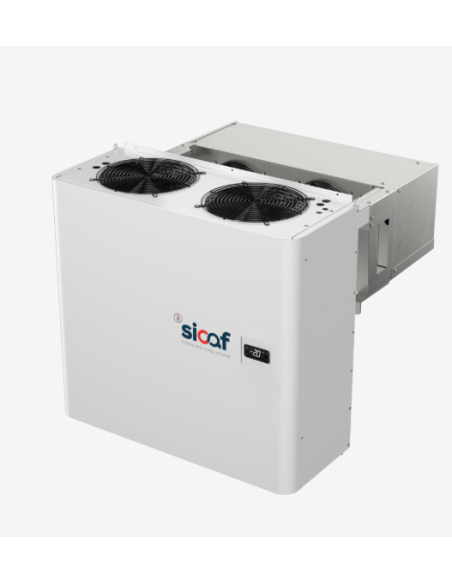

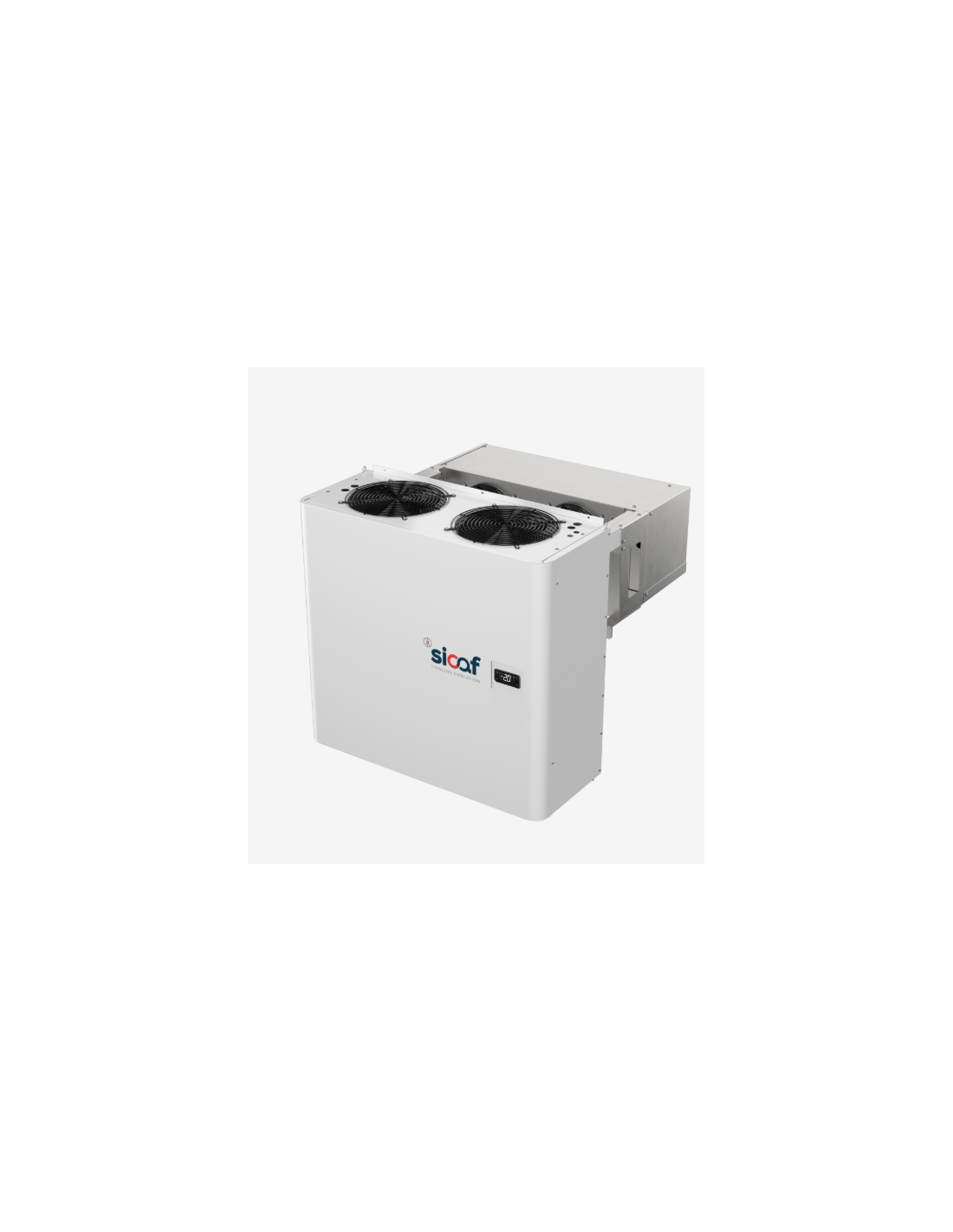

ACN122 Monobloc Wall 16.4 cubic meters
ACN122 Monobloc Wall 16.4 cubic meters
ACN122 Monobloc Wall 16.4 cubic meters
  • New
ACN122 Monobloc Wall 16.4 cubic meters
ACN122 Monobloc Wall 16.4 cubic meters
ACN122 Monobloc Wall 16.4 cubic meters

ACN122 Monobloc Wall 16.4 cubic meters

€2,589.52

The ACN122 Monoblocco Parete is a compact wall-mounted refrigeration unit ideal for cold rooms up to 16.4 m³ with TN (+5°C / -5°C) applications. Equipped with a hermetic compressor, hot gas defrost, and environmentally friendly R455A refrigerant, it guarantees high performance, reliability, and ease of installation.

Pay safely with:

Description

The ACN122 Monobloc Wall Unit 16.4 m³ is designed for wall installation in small and medium-sized cold rooms. Its compact, monobloc design allows for quick and easy installation, reducing assembly time and costs.

The unit operates in TN (+5°C / -5°C) applications, making it ideal for storing fresh products, food, and beverages. The hermetic compressor ensures silence, energy efficiency, and a long operating life.

The hot gas defrost system improves refrigeration cycle efficiency and reduces downtime. The low GWP R455A refrigerant is a modern and more sustainable choice compared to traditional refrigerants.

Thanks to the double fans on the condenser and evaporator, the airflow is optimised to ensure uniform distribution of cold inside the cell, with an air arrow of up to 5 metres.

Ideal solution for restaurants, delicatessens, supermarkets and food laboratories that require reliability and consistent performance.

Technical Data Sheet:

Application

Recommended cell volume: 16.4 m³
Working range: TN (+5°C / -5°C)
Installation type: Wall-mounted monoblock

Electrical Data
Power supply: 220-240 V / 1 Ph / 50 Hz
Current draw: 7.83 A

Refrigeration Circuit
Refrigerant: R455A
Compressor type: Hermetic
Defrosting system: Hot gas
Cooling capacity (TA 32°C / TC 5°C): 2399 W

Ventilation

Condenser: 2 fans, air flow 1600 m³/h
Evaporator: 2 fans, air flow 820 m³/h, air deflection 5 m

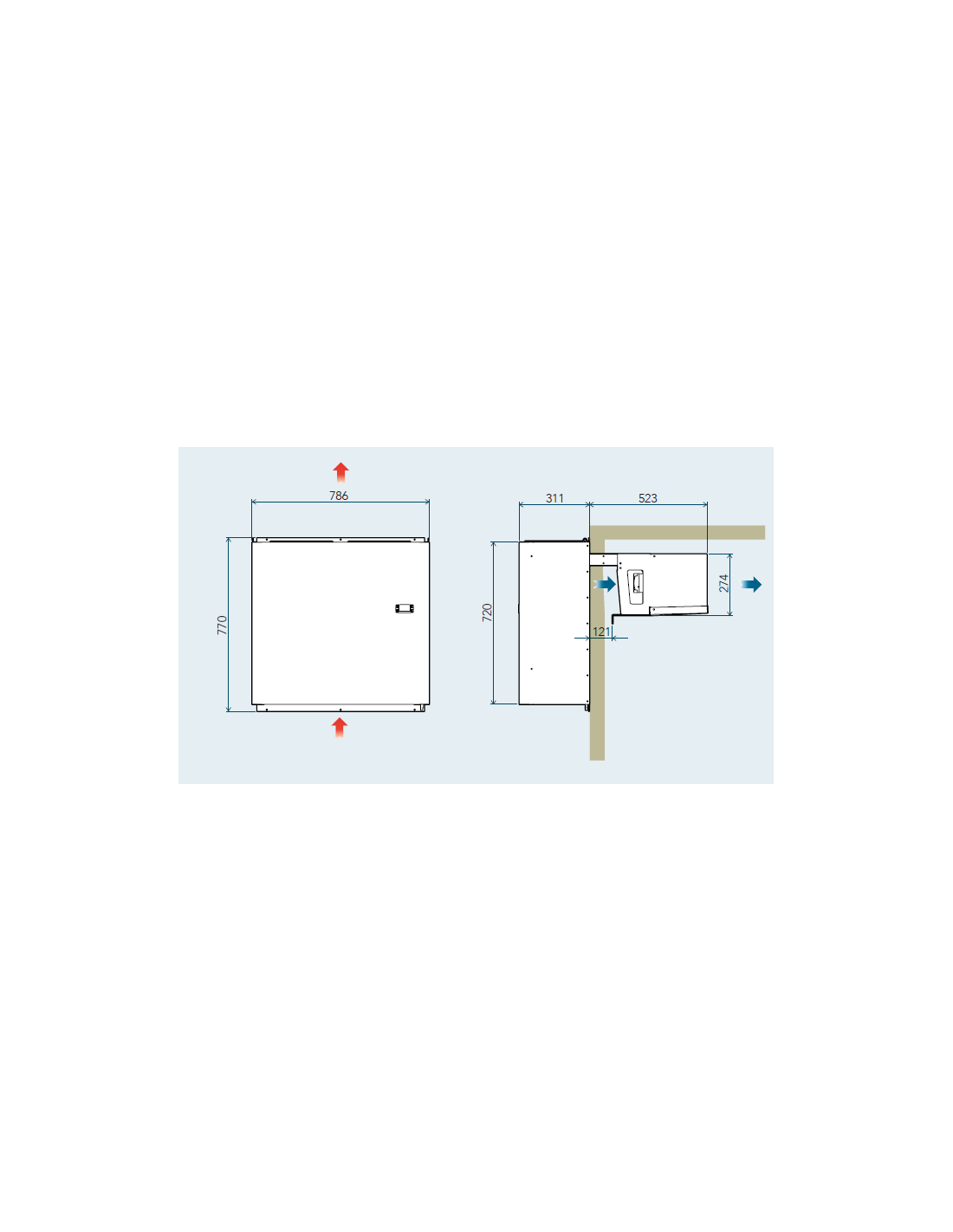

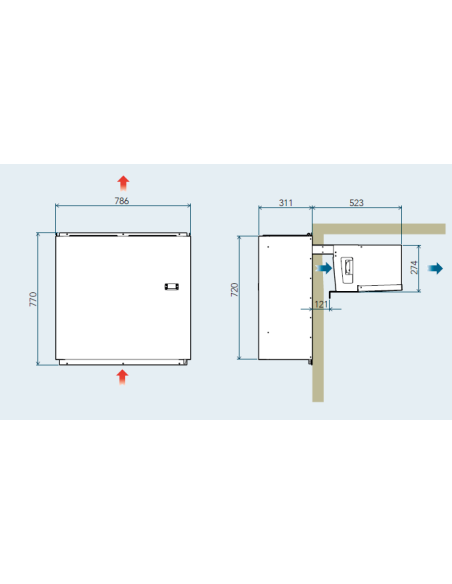

Dimensions and Weight
Width: 786 mm
Depth: 312 mm
Height: 770 mm
Weight: 73 kg

Advantages:

  • Ideal for cells up to 16.4 m³

  • Quick and easy wall installation

  • High and constant cooling performance

  • Highly reliable hermetic compressor

  • Efficient automatic defrosting

  • Uniform air distribution

  • Low energy consumption

  • Compact and resistant structure

Online sales of all monoblocks, including models not listed on the website. Contact us for availability and personalized quotes:

Email: info@polargross.com
Tel.: +39 070 543 5282
WhatsApp: +39 344 506 7526
