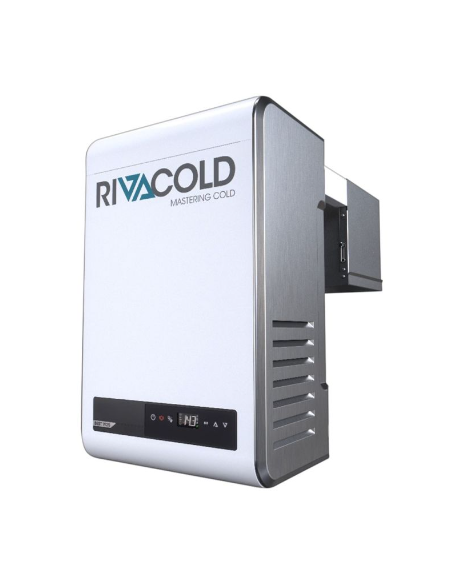

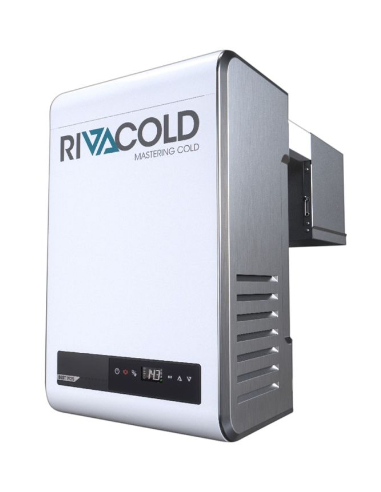

The Rivacold BEWS352MA80P12-55m³ is a compact refrigeration monoblock designed for medium-temperature cold rooms (MBP). It uses the environmentally friendly R290 refrigerant, ensuring high efficiency, low energy consumption, and reduced environmental impact.

Equipped with two hermetic Embraco compressors, it ensures reliability and continuous operation even under harsh conditions. The hot gas defrosting system optimizes performance and reduces downtime.

The Riv-olution electronic control allows intelligent management, with Smart Defrost, Leak Detector functions, Bluetooth connectivity and integration with BMS systems (Modbus RTU).

The compact, straddle structure and wall mounting make the unit easy to install and maintain, ideal for professional commercial applications.

TECHNICAL FEATURES:

Generals

• Code: BEWS352MA80P12

• Series: BEWS

• Application: MBP (medium temperature)

• Type: Compact straddle

• Mounting: Wall

• Expansion: Valve

• Exchange: Air

• Defrosting: Hot gas

• Refrigerant gas: R290 (≤150 g per circuit)

• PED: 0

• Noise level: 43 dBA (10 m)

Compressor

• Number of compressors: 2

• Type: Hermetic

• Brand: Embraco

• Voltage: 400V / 3A / 50Hz

• Displacement: 2 × 27.8 cm³

Ventilation

• Condenser: 1 fan, diameter 350 mm, air flow 2540 m³/h

• Evaporator: 1 fan, diameter 350 mm, air arrow 8 m, air flow 2740 m³/h

Absorptions

• Power consumption: 2440 W

• Current consumption: 4.40 A

• Maximum current: 7.20 A

Dimensions and weight

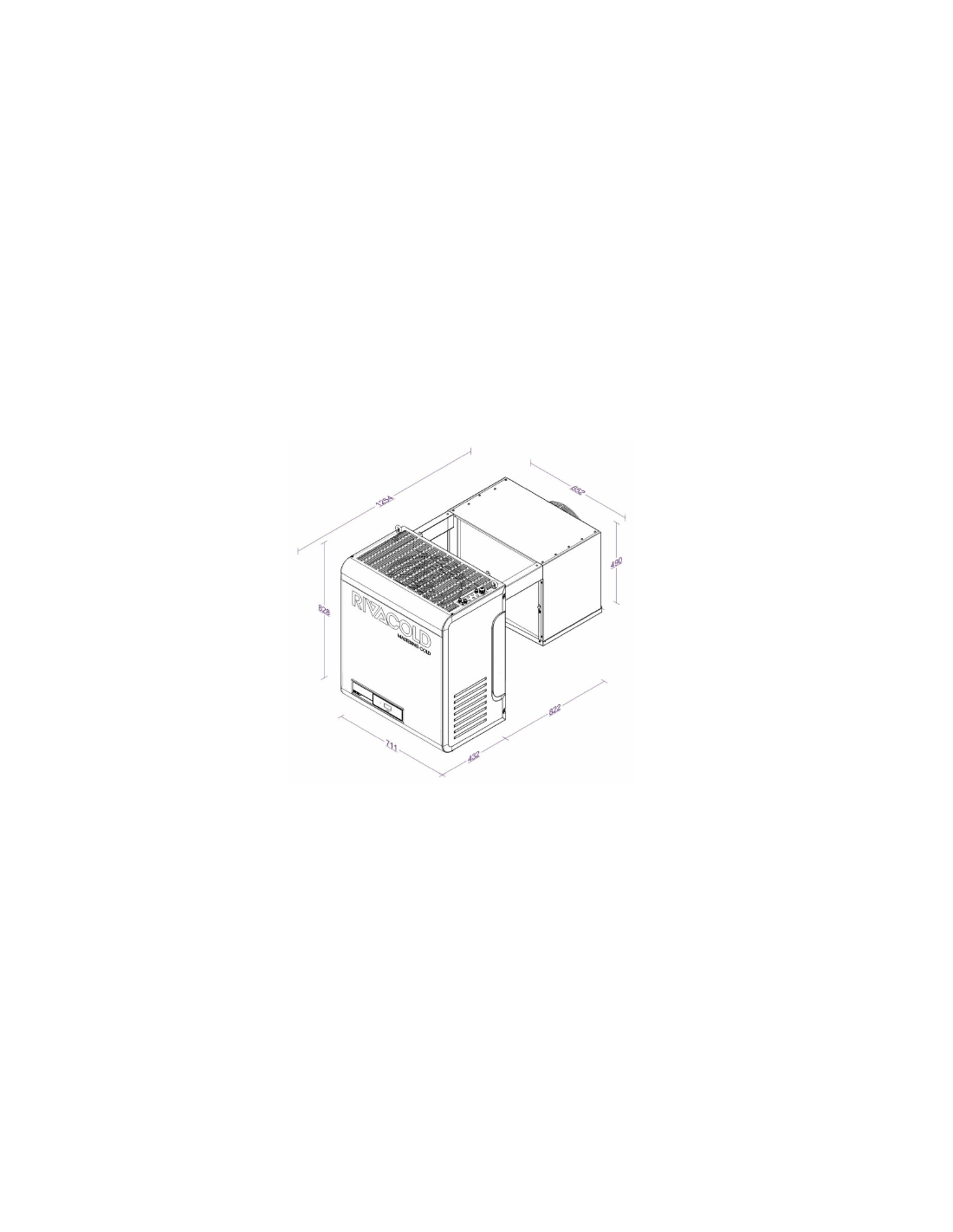

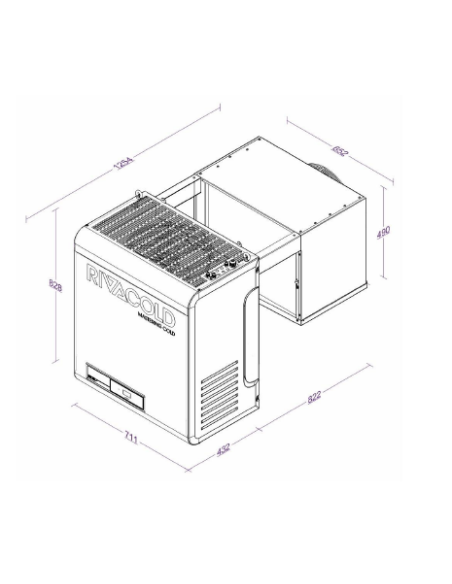

• Dimensions (W×D×H): 711 × 1254 × 828 mm

• Package dimensions (W×D×H): 845 × 1370 × 980 mm

• Net weight: 103 kg

• Gross weight: 132 kg

COOLING PERFORMANCE

Room temperature 25°C

• Cell -5°C → 3622 W – 48.4 m³

• Cell 0°C → 4144 W – 70.1 m³

• Cell 5°C → 4697 W – 103.0 m³

• Cell 10°C → 5279 W – 156.0 m³

• Cell 15°C → 5885 W – 251.0 m³

Room temperature 32°C

• Cell -5°C → 3386 W – 38.0 m³

• Cell 0°C → 3877 W – 55.0 m³

• Cell 5°C → 4399 W – 80.9 m³

• Cell 10°C → 4950 W – 122.0 m³

• Cell 15°C → 5526 W – 196.0 m³

Room temperature 38°C

• Cell -5°C → 3175 W – 29.8 m³

• Cell 0°C → 3643 W – 43.5 m³

• Cell 5°C → 4142 W – 64.0 m³

• Cell 10°C → 4670 W – 96.5 m³

• Cell 15°C → 5223 W – 153.0 m³

Room temperature 43°C

• Cell -5°C → 3001 W – 23.7 m³

• Cell 0°C → 3453 W – 34.8 m³

• Cell 5°C → 3936 W – 51.6 m³

• Cell 10°C → 4447 W – 77.6 m³

• Cell 15°C → 4983 W – 121.0 m³

For cell temperatures >10°C, maximum ambient temperature 38°C
