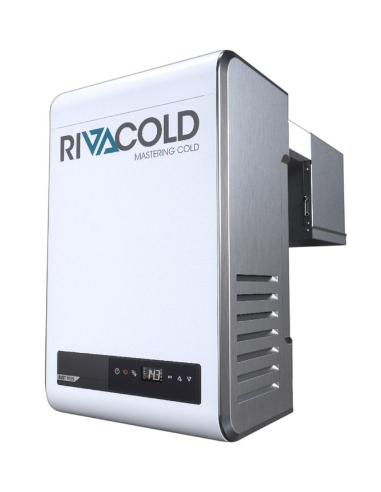

The Rivacold BEWS352MA70P12- 45.6m³ is a compact refrigeration unit designed for medium-temperature cold rooms (MBP), ideal for commercial and professional applications. It uses the environmentally friendly R290 refrigerant, ensuring high energy efficiency and low environmental impact.

Equipped with two hermetic Embraco compressors, it ensures reliability and continuous operation. The hot gas defrost system optimizes cooling performance, reducing downtime.

The Riv-olution electronic control allows intelligent management, with Smart Defrost, Leak Detector functions, Bluetooth connectivity and integration with BMS systems (Modbus RTU).

The compact, overlapping structure, with wall mounting, ensures quick installation and easy maintenance.

TECHNICAL FEATURES:

• Code: BEWS352MA70P1245.6m³

• Series: BEWS

• Application: MBP (medium temperature)

• Type: Compact straddle

• Mounting: Wall

• Expansion: Valve

• Exchange: Air

• Defrosting: Hot gas

• Refrigerant gas: R290 (≤150 g per circuit)

• PED: 0

• Noise level: 40.1 dBA (at 10 m)

Compressor

• Number of compressors: 2

• Type: Hermetic

• Brand: Embraco

• Voltage: 400V / 3A / 50Hz

• Displacement: 2 × 21 cm³

Ventilation

Capacitor

• Fans: 1

• Diameter: 350 mm

• Air flow: 2540 m³/h

Evaporator

• Fans: 1

• Diameter: 350 mm

• Air arrow: 8 m

• Air flow: 2740 m³/h

Absorptions

• Power consumption: 1900 W

• Current consumption: 3.4 A

• Maximum current: 5.2 A

Dimensions and weight

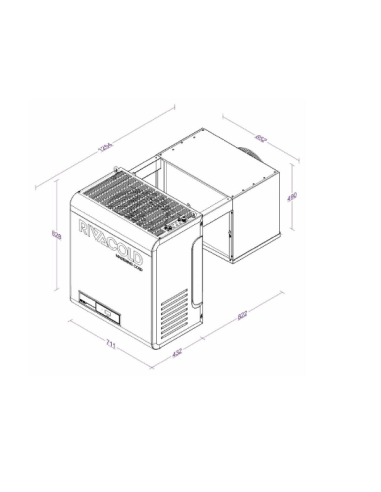

• Dimensions (W×D×H): 711 × 1254 × 828 mm

• Package dimensions (W×D×H): 845 × 1370 × 980 mm

• Net weight: 92 kg

• Gross weight: 121 kg

COOLING CAPACITY:

Room temperature 25°C

• Cell -5°C → 3077 W – 39.8 m³

• Cell 0°C → 3540 W – 58.4 m³

• Cell 5°C → 4038 W – 86.8 m³

• Cell 10°C → 4566 W – 133.0 m³

• Cell 15°C → 5120 W – 216.0 m³

Room temperature 32°C

• Cell -5°C → 2887 W – 31.0 m³

• Cell 0°C → 3325 W – 45.6 m³

• Cell 5°C → 3793 W – 67.7 m³

• Cell 10°C → 4287 W – 104.0 m³

• Cell 15°C → 4802 W – 168.0 m³

Room temperature 38°C

• Cell -5°C → 2715 W – 24.1 m³

• Cell 0°C → 3127 W – 35.7 m³

• Cell 5°C → 3567 W – 53.0 m³

• Cell 10°C → 4028 W – 80.5 m³

• Cell 15°C → 4507 W – 128.0 m³

Room temperature 43°C

• Cell -5°C → 2564 W – 19.0 m³

• Cell 0°C → 2953 W – 28.1 m³

• Cell 5°C → 3366 W – 41.7 m³

• Cell 10°C → 3799 W – 63.3 m³

• Cell 15°C → 4245 W – 99.5 m³

For cell temperatures >10°C, maximum ambient temperature 38°C
