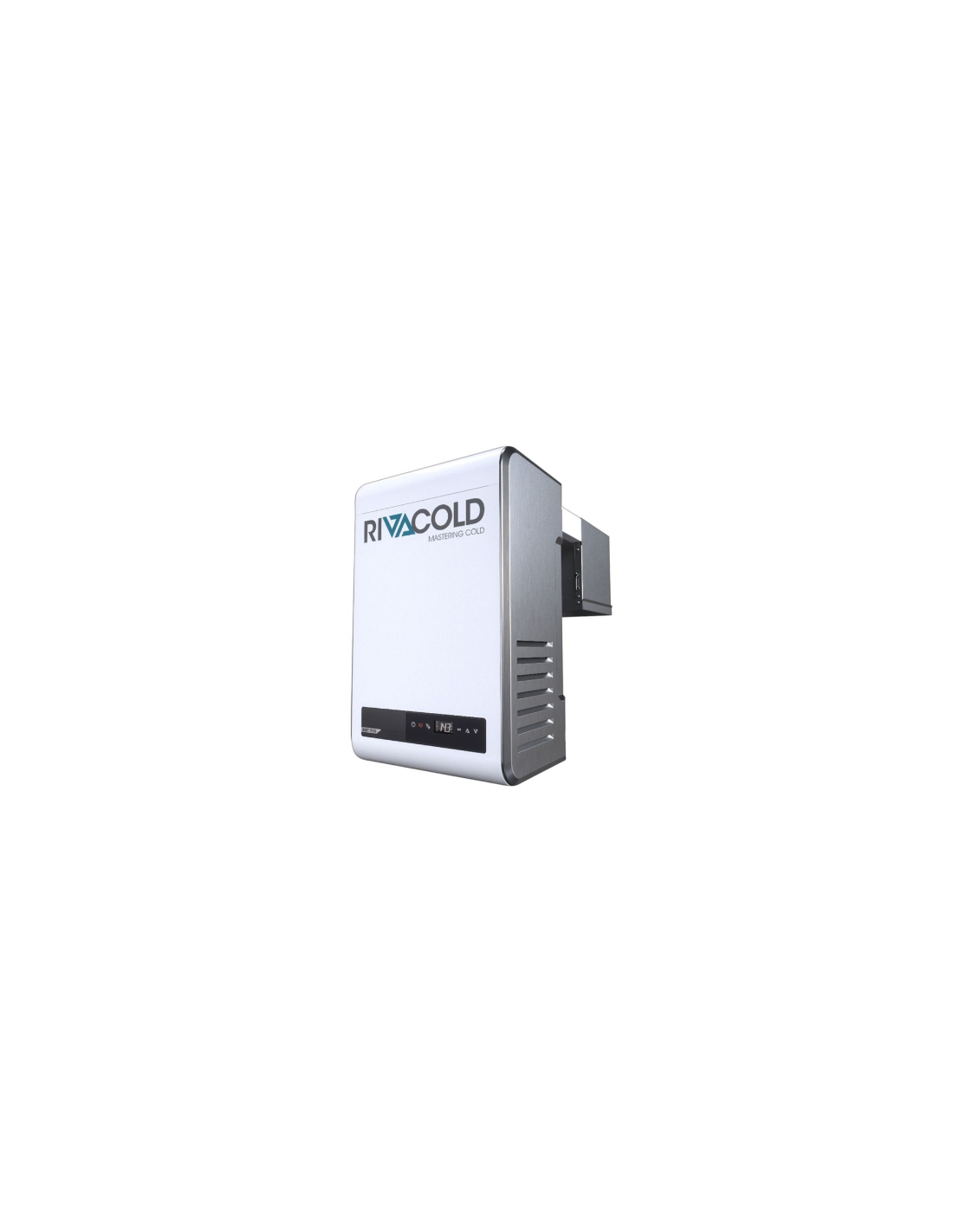

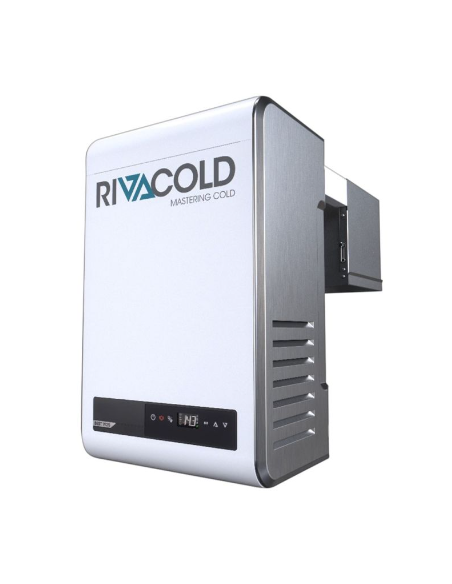

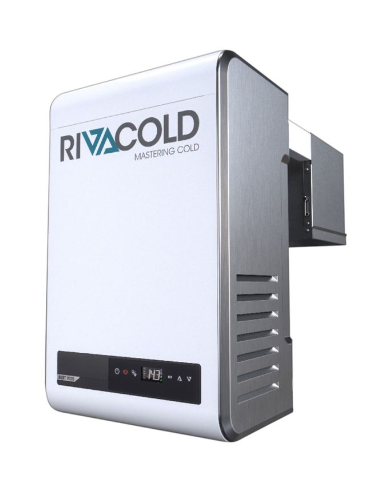

The Rivacold BEWS352MA60P11 is a compact refrigeration monoblock designed for medium-temperature cold rooms (MBP). It uses R290 natural refrigerant, ensuring high cooling performance, low energy consumption, and reduced environmental impact.

Equipped with two Embraco hermetic compressors, it ensures reliability, continuous operation, and excellent performance even in harsh environmental conditions. The hot gas defrost system improves operating efficiency and reduces system downtime.

The Riv-olution electronic control allows intelligent management of the unit, with advanced functions such as Smart Defrost, Leak Detector, Bluetooth connectivity and the possibility of integration with BMS systems via Modbus RTU protocol.

The self-supporting structure, overlapping design and wall mounting make the monoblock easy to install and maintain, ideal for commercial and professional applications in the refrigeration sector.

TECHNICAL FEATURES:

Generals

• Code: BEWS352MA60P11

• Series: BEWS

• Application: MBP

• Type: Compact overlapping monoblock

• Mounting: Wall

• Expansion: Valve

• Exchange: Air

• Defrosting: Hot gas

• Refrigerant gas: R290 (≤ 150 g per circuit)

• PED: 0

Compressor

• Number of compressors: 2

• Type: Hermetic

• Brand: Embraco

• Voltage: 230V / 1 / 50Hz

• Displacement: 2 × 18.7 cm³

Ventilation:

Capacitor

• Fans: 1

• Diameter: 350 mm

• Air flow: 2540 m³/h

Evaporator

• Fans: 1

• Diameter: 350 mm

• Air arrow: 8 m

• Air flow: 2740 m³/h

Absorptions

• Power consumption: 1680 W

• Current draw: 9.0 A

• Maximum current: 12.7 A

Noise

• Sound level: 39.2 dBA (at 10 m)

Dimensions and weight

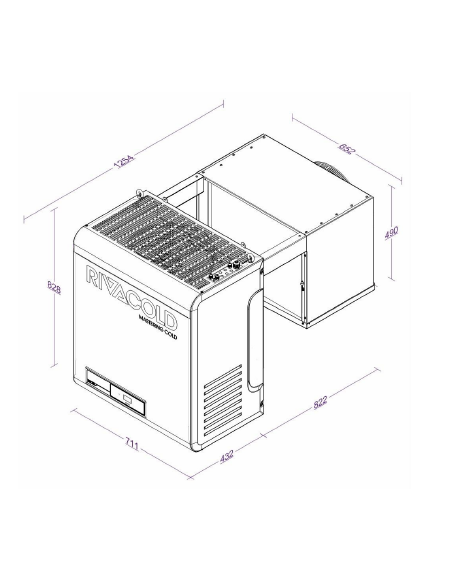

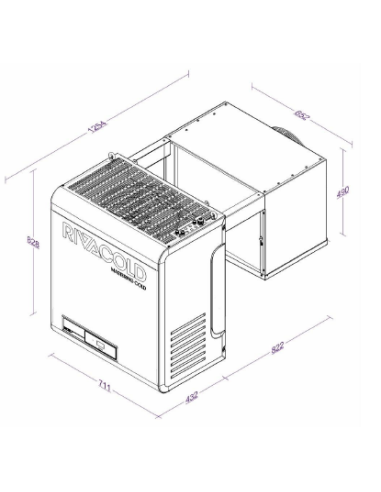

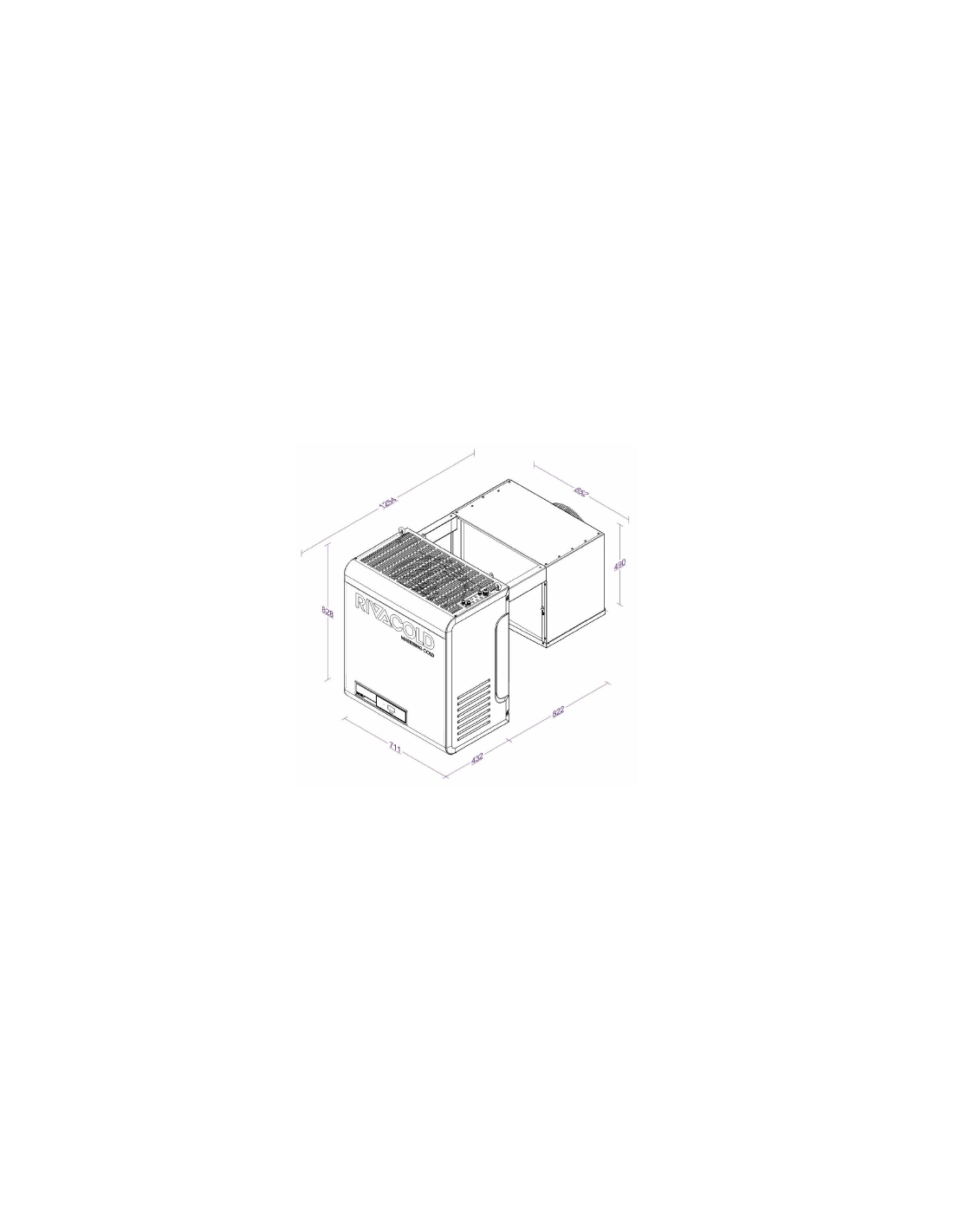

• Dimensions (W×D×H): 711 × 1254 × 828 mm

• Package dimensions (W×D×H): 845 × 1370 × 980 mm

• Net weight: 92 kg

• Gross weight: 121 kg

COOLING CAPACITY:

Room temperature 25°C

• Cell -5°C → 2850 W – 36.3 m³

• Cell 0°C → 3291 W – 53.5 m³

• Cell 5°C → 3768 W – 80.3 m³

• Cell 10°C → 4277 W – 124.0 m³

• Cell 15°C → 4814 W – 203.0 m³

Room temperature 32°C

• Cell -5°C → 2670 W – 28.1 m³

• Cell 0°C → 3085 W – 41.5 m³

• Cell 5°C → 3533 W – 62.2 m³

• Cell 10°C → 4009 W – 96.1 m³

• Cell 15°C → 4509 W – 156.0 m³

Room temperature 38°C

• Cell -5°C → 2507 W – 21.6 m³

• Cell 0°C → 2900 W – 32.3 m³

• Cell 5°C → 3321 W – 48.4 m³

• Cell 10°C → 3766 W – 74.1 m³

• Cell 15°C → 4231 W – 118.0 m³

Room temperature 43°C

• Cell -5°C → 2367 W – 16.8 m³

• Cell 0°C → 2738 W – 25.3 m³

• Cell 5°C → 3134 W – 37.9 m³

• Cell 10°C → 3552 W – 58.0 m³

• Cell 15°C → 3987 W – 91.9 m³
  For cell temperatures >10°C, maximum ambient temperature +38°C
