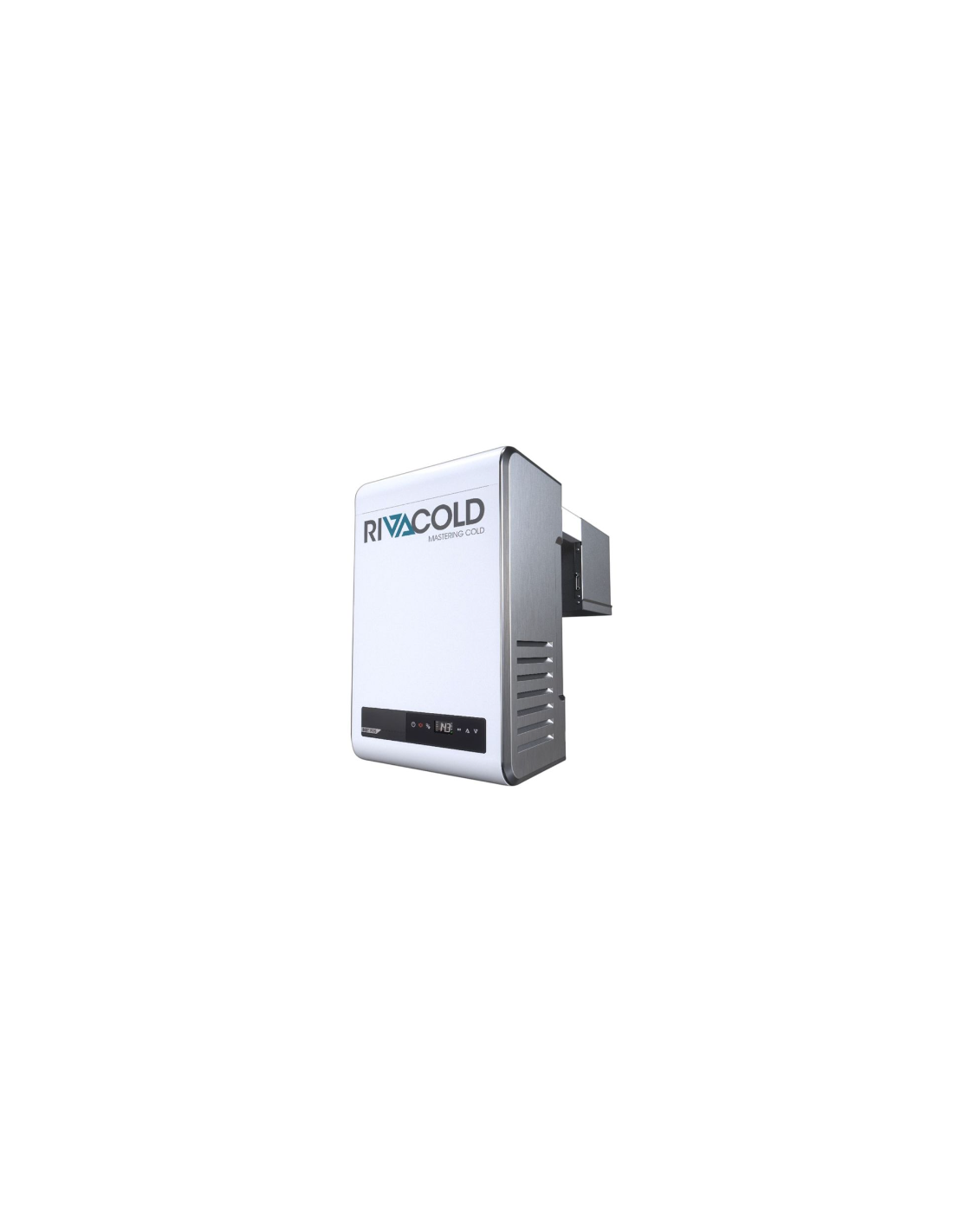

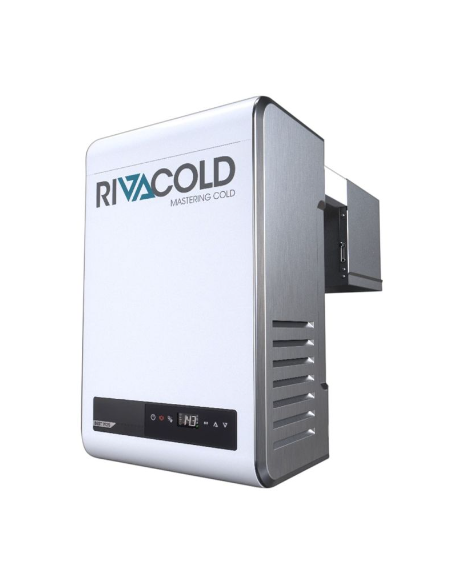

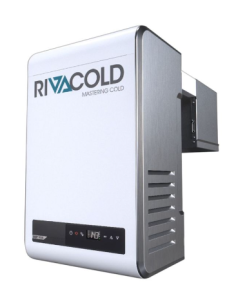

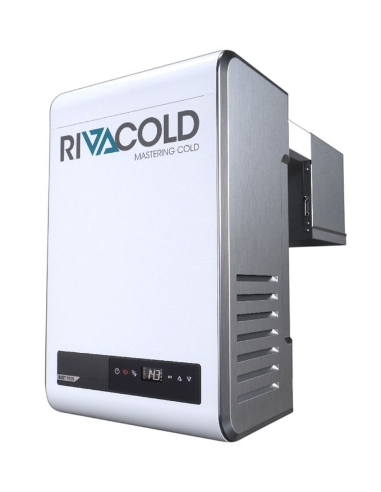

The BEWS251MA10P11- 8.3m³ compact refrigeration unit is designed for low-temperature (LT) applications in cold rooms. It uses R290 gas, ensuring high efficiency and low environmental impact.

The 12.2 cm³ Embraco hermetic compressor, hot gas defrost, and electronic fans on the evaporator and condenser ensure reliable performance in all operating conditions. The unit supports room temperatures from -5°C to +15°C and ambient temperatures from 25°C to 43°C, with cooling capacity from 882 W to 1459 W, for rooms up to 54.4 m³.

The compact, overlapping design and wall-mounting option allow for quick and safe installation. Includes a mechanical thermostatic valve, condensation tray, cables, and plugs, as well as Riv-olution electronic control with Bluetooth, a dedicated app, and BMS compatibility.

Available options: remote panel kit, cable extension kit, Master & Slave predisposition, IoT for remote monitoring, cataphoresis treatment of the exchangers.

Technical features:

Code BEWS251MA10P11- 8.3m³
BEWS Series
MBP Application
R290 refrigerant gas
Compact Type
Overlapping Version

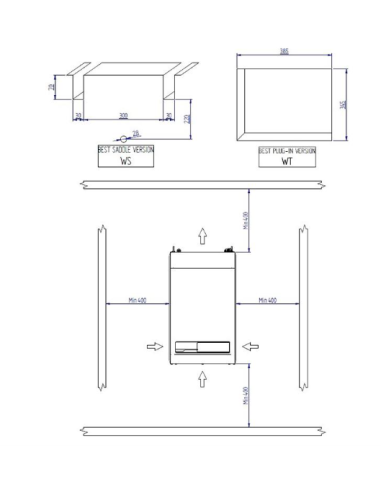

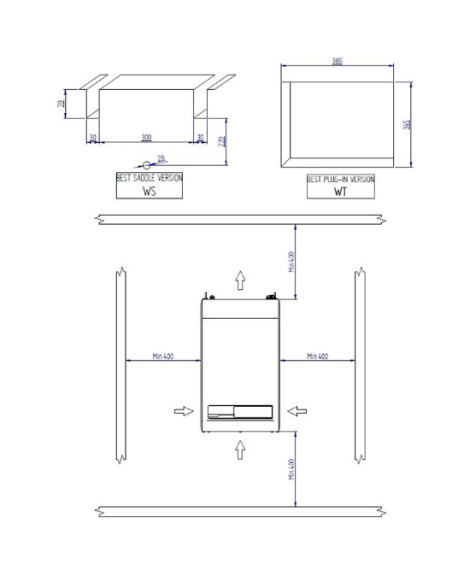

Wall Mounting
Expansion Valve
Air Exchange
Hot gas defrosting
PED 0
Noise level 32.10 dBA at 10 m

Compressor
Number of compressors 1
Compressor type: Hermetic
Embraco compressor brand
Compressor voltage 230/1/50
Compressor displacement 12.20 cm³

Capacitor
Number of fans 1
Fan diameter 254 mm
Condenser air flow rate 600 m³/h

Evaporator
Number of fans 1
Fan diameter 200 mm
Air arrow 6.50 m
Evaporator air flow rate 500 m³/h

Absorptions
Power consumption 570 W
Current draw 3.10 A
Maximum current 5.30 A

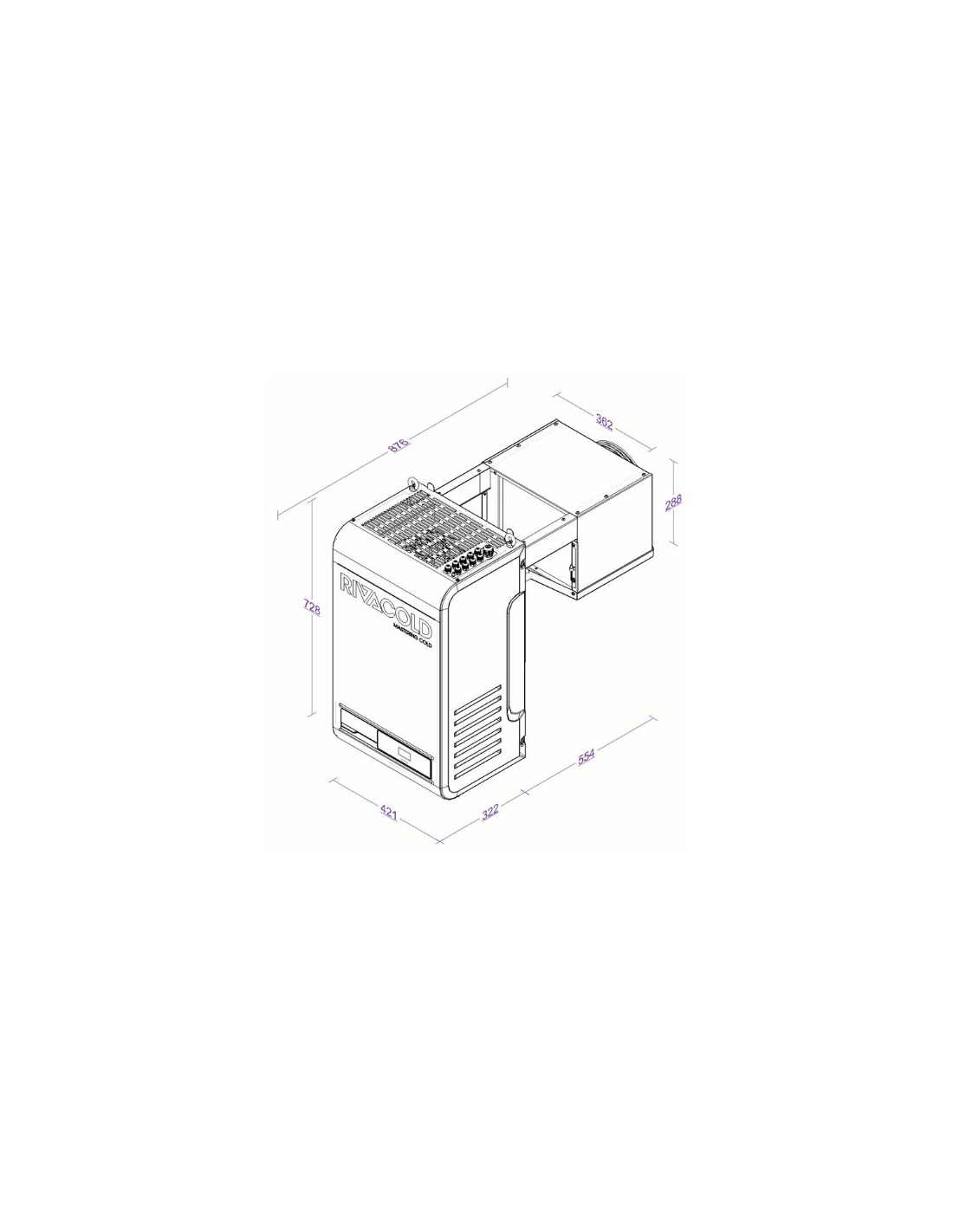

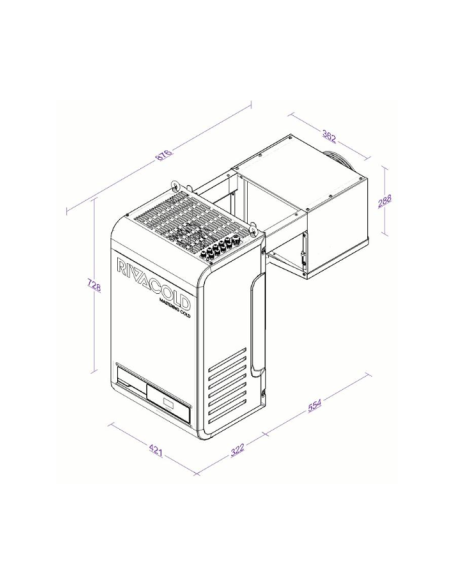

Dimensions
Width 421 mm
Depth 876 mm
Height 728 mm

Packaging dimensions
Packaging width 500 mm
Packaging depth 970 mm
Packaging height 980 mm

Weight
Net weight 46 kg
Gross weight 57 kg

Temperature class Low temperature (LT)

Field of use
Ambient temperature 25°C to 43°C

Cell temperature
From -5 °C to +15 °C

Indicative cell volume
From 3.20 to 54.40 m³

Refrigeration capacity
From 737 to 1459 W

Terms of reference
Data valid with forced air
For cell temperature >10°C, maximum ambient temperature +38°C
