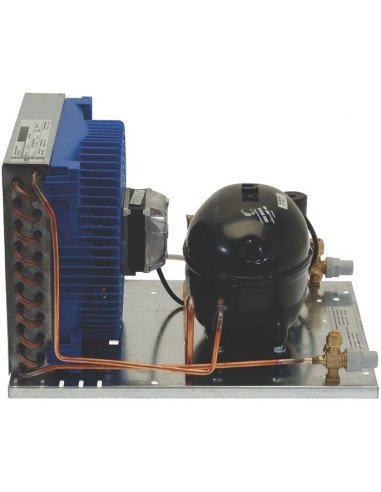

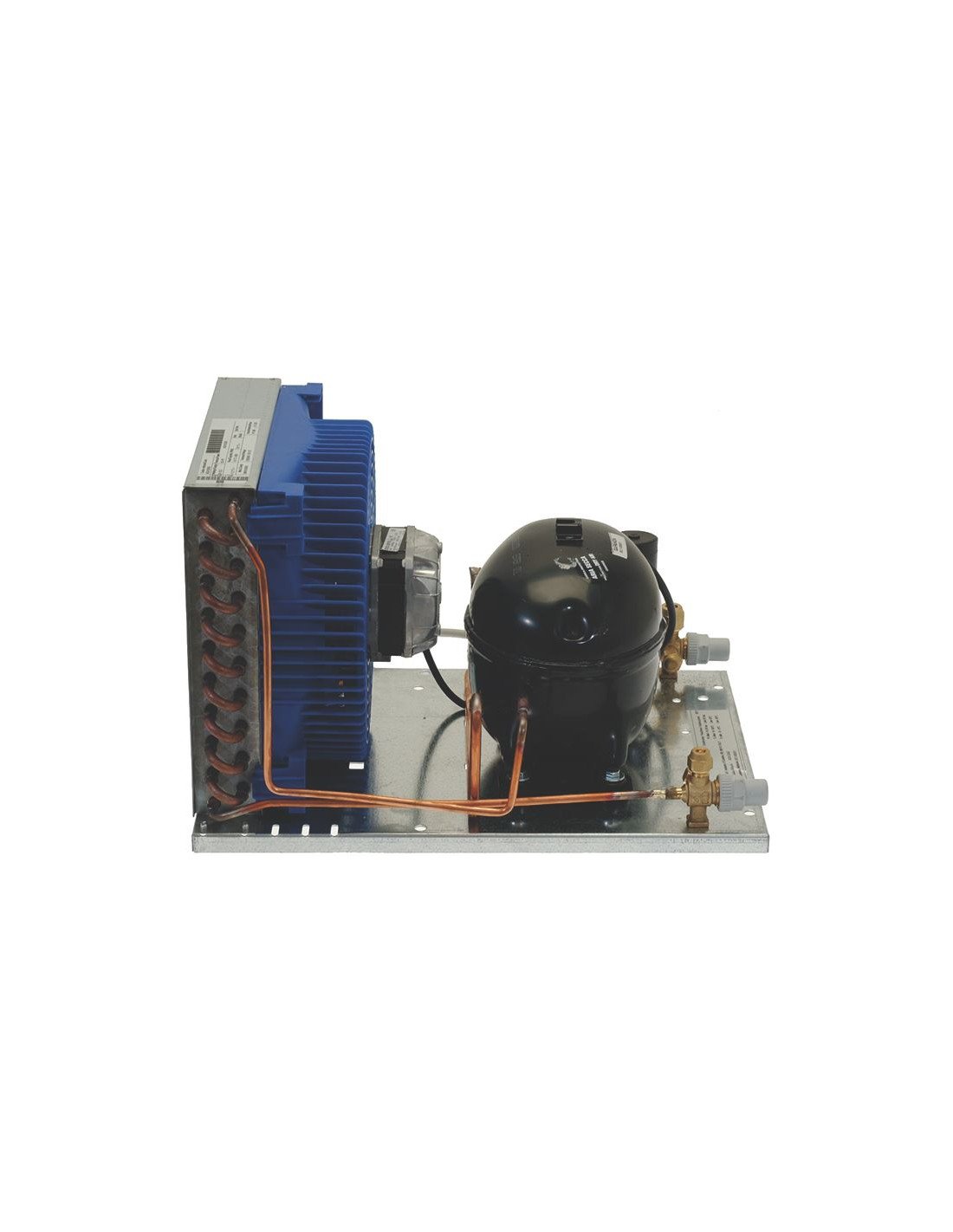

The condensing unit with EMBRACO EMT6152GK compressor is designed for HMBP (Medium/High Back Pressure) applications in commercial refrigeration. The hermetic EMBRACO EMT6152GK compressor offers high reliability and compatibility with R404A and R452A.

The system integrates a capillary expansion, providing simple and stable control of the refrigeration cycle without an electronic valve.

With 230 V – 50 Hz power supply, suction connection 10 mm / liquid 6 mm, and compact dimensions 300×420×276 mm, this unit is perfect for refrigerated display cabinets, counters, and cold rooms. The professional design ensures quick installation, easy maintenance, and maximum energy efficiency.

Technical data:

Unit type: Hermetic unit with capillary expansion

Compressor: EMBRACO EMT6152GK

Compressor displacement: 4.50 cm³

Power: 1/5 HP (~0.18 kW)

Power supply: 230 V – 50 Hz single-phase

Refrigerant: R404A / R452A

Operating range: HMBP (Medium/High Back Pressure)

Connections:

Suction: 3/8″ – 10 mm

Liquid: 1/4″ – 6 mm

Expansion: Capillary

Dimensions: 420 × 300 × 276 mm (L × D × H)

Weight: kg (to be completed according to specific model)

Adaptability: 02048.71 MTH

Applications: Refrigerated display cabinets, counters, positive cold rooms

Additional features:

Reliable for HMBP commercial refrigeration

Ready-to-use system with integrated compressor and condenser

Compact installation and simplified maintenance
