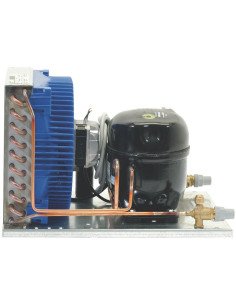

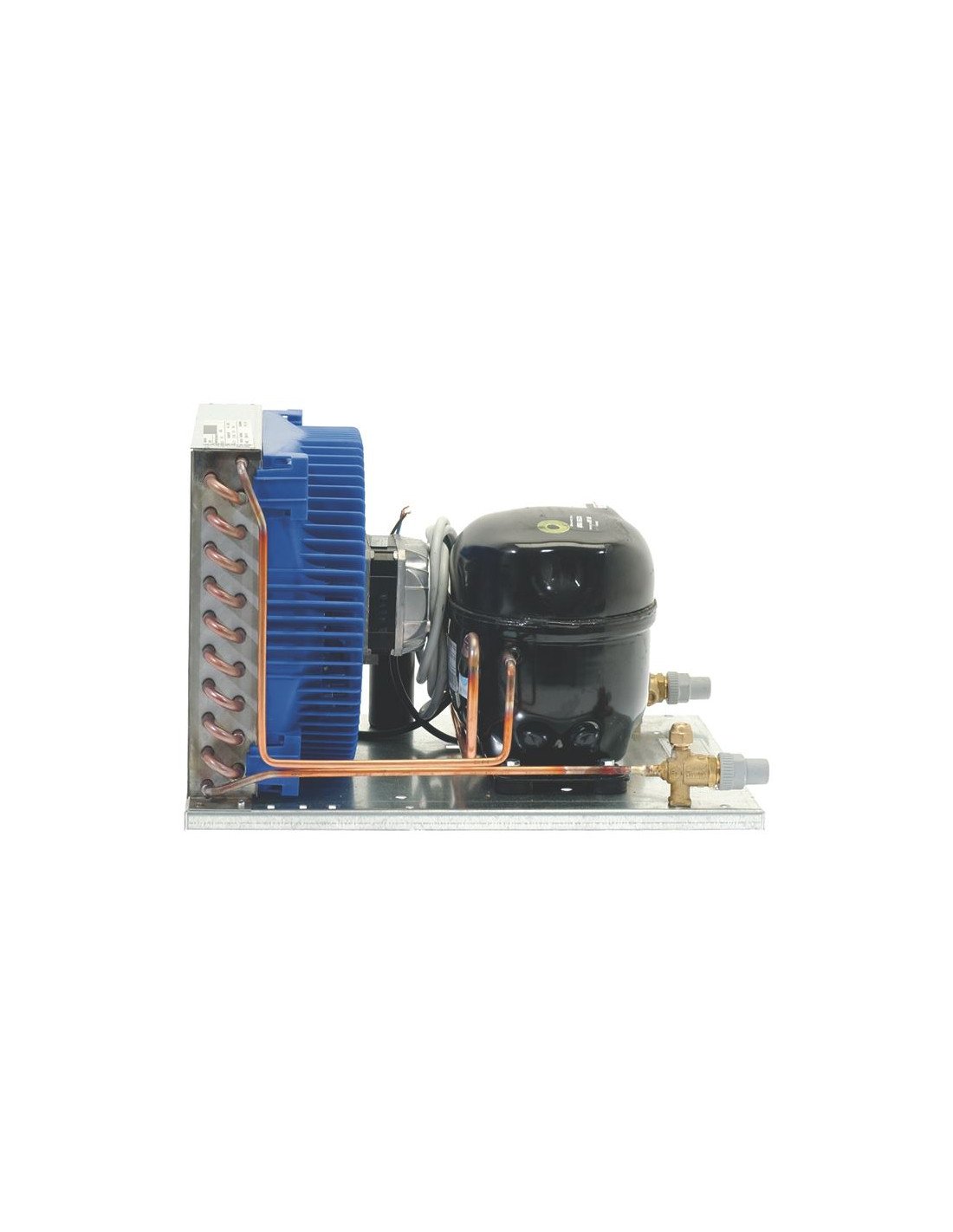

The condensing unit with EMBRACO EMT6160Z compressor is designed for HMBP (Medium/High Back Pressure) applications in commercial refrigeration. The EMBRACO EMT6160Z hermetic compressor provides high reliability and optimal performance with R134a refrigerant.

The system features capillary expansion, simplifying installation and cycle control without the need for an electronic expansion valve. With 230 V – 50 Hz power supply, 10 mm suction / 6 mm liquid connections, and compact dimensions of 460×300×275 mm, this unit is ideal for refrigerated counters, display cases, and positive cold rooms. Professional design, simple maintenance, and long-lasting durability guaranteed.

Technical Sheet:

Unit type: Hermetic unit with capillary expansion

Compressor: EMBRACO EMT6160Z

Compressor displacement: 6.76 cm³

Power: 1/4L HP

Power supply: 230 V – 50 Hz single-phase

Refrigerant: R134a

Operating range: HMBP (Medium/High Back Pressure)

Pipe connections:

Suction: 3/8″ – 10 mm

Liquid: 1/4″ – 6 mm

Expansion: Capillary

Dimensions (L × P × H): 460 × 300 × 275 mm

Weight: (to be completed according to model)

Compatibility: 02065.7 MTH

Recommended applications:

Commercial refrigerated counters

Refrigerated display cases

Positive cold rooms

Additional features:

Quick installation and easy maintenance

Reliable for continuous use

Optimized for energy efficiency
