STATIC EVAPORATOR FOR COLD ROOM 1500X1000X140 mm
€601.08
The CTM 1510/16 evaporator is a component designed for use in cold rooms.
Description
The main technical specifications of the CTM 1510/16 are:
- Number of tubes : 20
- Exchange surface area : 25.35 m²
- Cooling capacity : 2065 W with R452A refrigerant and ΔT of 10K

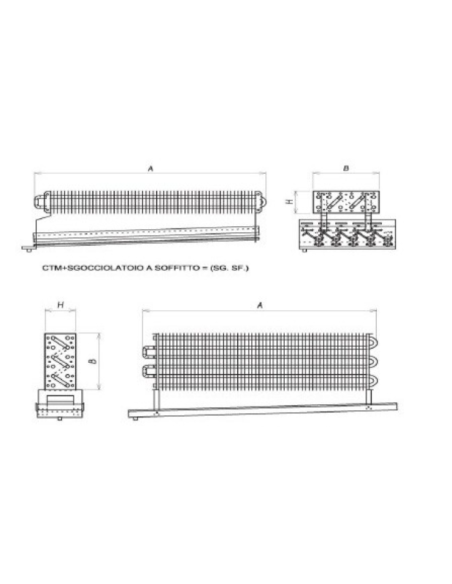

- Dimensions (L x W x H) : 1500 x 1000 x 140 mm

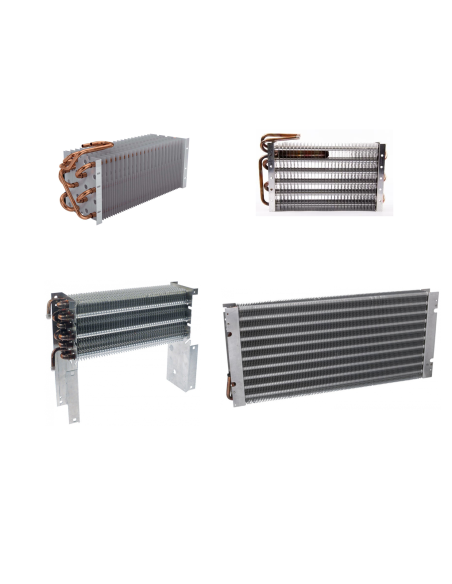

Available in different models based on the product characteristics.
Product Details
- Dimensions
- 1500 x 1000 x 140 mm
- Capacity
- 2065 W
- Tubes
- 20
- Surface
- 25.35 m²
