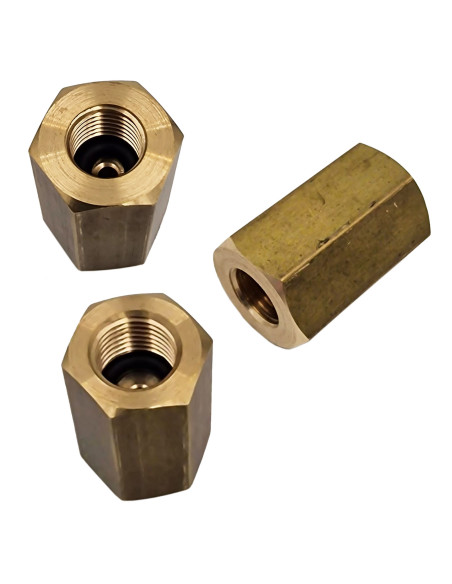

Mastercool high precision refill scale for refrigerant gases, with plastic case - capacity 5 kg +/- 1 gram, complete with 3 adapters (7/16 20-UNF female outlet for connection to 1 litre R600a and R290 cylinders, 1/4 SAE right female outlet and 5/16 SAE right female outlet for connection to 1 litre and 2.5 litre R134a, R410A, R407C, R32, R422D cylinders etc.)

Mastercool’s high precision refill scale accurately measures small refrigerant cylinders for refill systems requiring precise refilling.

It comes complete with a plastic case, charging hose with check valve and cylinder support base complete with ¼" SAE male connection with non-return valve.

CHARACTERISTICS:
-Hex bottle adapter included, for easy attachment of the refrigerant bottle to the scale
-Designed for use with 1 litre R600a and R290 canisters
-The built-in check valve retains any remaining refrigerant inside the connecting pipe (length 900 mm.)
-Compact design, for easy storage
-Two-button keypad for easy operation
-Change units (grams and ounces)
-One touch tare function
-Automatic zero
-Auto power off automatically activates if the scale is not used for 3 hours

TECHNICAL SPECIFICATIONS:
-Capacity: 5,000 grams
-Sensitivity: 1 gram
-Charging capacity: accuracy up to 1 gram
-Dimensions: 140 (l) x 185 (w) x 40 (h) mm
-Power supply: 3 x 1.5V AAA batteries.
-Assembly: 1/4 ” SAE M flared connection with non-return valve
