Wired temperature transducer for pipe from 3/4 up to 4 1/8

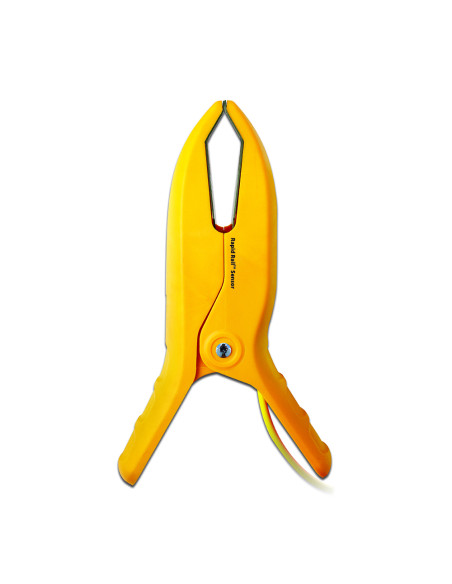

Fieldpiece USA - TC48 - Wired Temperature Transducer for 3/4 to 4 1/8 Pipe
Description
TC48 - Large temperature probe for pipes from ¾" up to 4"⅛ (max diameter 104.8 mm.)
Simply the greatest.
Works on 3/4" to 4 1/8" tubing
Perfect for commercial and refrigeration applications
One-handed operation
Extremely precise and fast
Compact design
Comfortable and ergonomic grip

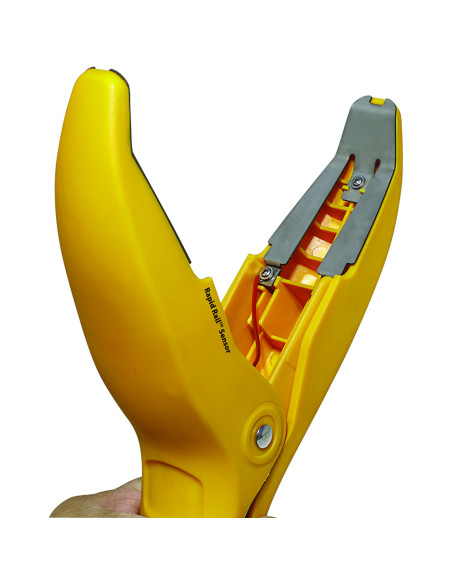

Rapid Rail™ sensor technology quickly measures temperature
Bigger and more accurate. If you need to measure temperatures on larger pipes, get a TC48 Large Pipe Clamp. It uses Rapid Rail™ sensor technology to measure temperatures quickly – in an instant.
It is not affected by ambient air, wind or humidity on the tube.
Capable of measuring pipe up to 4 1/8" (104.8mm) the TC48 probe is the largest on the market, making it the ideal solution for commercial and refrigeration work.
But not too big.
TC48 is designed so that it can be easily operated with one hand, which is useful for hard-to-reach pipes.
Plus, with an extra-long 1.8 meter cable, you no longer have to bend over while measuring pipe temperatures (your back will thank you!).
The features of the TC48:
Compatibility of the contact surface of the electrically conductive tube
Jaw range between 3/4" and 4 1/8" pipe diameter (19mm to 104.8mm)
Thermocouple with Rapid Rail™ sensor technology (nickel chromium / nickel aluminum)
Mini K-type male plug for universal fit
Measuring range: -50°F to 257°F (-46°C to 125°C)
It stabilizes in a few seconds
±1.0°F (±0.6°C) after field calibration
Waterproof, rugged and built to withstand the rigors of field use
Meets California Title 24 requirements
What's included:
(1) TC48 Large Pipe Clamp Thermocouple
(1) Emery cloth for cleaning pipes
