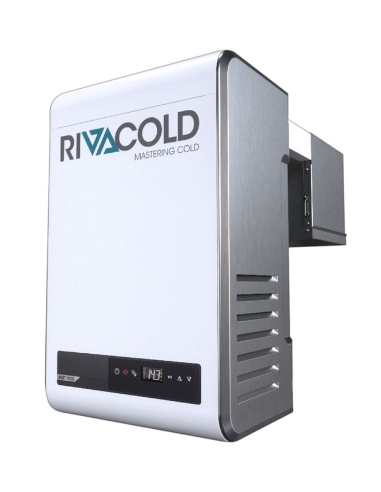

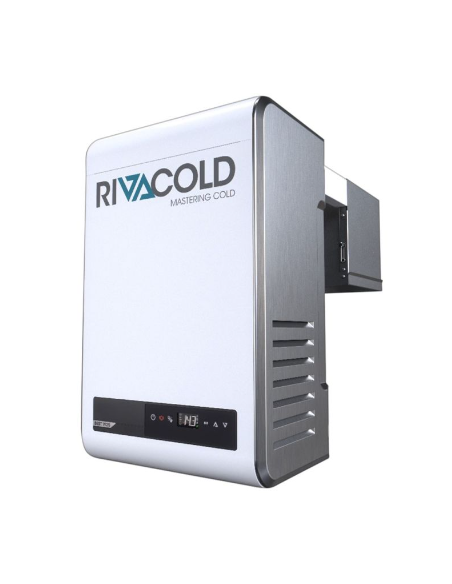

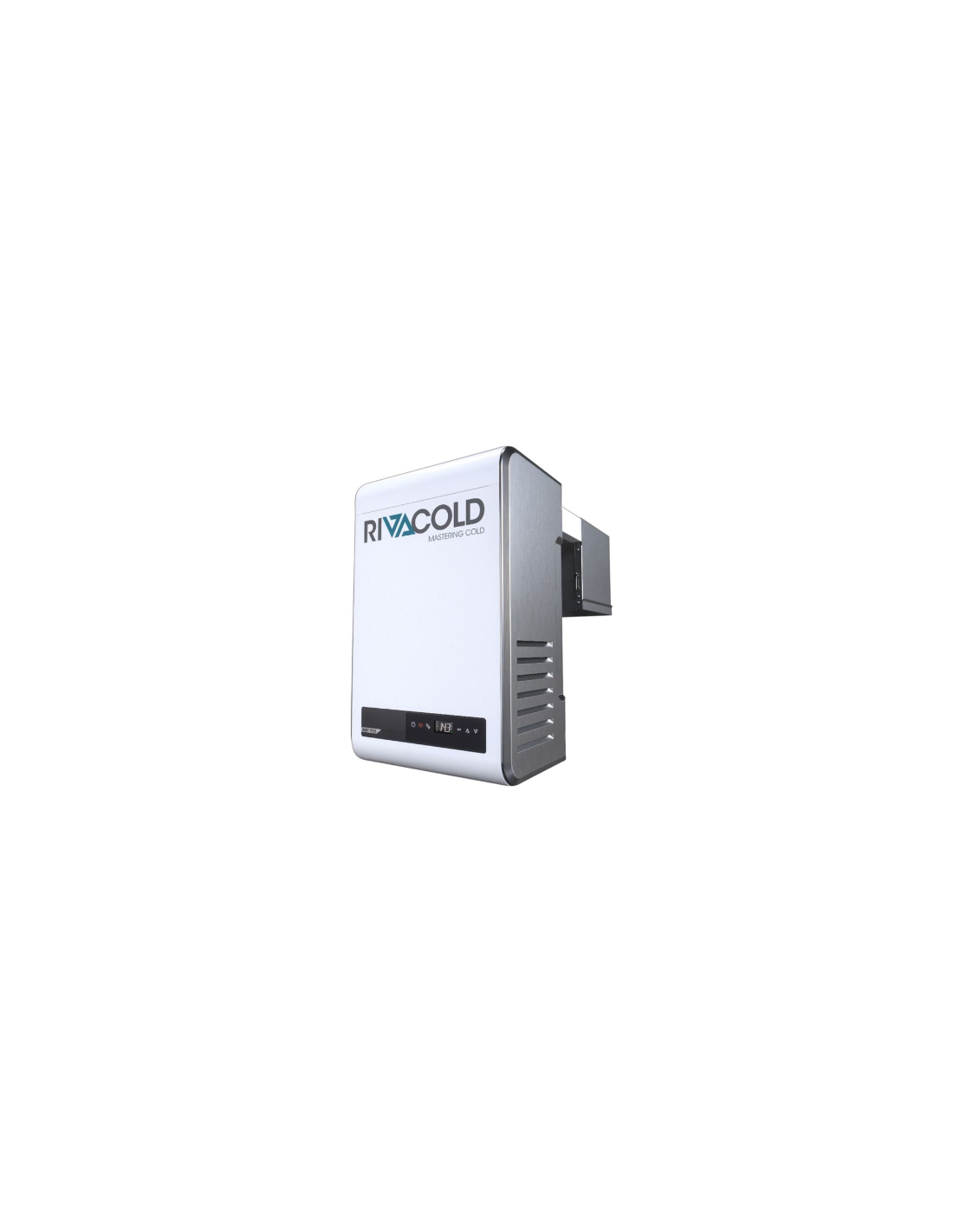

The Rivacold BEWS251LA20P11 is a compact wall-mounted refrigerated monoblock, designed for low-temperature cold rooms (LBP), ideal for professional applications in the food, catering and storage sectors.

It uses the natural refrigerant R290, with low environmental impact and high energy efficiency, with a charge of less than 150 g per circuit, in compliance with current regulations.

The unit is equipped with an EMBRACO hermetic compressor, a high-performance condenser and evaporator with internally grooved tubes, and electronic fans for optimal and silent ventilation.
Hot gas defrosting ensures reliability and continuity of operation even under harsh conditions.

The Riv-olution electronic control, with backlit LED display, capacitive keypad and Bluetooth connectivity, allows intuitive management via APP, with advanced functions such as Smart Defrost and Leak Detector.
It is also ready for integration with BMS systems via Modbus RTU.

The sturdy galvanized sheet metal structure and the easily removable fairing make the monoblock simple to install and maintain.

TECHNICAL DATA SHEET:

• Model: BEWS251LA20P11

• Series: BEWS

• Type: Compact overlapping monoblock

• Mounting: Wall

• Application: LBP (low temperature)

• Expansion: Thermostatic valve

• Exchange: Air

• Refrigerant: R290

• Defrosting: Hot gas

• Noise level: 32.8 dBA (at 10 m)

• PED: 0

COMPRESSOR:

• Number: 1

• Type: Hermetic

• Brand: Embraco

• Power supply: 230V / 1Ph / 50Hz

• Displacement: 27.80 cm³

CAPACITOR:

• Fans: 1

• Fan diameter: 254 mm

• Air flow: 600 m³/h

EVAPORATOR:

• Fans: 1

• Fan diameter: 200 mm

• Air flow: 500 m³/h

• Air throw: 6.5 m

ABSORPTION:

• Power consumption: 910 W

• Rated current: 5.0 A

• Maximum current: 7.4 A

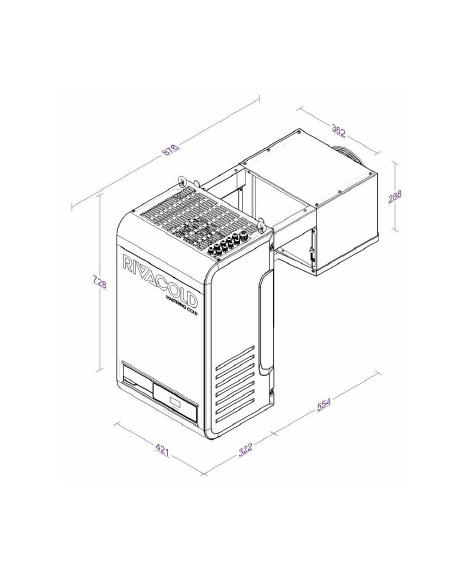

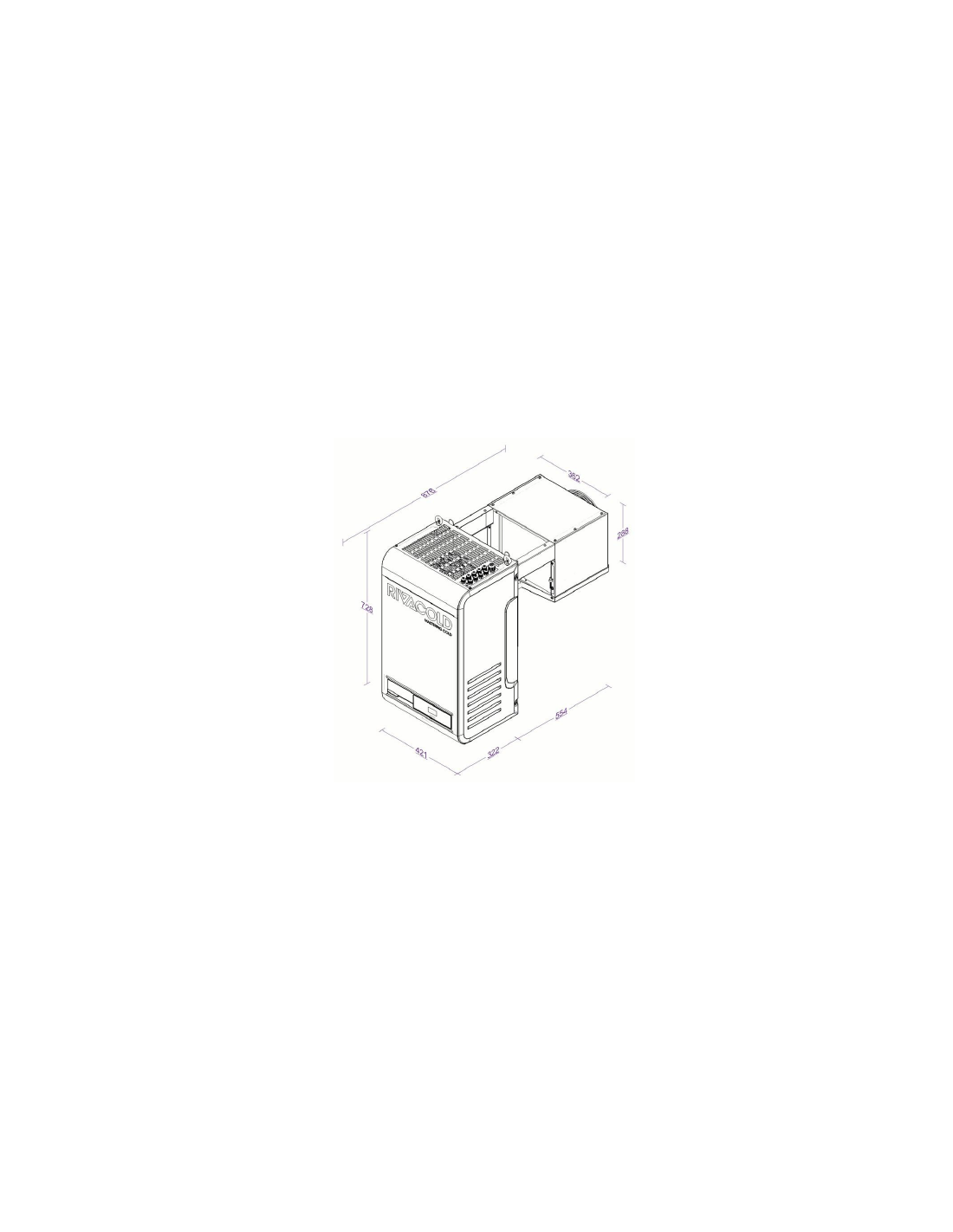

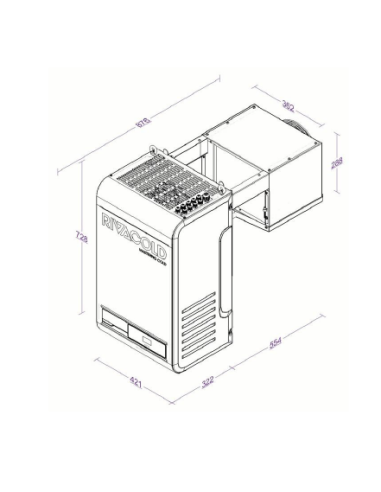

DIMENSIONS AND WEIGHTS:

• Dimensions (WxDxH): 421 × 876 × 728 mm

• Net weight: 54 kg

• Gross weight: 67 kg

• Package dimensions: 500 × 970 × 890 mm

Refrigeration capacity (R290)

• Cooling capacity: from 679 W to 1,346 W

• Capacity at 25°C ambient:

  • -25°C: 828 W

  • -20°C: 987 W

  • -15°C: 1,160 W

  • -10 °C: 1,346 W

• Capacity at 43°C ambient:

  • -25°C: 679 W

  • -20°C: 817 W

  • -15 °C: 966 W

  • -10 °C: 1,126 W

• Indicative cell volume: 2.8 ÷ 31.4 m³

• Application range: LBP – Low Temperature (-25 ÷ -10 °C)

Reference conditions: Ts +20 °C · SC 0 K · SH 100% · Tcond +50 °C
