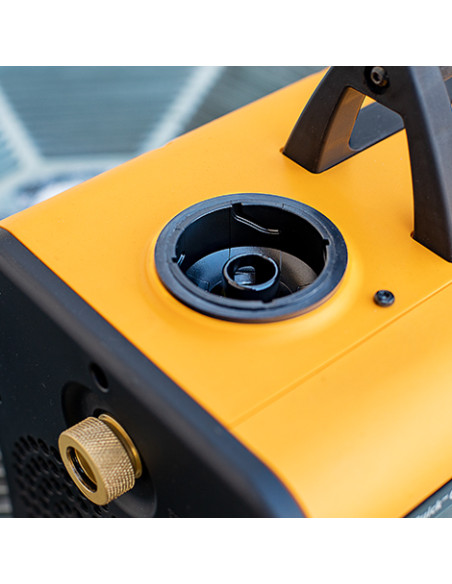

New vacuum pumps with RunQuick™ oil change system - also suitable for A2L refrigerant gases (e.g. R32)

Oil change in seconds with the pump running!

Flow rate: 283 litres/minute (17.0 m3/hour)

4 connections: n° 1 of ¼" (8 mm), n° 2 of 3/8'' (10 mm), n° 1 of 1/2'' (15 mm)

The vacuum pump is equipped with a valve (not mechanical) that opens to atmospheric pressure when the machine stops working, to ensure that oil flow to the system is prevented.

Technical features:
Oil change in seconds with the pump running
Manifold with four in-line connections for easy access
Backlit oil tank to monitor oil and system conditions
Oil anti-return device to prevent the oil from coming into contact with the pressure gauges and the system
Easy to use ballast valve with LED indicator
Waterproof to withstand direct rain
Final vacuum level 2 Pa
Sturdy base to keep the pump upright

Technical specifications:
Extremely high flow rate of 283 liters/minute (17.0 m3/hour - 10 CFM)
Vacuum level: 2 x10(-2) mbar - 0.02 mbar/2 Pa/15 micron
Oil capacity 237 ml (8 oz)
Compatible Oil: Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
Oil backlight: Blue LED
Oil drain: ball valve
Connection dimensions: n° 1 of ¼" (8 mm), n° 2 of 3/8'' (10 mm), n° 1 of 1/2'' (15 mm)
Compressor: rotary vane, two-stage
3/4 HP brushless DC brushless motor, 2500 rpm
Power supply: 190 to 260 VAC @ 50/60 Hz
Nominal current consumption 6.0 A approx.
Final vacuum level at the suction connections: 0.02 mbar/2 Pa/ 15 microns
Dimensions 201mm x 296mm x 406mm
Weight 13.2 kg without oil
Operating Environment -1.1°C to 50°C (30°F to 122°F)
Patent pending
