CUBIC EVAPORATOR RIVACOLD RCMR4350608ED
€6,109.00

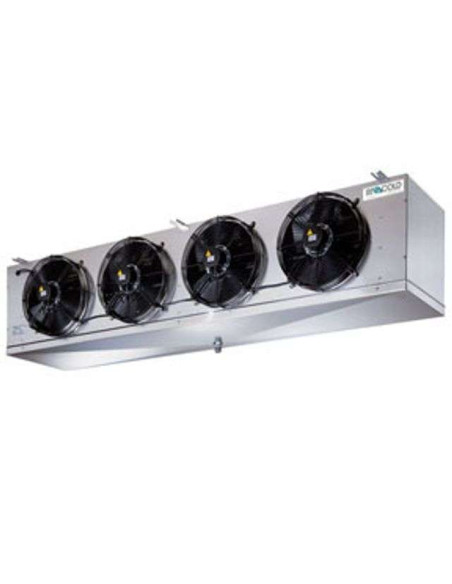

Rivacold RCMR4350608ED Cubic Evaporator for Refrigeration Systems
Description
The RCMR4350608E cubic evaporator of the RCMR series by Rivacold is designed for low pressure applications, ensuring high performance in cold rooms for the preservation of fresh and frozen products. Its configuration with four fans ensures uniform cold distribution, ideal for large environments.
Technical features
- Series: RCMR
- Model: Cubic
- Application: LBP (Low Back Pressure)
- Number of ranks: 6
- Total area: 36.2 m²
- Net weight: 78.7 kg
- Fin pitch: 8 mm
- Circuit volume: 14.3 dm³
- Connections: 28 mm inlet, 42 mm outlet, 1" Gas (33 mm) exhaust
- Fan motor: external rotor with 4 x 350 mm fans
- Power supply: 230V/1Ph/50-60Hz
- Speed: 1400 rpm
- Power consumption: 520 W
- Current consumption: 2.32 A
- Air flow: 8662.5 m³/h
- Air throw distance: 23m
Advantages
- Optimized for low temperatures with efficient cold distribution
- Solid and durable aluminum structure with stainless steel components
- External rotor fans for uniform and constant air flow
- Easy installation thanks to the compact and versatile design
- Complies with safety standards EN 60335-1 and directive 2006/95/EC
