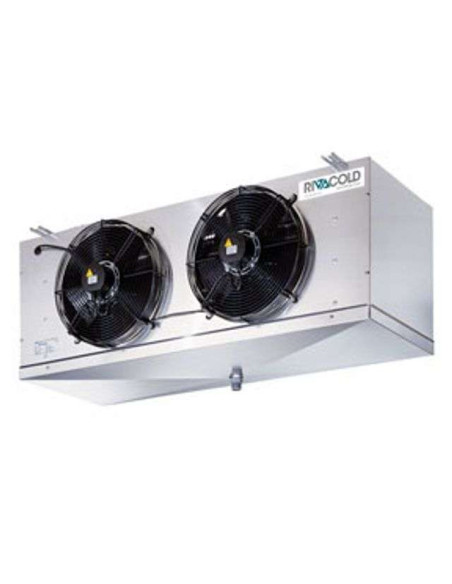

The RCMR2350808 cubic evaporator of the Rivacold RCMR series is designed for low temperature applications, ensuring high efficiency and performance in cold rooms intended for the storage of fresh and frozen products.

Technical features

• Series: RCMR
• Model: Cubic
• Application: LBP (Low Back Pressure)
• Number of ranks: 8
• Total area: 26 m²
• Net weight: 44.4 kg
• Fin pitch: 8 mm
• Circuit volume: 10.6 dm³
• Connections: 16 mm inlet - 5/8" SAE, 28 mm outlet, 1" Gas (33 mm) exhaust
• Fan motor: external rotor with 2 x 350 mm fans
• Power supply: 230V/1Ph/50-60Hz
• Speed: 1400 rpm
• Power consumption: 260 W
• Current consumption: 1.16 A
• Air flow: 4162.5 m³/h
• Air throw distance: 14m

Advantages

• Optimized for low temperatures with an efficient design for long-term storage
• High cooling capacity with uniform cold distribution
• Solid and durable aluminum construction with stainless steel components
• Easy installation thanks to compact size and versatile configuration
• Compliance with safety standards EN 60335-1 and directive 2006/95/EC

Conclusion

The RCMR2350808 evaporator is a reliable choice for low temperature industrial refrigeration applications, combining efficiency and durability for optimal performance over time.

🔗 Find out more and buy on the official website: Polargross - Evaporators Rivacold
