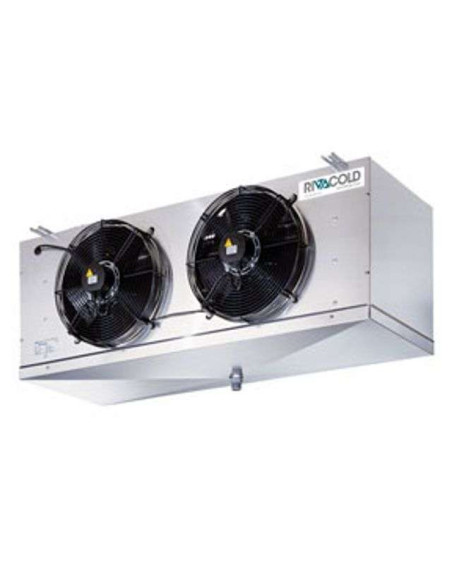

The cubic evaporator RCMR2350406ED of the RCMR series by Rivacold is designed to guarantee high performance in cold rooms intended for the conservation of fresh and frozen products. Thanks to its compact structure and the quality of the materials used, it ensures efficiency, durability and ease of use.

Technical features

• Series: RCMR
• Model: Cubic
• Application: MBP (Medium Back Pressure)
• Number of ranks: 4
• Total area: 16.8 m²
• Defrost: 2800 W
• Net weight: 38.1 kg
• Fin pitch: 6 mm
• Circuit volume: 5.26 dm³
• Connections: 12 mm inlet - 1/2" SAE, 28 mm outlet, 1" Gas (33 mm) exhaust
• Fan motor: external rotor with 2 x 350 mm fans
• Power supply: 230V/1Ph/50-60Hz
• Speed: 1400 rpm
• Power consumption: 260 W
• Current consumption: 1.16 A
• Air flow: 4287 m³/h
• Air throw distance: 14m

Advantages

• Suitable for low temperatures thanks to the defrosting resistors already mounted
• High energy efficiency with external rotor fan motors
• Sturdy aluminum construction with stainless steel screws, washers and nuts
• Easy installation and compact size
• Safety guaranteed according to EN 60335-1 standards and directive 2006/95/CE

Conclusion

The RCMR2350406ED evaporator is a reliable and efficient solution for industrial refrigeration, with advanced technology and high-quality materials for optimal performance and long life.
